USE AND CARE GUIDE

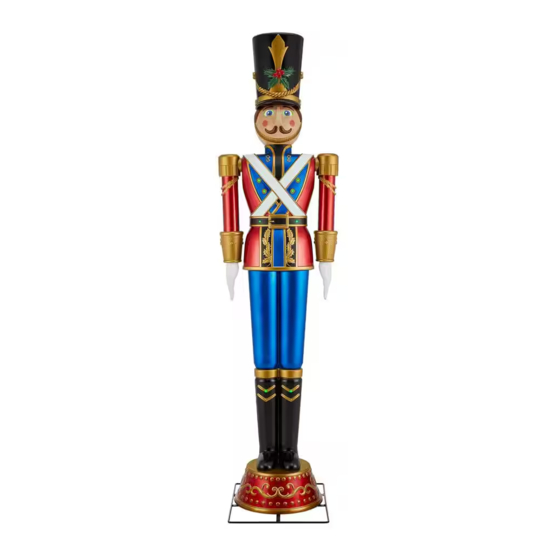

8 FT GIANT-SIZED ANIMATED LED TOY SOLDIER
Questions, problems, missing parts? Before returning to the store, please have a copy of your receipt
ready and email the SVI customer experience team (customerservice@svius.com) within 90 days of
the date of purchase or call Home Accents Holiday Customer Service 8 a.m. - 7 p.m., EST,
Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HOLIDAY (1-855-434-6543)
PARTS LIST
A. Base x 1
B. Lower Poles x 2
C. Platform x 1
D. Lower Boots x 1
E. Upper Poles x 2
F. Upper Boots x 1
G. Legs x 1
H. Body x 1
I. Left Arm x 1
J. Right Arm x 1
K. Head x 1
L. Hat x 1
M. Left Cap x 1
N. Right Cap x 1
O. Stakes x 2
P. Small Parts Bag x 1
Q. Adapter x 1
Input: 120V~60Hz
Output: 5.9V 2A
Wattage: 11.8W
Click
Means It's
Locking Pin
Locked
B
B
Screw
BACK
M6*16mm
LEFT
A
RIGHT
FRONT
NOTE: Throughout the instructions, Right
and Left are relative to the character.
HOMEDEPOT.COM
C
B B
A
1 1
.
IMPORTANT TIPS:
• Ensure that the item's adapter is plugged in at the function control
box and in the wall.
• Ensure that the switch on the function control box is on the desired
setting.
• If not functioning properly (LEDs don't light up, eyes don't blink,
arms don't move), ensure that cables are connected correctly,
according to the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure that the floor or surface that the item sits on is flat and
level.
• Ensure that the volume is not all the way down.
A B C
H I
X4 Screw M5 hex wrench
M6*16mm
(included)
O P
D
B B
C
1 2
.
USA 1011183708
CAN 1001872352
Mexico 214777
Model 24SV24369
D E F
J K L
Q
E
B
2 1
.
G
M N
E
B
Screw
M6*16mm
2 2
.
1/4
