USE AND CARE GUIDE
TM

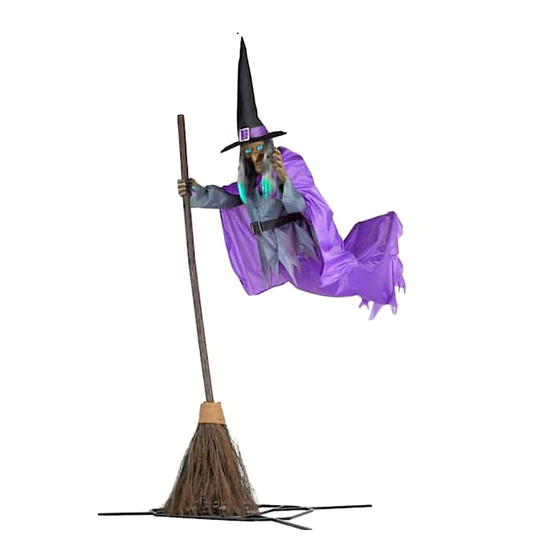

12FT HOVERING WITCH
Questions, problems, missing parts? Before returning to the store, please have a copy of your receipt
ready and email the SVI customer experience team (customerservice@svius.com) within 90 days of
the date of purchase or call Home Accents Holiday Customer Service 8 a.m. - 7 p.m., EST,
Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HOLIDAY (1-855-434-6543)
HOMEDEPOT.COM
PARTS LIST
A. Right Base Half x 1
B. Left Base Half x 1
C. Lower Support Pole x 1
D. Broom Bristles x 1
E. Support Pole x 1
F. Broom Stick Bottom x 1
G. Broom Stick Middle x 1
H. Broom Stick Upper x1
I. Upper Support Pole x 1
J. Broom Stick Cap x 1
K. Right Arm x 1
L. Right Hand x 1
M. Costume x 1
N. Upper Torso Frame and Motor x 1
O. Lower Torso Frame and Control Box x 1
P. Head x 1
Q. Hip Hoop x 1
R. Leg Frames x 2
S. Foam Tubes x 2
T. Left Arm x 1
U. Left Hand x 1
V. Cape x 1
W. Hat x 1
X. Broomstick Top x 1
Y. Base Extensions x 4
Z. Adapter Reciever x 1
Z1. Elastic Band x 1
Z2. Stakes x 4
Z3. Adapter * x 1
Power Adapter * Spec
Input: 120V~60Hz
Output: 5.9V 2.0A
Wattage: 11.8W
NOTE: Throughout the instructions, Right and
Left are from the character's point of view.
LEFT
B
Locking Pin
Click
Means It's
Locked
BACK
A
RIGHT
1
C
2
3
A
I
J
Q
X
NOTE: Remove wing nut from the (A) Right
Base before attaching the (C) Lower
Support Pole. Remove clips from the struts
of the (C) Lower Support Pole before
attaching to the (A) Right Base.
FRONT C
A
B
1.1
NOTE: Place the block of the (Z) Adapter
Receiver in the (D) Broom Bristles with the
remaining cable emerging from the top.
Hang the (Z) Adapter
Receiver inside of the (D)
Broom Bristles on the
frame.
Z
D
1.3
ASSEMBLY REQUIRES AT LEAST 2 ADULTS, 3 ADULTS ARE
RECOMMENDED. PLEASE FOLLOW THE STEP BY STEP GUIDE AND
ENJOY YOUR 12FT HOVERING WITCH!
IMPORTANT TIPS:
• Ensure that item's adapter is plugged in with the screw cap tightened at the
Function Control Box and plugged in the wall.
• Ensure that the switch on the function control box is on the desired setting.
• If not functioning properly (ex: eyes & body don't light up), ensure that cables are
connected to their corresponding cable as shown in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure that the floor or surface that the item sits on is flat and level.
• Ensure that the volume is not all the way down.
• Be sure nothing is blocking the sensor. Witch only speaks on SENSOR setting.
See Operations Instructions page 5 for complete details.
B C
K L M
S
R
Y Z Z
1
D
1.2
NOTE: Attach 2 of
the (Y) Base
Extensions to the
(A) Base as shown
to assist with
assembly.
Z
D
Y
1.4
Canada Item 1001852754
Mexico Item 214789
D E
F
N
U
T
V
Z Z
2 3
D
C
C
2.1
NOTE: While the assembly is leaned onto the
Outer Box, do not apply too much weight onto the
base.
A
Y
2.3
USA Item 1010851068
Model 24SV24648
G
H
O P
W
E
C
2.2
Outer Box
2.4
1/5
