Operating instructions

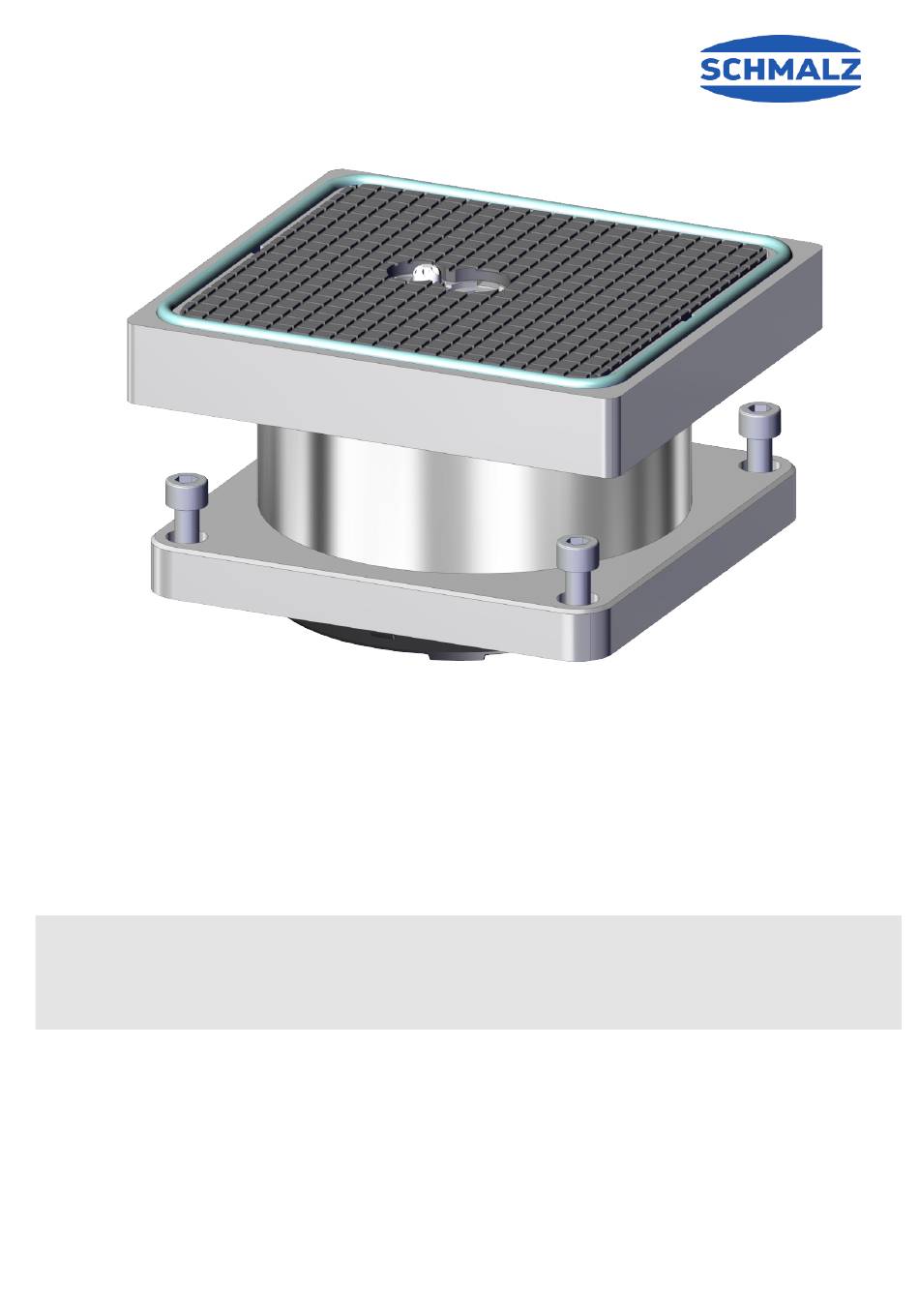

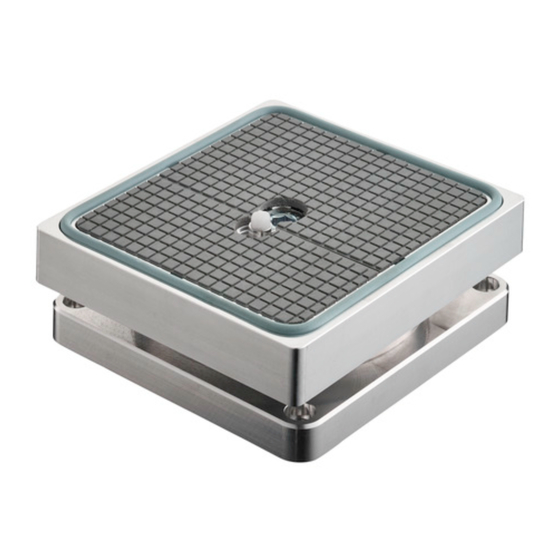

Vacuum Block VCBL-B-HD
Note
The Operating instructions were originally written in German. Store in a safe place for future reference. Subject
to technical changes without notice. No responsibility is taken for printing or other types of errors.
Published by
© J. Schmalz GmbH, 05/24
This document is protected by copyright. J. Schmalz GmbH retains the rights established thereby. Reproduction
of the contents, in full or in part, is only permitted within the limits of the legal provisions of copyright law. Any
modifications to or abridgments of the document are prohibited without explicit written agreement from
J. Schmalz GmbH.
J. Schmalz GmbH · Johannes-Schmalz-Str. 1 · 72293 Glatten, Germany · T: +49 7443 2403-0
schmalz@schmalz.de
EN-US · 30.30.01.04389 · 00 · 05/24
Translation of the original operating instructions
Advertisement
Table of Contents
Related Manuals for Schmalz VCBL-B-HD
Summary of Contents for Schmalz VCBL-B-HD
- Page 1 Any modifications to or abridgments of the document are prohibited without explicit written agreement from J. Schmalz GmbH. J. Schmalz GmbH · Johannes-Schmalz-Str. 1 · 72293 Glatten, Germany · T: +49 7443 2403-0 schmalz@schmalz.de EN-US · 30.30.01.04389 · 00 · 05/24...
-
Page 2: Table Of Contents
Contents 1 Important Information............................... 3 Note on Using this Document.......................... 3 The technical documentation is part of the product .................. 3 Type Plate................................ 3 Symbols................................ 3 2 Fundamental Safety Instructions .......................... 4 Intended Use ............................... 4 Non-Intended Use............................... 4 Personnel Qualifications............................. 4 Warnings in This Document .......................... -
Page 3: Important Information
ð Failure to follow the instructions in these Operating instructions may result in injuries! ð Schmalz is not liable for damage or malfunctions that result from failure to heed these instructions. If you still have questions after reading the technical documentation, contact Schmalz Service at: www.schmalz.com/services... -
Page 4: Fundamental Safety Instructions
2 Fundamental Safety Instructions 2.1 Intended Use The series of vacuum blocks VCBL-B-HD is used for clamping workpieces (optimized for solid wood) as well as other demanding applications such as solid surface materials. It is also suitable for clamping delicate workpieces with a matt or gloss surface on the machining center and is placed on the machine table with specially designed consoles. -
Page 5: Residual Risks
4 Wear protective work shoes (S1). 2.6 Modifications to the Product Schmalz assumes no liability for consequences of modifications over which it has no control: 1. The product must be operated only in its original condition as delivered. 2. Use only original spare parts from Schmalz. -
Page 6: Rotating The Suction Plate
4 Rotating the Suction Plate The central screw is used to mount the suction plate. 1. Using a size 8 Allen key, loosen the screw and un- screw it approx. 1 cm. 2. Raise the suction plate and rotate it in 15° incre- ments. -
Page 7: Technical Data
10.01.12.05397 5.3 Mass Part no. Description Mass 10.01.12.05392 Vacuum block VCBL-B-HD 140x130x74 S-360-15 2,765 g 10.01.12.05393 Vacuum block VCBL-B-HD 128x75x74 S-360-15 TV 1,545 g 10.01.12.05394 Vacuum block VCBL-B-HD 128x60x74 S-360-15 TV 1,345 g 10.01.12.05395 Vacuum block VCBL-B-HD 140x130x48 S-360-15 4,430 g 10.01.12.05396 Vacuum block VCBL-B-HD 128x75x48 S-360-15 TV 2,112 g... -
Page 8: Installation
7 Installation 7.1 Installation Instructions CAUTION Vacuum close to the eye Severe eye injury! 4 Wear eye protection. 4 Do not look into vacuum openings, e.g. suction cups. For safe installation, the following instructions must be observed: • Dirt particles or foreign bodies in the suction plate connections, hoses or pipelines can lead to malfunctions or failure. -
Page 9: Specifications For Use
This procedure should be performed in particular for new workpieces that have never been machined before or for uncertain cases with regard to the holding force. Schmalz assumes no liability for damages resulting from slippage or release of workpieces due to faulty adjustment of machining parameters. -
Page 10: Using The Vacuum Blocks
Closed vacuum system 12 Warranty Schmalz guarantees this system pursuant to our General Terms and Conditions of Sale and Delivery. The same ap- plies to spare parts, provided that these are original parts supplied by us. Wearing parts are not covered by the warranty. -
Page 11: Spare And Wearing Parts
4 Sort and dispose of all components according to the country-specific regulations. For proper disposal, please contact a company specializing in the disposal of technical goods and in- struct the company to observe the applicable disposal and environmental regulations. Schmalz is happy to assist you in finding a suitable company.
