Precor Resolute RSL 606 Assembly Manual
Strength selectorized line prone leg curl
Hide thumbs
Also See for Resolute RSL 606:
- Maintenance manual (4 pages) ,
- Assembly manual (13 pages) ,
- Getting started manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Precor Resolute RSL 606
Summary of Contents for Precor Resolute RSL 606

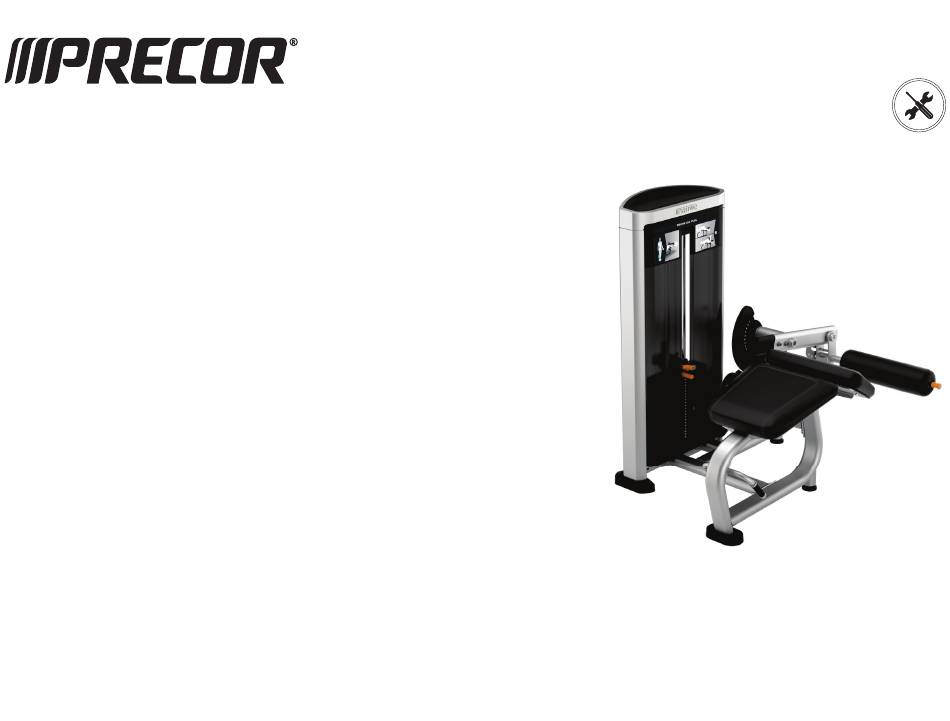

- Page 1 ENGLISH ENGLISH Resolute™ Strength Selectorized Line Prone Leg Curl RSL 606 Assembly Guide...
-
Page 2: Assembly Requirements
Assembly Requirements CAUTION Installation Requirements Required Tools Box cutter Rubber mallet Trademarks ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide... -
Page 3: Parts List
Main frame Seat frame Roller pad Weight labels Ankle pad arm End caps Shaft Roller pad cap rings Bumpers Kick plate Guide rods Retaining ring Hip pad Chest pad ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide... -
Page 4: Frame Assembly
DO NOT tighten fasteners until instructed to do so. Image Hardware Instructions M12 x 130 mm SHCS plate Align to far right hole under pulley. Hand tighten only. step. ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide... -
Page 5: Moving Parts
Gently rock the frame to align. Tighten all M12 fasteners to a torque of 55 ft-lb (75 N-m). Do not tighten the M10 screws installed in step 1 at this time. Moving Parts Image Hardware Instructions end cap ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide... -
Page 6: Seat Assembly
Slide roller pad onto ankle pad arm and secure. Seat Assembly Image Hardware Instructions Attach hip pad to seat frame Attach chest pad to seat frame ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide... -
Page 7: Route The Cable
Route the cable around the pulley and then replace the cable retainer. Tighten to 50 ft-lb (67 N-m) of torque. Finish the Weight Stack Tower Image Hardware Instructions step 1 of the Frame Assembly. guide rods ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide... - Page 8 Secure them to the kick plate. Let the guide rods drop onto the bolts and fully tighten the bolts. Tighten M10 screws to 32 ft-lb (43 N-m) of torque. M10 nylon lock nut ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...
- Page 9 ALL 41 mm 1.61 inch (41mm). be no more than Tighten the locking bolt against the select stem to 50 ft-lb (81 N-m) of torque. ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...
- Page 10 ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...
- Page 11 Install the upper rear and front shrouds . Ensure to hook them M10 x 40 mm SHCS Recommended bolt torque is 25 ft-lb (34 N-m). Securely snap top tray into place. ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...
