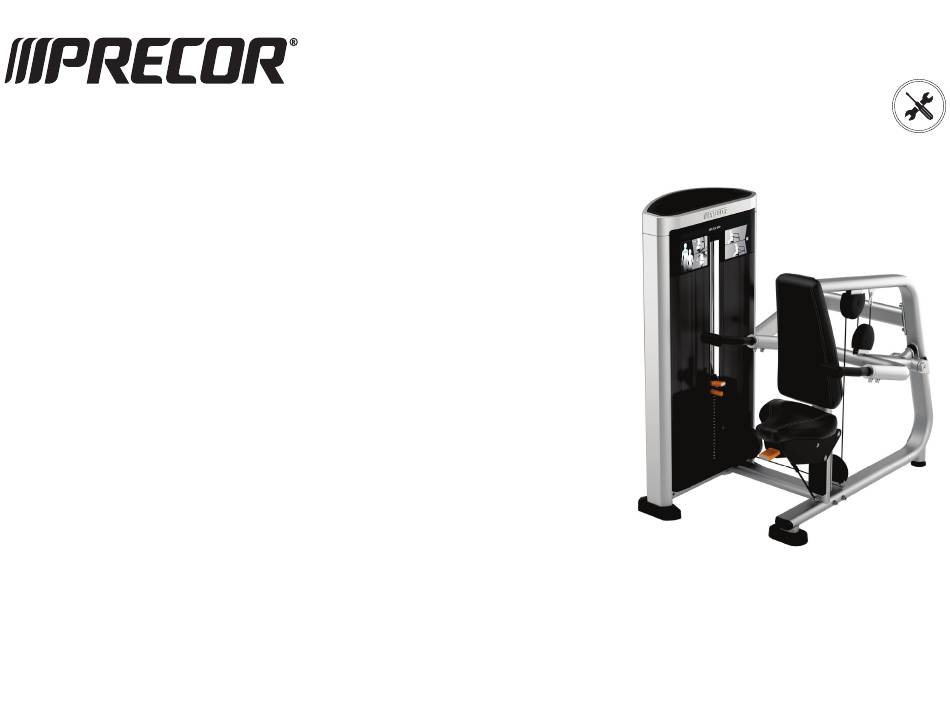

- Page 1 ENGLISH ENGLISH Resolute™ Strength Selectorized Line Seated Dip RSL 215 Assembly Guide...
-
Page 3: Assembly Requirements
Assembly Requirements CAUTION Installation Requirements Required Tools Box cutter Rubber mallet Trademarks ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide... -
Page 4: Parts List
Quantity Main frame Hole plugs Arm frame End caps Bumpers Upper cross brace Back pad Weight labels Kick plate Guide rods Seat pad Weight plates 10 lb (4.5 kg) ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide... -
Page 5: Seat Assembly
Seat Assembly Image Hardware Instructions Attach back pad to main frame CAUTION! hole plugs Attach seat pad to main frame ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide... -
Page 6: Frame Assembly
M12 nylon lock nuts Align to the far right hole under pulley. Insert guide rod fasteners from user side to align the kick plate. Hand tighten only. step. ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide... - Page 7 Gently rock the frame to align. Tighten all M12 fasteners to a torque of 55 ft-lb (75 N-m). Do not tighten the M10 screws installed in step 1 at this time. ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide...
-
Page 8: Moving Parts
Moving Parts Image Hardware Instructions end caps frame. Secure on each side. Tighten to 55 ft-lb (74 N m). Route the Cable Image Hardware Instructions step 1. ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide... - Page 9 1 ley and then replace the cable retainer. tainers. Tighten to 50 ft-lb (67 N-m) of torque. ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide...
- Page 10 Finish the Weight Stack Tower Image Hardware Instructions step 1 of the Frame Assembly. guide rods bumpers top plate assembly user side. ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide...
- Page 11 While plate. Let the guide rods drop onto the bolts and fully tighten the bolts. Tighten M10 screws to 32 ft-lb (43 N-m) of torque. ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide...
- Page 12 At least six turns of the threads on the cable bolt extend into the 1.61 inch (41mm). should be no more than Tighten the locking bolt against the select stem to 50 ft-lb (81 N-m) of torque. ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide...
- Page 13 Repeat for the front middle shrouds Install the upper rear and front shrouds . Ensure to hook them Recommended bolt torque is 25 ft-lb (34 N-m). Securely snap top tray into place. ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide...
-
Page 14: Complete The Assembly
Complete the Assembly equipment. IMPORTANT types. Final Checklist • • • • • • • ©2019 Precor Inc. | Seated Dip RSL 215 | Assembly Guide...
