1.4.

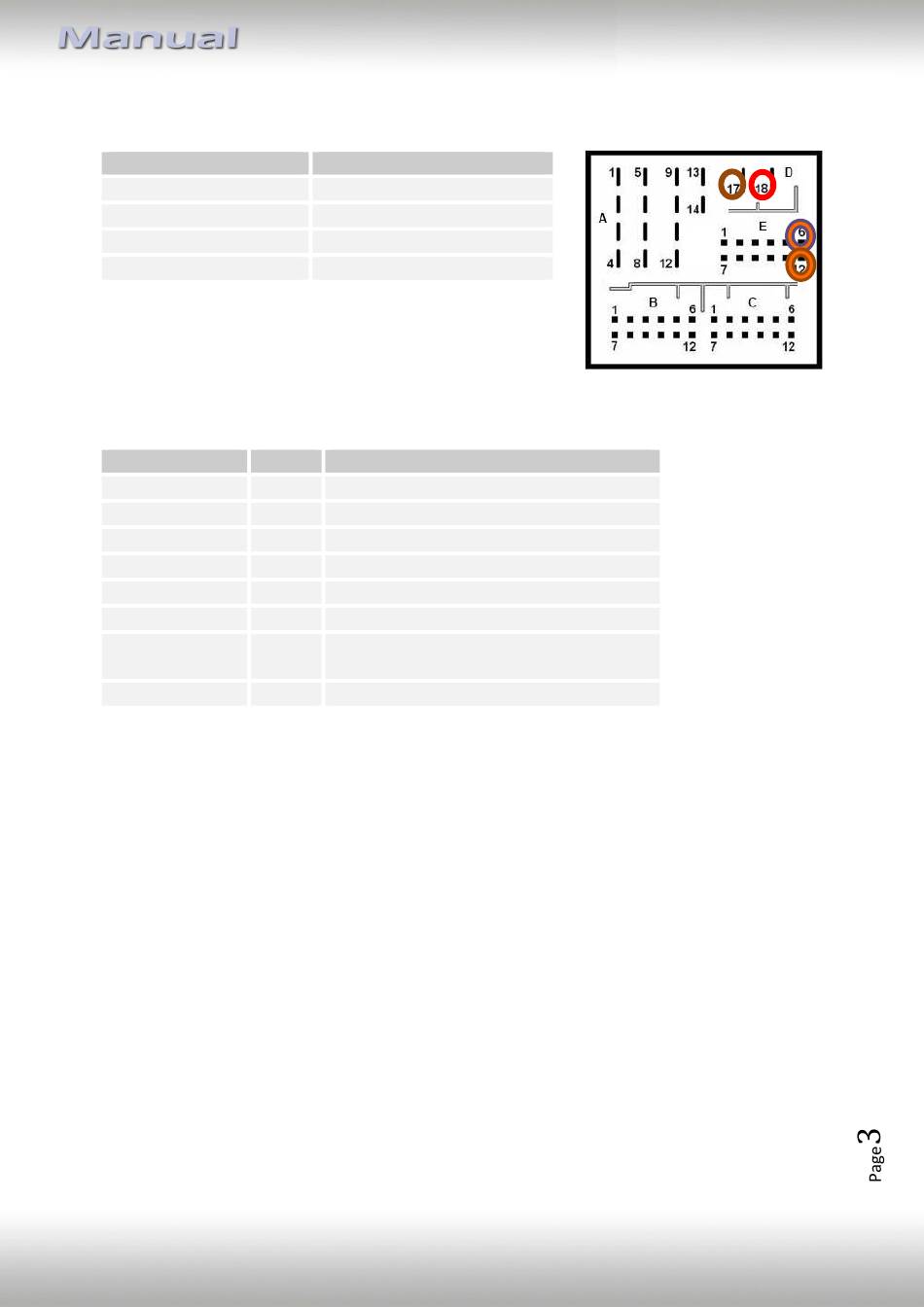

Pin-assignments

Cable colour
● Red
● Brown
●● Orange/Violet
●● Orange/Brown
No liability for vehicle wire colors and pin definition!
Possible changes by the vehicle manufacturer. The given
information must be verified by the installer.
Pin-assignment of the CAN-Box TV-500 (Molex 8pin)
Cable colour Pin-No. Assignment
● Yellow Pin 4
● Blue Pin 3
●● Yellow/Black Pin 8
●● Blue/Black Pin 7
● Red Pin 1
● Black Pin 5
● Green Pin 6
● White Pin 2

2. Installation

Switch off ignition and disconnect the vehicle's battery! If according to factory rules
disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle is
sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a
resistor lead.
Version 05.04.2024
Assignment
+12V permanent Pin 18
Ground Pin 17
CAN HIGH Pin 6
CAN LOW Pin 12
CAN-HIGH – connection to the head-unit
CAN-LOW – connection to the head-unit
CAN-HIGH – connection to the vehicle
CAN-LOW – connection to the vehicle
+12V permanent
Ground
Activation of the video-in-motion function
(+12V = TV-free activated)
Trigger output (+12V DC 500mA)
TF-MIB
