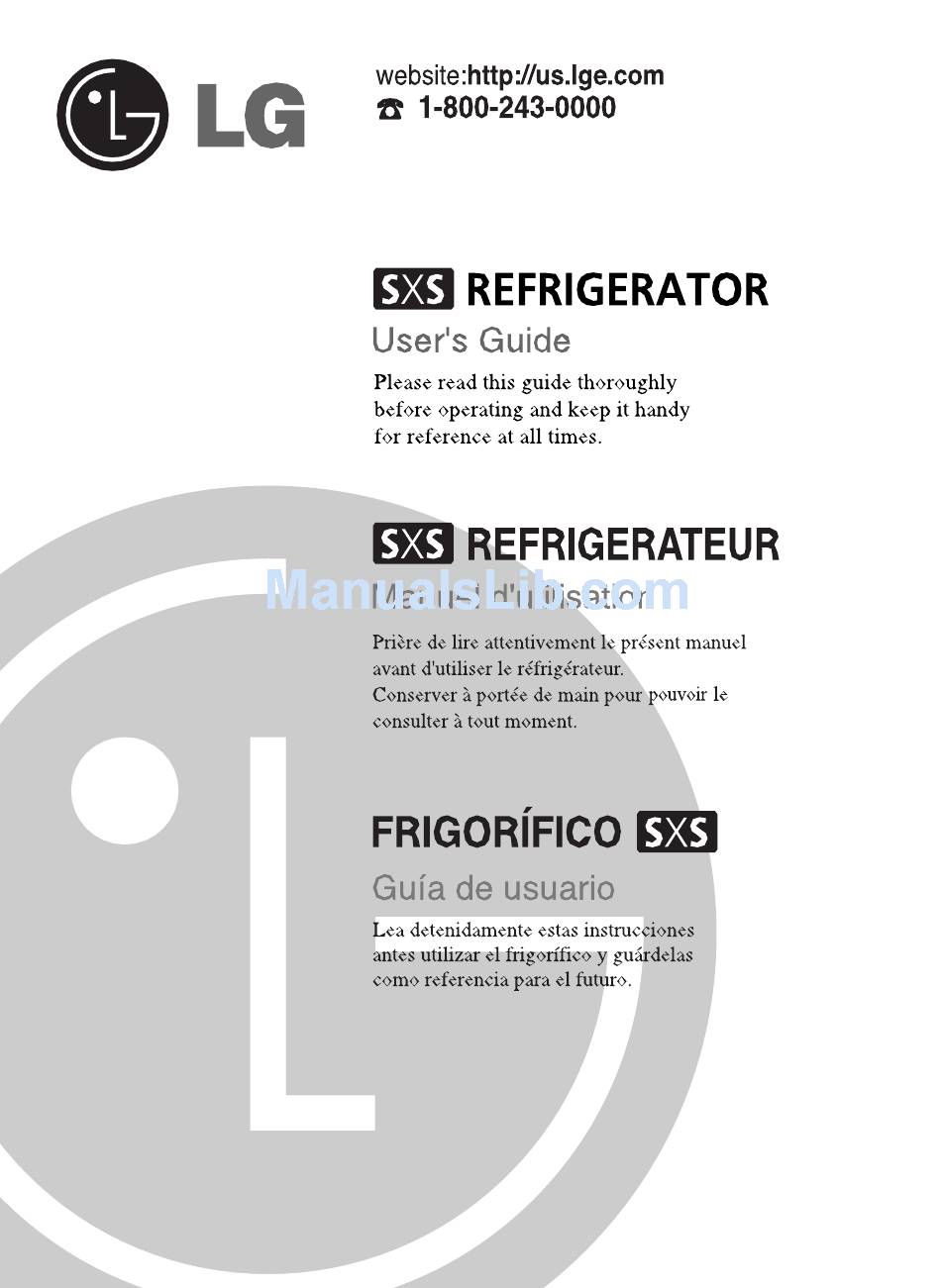

LG LSC27990TT User Manual

Sxs refrigerator
Hide thumbs

Advertisement

Quick Links

Download this manual See also: Service Manual, User Manual
Table of Contents

Advertisement

Table of Contents
loading

  Also See for LG LSC27990TT

LG LSC27990TT User Manual
LG LSC27990TT User Manual 191 pages
LG LSC27991TT Guía Del Usuario
LG LSC27991TT Guía Del Usuario 137 pages
LG LSC27990TT Service Manual
LG LSC27990TT Service Manual 106 pages

  Related Manuals for LG LSC27990TT

  Summary of Contents for LG LSC27990TT

  • Page 2 Table of Contents Introduction Installation Operation Suggestion on food storage Care and maintenance...

  • Page 3: Important Safety Instructions

    Introduction Entry The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.

  • Page 4: Identification Of Parts

    Shelf Door Rack Lamp Shelf Shelf Snack Drawer Lamp Door Rack Vegetable Drawer Drawer OptiFresh Room Door Rack Door Rack Model LSC27990TT Lower Cover NOTE Parts, features, and options vary by model. Your model may not include every option. •...

  • Page 5: Where To Install

    Installation Where to install Unstable installation may cause vibration and Strong and even floor noise. If the floor to install the refrigerator on is not even, make the refrigerator level by rotating the height adjusting screw. AECDJ More than 2"(5 cm) A proper To ensure proper air circulation around the to back...

  • Page 6: Door Removal

    Installation Door removal Warning Electric Shock Hazard Disconnect electrical supply to refrigerator before installing. Failure to do so could result in death or serious injury. If your entrance door is too narrow for the refrigerator to pass through, remove the refrigerator Lower Cover door and pass the refrigerator laterally.

  • Page 7: Water Supply Installation

    Installation Pass the refrigerator laterally through the access Pass the refrigerator door as shown in the right figure. Install the freezer and refrigerator compartment doors Mount them in the reverse sequence of removal after they pass through the access door. Water supply installation Before Automatic icemaker operation needs water pressure of 21~121 psi (1.5~8.5...

  • Page 8: Water Connection Instruction Guide

    Installation Water connection instruction guide Connecting Read all directions carefully before you begin. the refrigerator to a water source Warning Connect to potable water supply only. IMPORTANT • If operating the refrigerator before installing the water connection, turn the icemaker to the OFF position to prevent operation without water.
  • Page 9 Installation Connect 1. Unplug the refrigerator or disconnect power. the tubing to 2. Turn OFF the main water supply. Turn on the nearest faucet to relieve the water line pressure on the line. It may help to open an outside faucet to allow the water to drain from the line in the house.

  • Page 10: Connect Tubing To Refrigerator

    Installation Connect the tubing to Before making the connection to the refrigerator, be sure the refrigerator the refrigerator power cord is not plugged into the wall outlet. If your refrigerator does not have a water filter, we recommend installing • one.

  • Page 11: Height Adjustment

    Installation Height adjustment If the freezer Level them by inserting a flat ( - type) driver into the groove of the left height adjusting screw and rotating it clockwise ( ). compartment door is lower than the refrigerator compartment door If the freezer Level them by inserting a flat ( - type) driver into the groove of the right height compartment door...

  • Page 12: External Equipment Connections

    Installation External Equipment Connections Antenna or Cable Service without a Cable Box Connections Antenna Connection For optimum picture quality, adjust antenna direction if needed. Main Power Multi-family Dwellings/Apartments Antenna jack (Connect to wall antenna socket) wall antenna socket Bronze Wire RF coaxial wire (75 ohm) VHF antenna Turn clockwise to tighten.

  • Page 13: Adjusting The Temperatures And Functions

    Operation Setup When your refrigerator is first installed, allow it to stabilize at normal operating temperatures 2~3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting. Adjusting the temperatures and functions About defective pixels This LCD display contains hundreds of thousands of individual pixels.
  • Page 14 Operation Temperature - You can adjust the freezer and refrigerator temperature. Refrigerator/Freezer Press the TEMPERATURE button. Using the button, select the desired refrigerator. Select the temperature using the button. Refrigerator temperature options: 46, 41, 37, 34, or 32˚F Freezer temperature options: 7, 1, -2, -5, or -8˚F Press the SELECT button.
  • Page 15 Operation Dispenser - You can select from Crush, Water or Cube options. Crush/Water/Cube - When the dispenser is in use, the active option is indicated in the standby screen. - Crush , Water , Cube Press the DISPENSER button. Select the desired option using buttons.
  • Page 16 Operation Menu You can select from Information, Gourmet Recipes, Refrigerator, Settings, and Photo Album function. Press the MENU button. Select the menu using the buttons. Press the SELECT button. You will see the detail menu.
  • Page 17 - Reception of weather forecast information received and displayed on the screen is subject to vary depending on your region and location of refrigerator. - Thereby LG does not guarantee and will not be held responsible for accuracy of the weather information.
  • Page 18 Operation ❐ Anniversary Reminder - Register the anniversary date. Select the Anniversary reminder using the button. < To set a new date > Press the button to select Anniversary Reminder. Select the month using the button. Press the button and then select the date using the button.
  • Page 19 Operation < To view the anniversary list > Press the button to select Anniversary Reminder. Press the button You can check the detail menu using to select List. button. ❐ Data & Time Setting To set the date and time. Press the button to select Data &...
  • Page 20 Operation ❐ Timer To set the alarm. Press the button to select Timer. Select the time using Press the button button. to select Save. Return to the Information menu. - The alarm will go off at the set time, and the timer image will be displayed in the screen.
  • Page 21 Operation Select the recipe after selecting the menu category of dish. Gourmet Recipes Select the menu category using the button. You can select the dish Press the button using the button. to select More. You can select the detail menu Press the button using the...
  • Page 22 Operation You can select from Filter reset, Door alarm, Dispenser light, Manual, and Service Call Refrigerator functions. ❐ Filter Reset Reminds you when to replace the filter. < When the filter exchange date is still not due. > Press the button to select Filter Reset.
  • Page 23 Operation < When the filter exchange date is overdue. > Press the button to select Filter Reset. Press the button Press the SELECT button. to select Reset. Return to Refrigerator menu. - You will see a message notifying you how long it will be before you need to change the filter.

  • Page 24: Door Alarm

    Operation ❐ Door Alarm This is the function of notifying you every 30 seconds that the refrigerator door is open for more than 1 minute. You can turn the door alarm on or off. Press the button to select Door Alarm. Press the button Press the...
  • Page 25 Operation ❐ Dispenser Light This function controls the LED lamp located on the dispenser. Press this icon turn the dispenser light on or off. Press the button to select Dispenser Light. Press the button Press the button to select Save. to select On.
  • Page 26 Operation ❐ Owner’s Manual You can select from Key Guide, Tem. Adjustment, Child Lock, Weather Forecast, Proper Food Storage, Fridge Maintenance Guide, Freezer Maintenance Guide or Elimination of Odor function. Press the button to select Owner’s Manual . Select the menu using the button.
  • Page 27 Operation 1. Key Guide 2. Tem. Adjustment Press the You will see the detail Press the You can check the button to select menu. button to select detail menu using the Key Guide. Tem. Adjustment. button. 3. Child Lock 4. Weather Forecast Press the You can check the Press the...
  • Page 28 Operation ❐ Service Call Info. This shows the number to call for service in the US or Canada. Press the button to select Service Call Info. You will see the detail menu. You can select from Display Image, Display Theme, Power Saver, Settings Screen Backlight/Button Sound, or ˚C/˚F Setting function.
  • Page 29 Operation ❐ Display Image You can select the standby screen setting. Press the button Select the desired photo using to select Display Image. button. Press the button to select Preview. You can preview other Press the button to select Save. standby screens using button.
  • Page 30 Operation ❐ Power Saver You can select the Power Saver function. < When Power Saver function is selected > - When selecting [Use of Power Saver], the LCD screen backlight turns off after eclipse of designated time. Press the button Press the button to select Use.
  • Page 31 Operation ❐ Screen Backlight/Button Sound - You can adjust the screen brightness. - When selecting the button sound, you can turn the button sound on or off. Press the button to select Screen Backlight/Button Sound. Select the brightness value using button.
  • Page 32 Operation You can register a photo or setup the standby screen. Photo Album < When setting to the standby screen > Select the desired photo using button. Press the button Press the button to to select Display Image. select Save. Press the button to select Preview.
  • Page 33 Operation < When deleting > Select the desired photo using button. Press the button to select Press the button to Delete. select Save. Press the button to select Yes. Return to the standby screen. < When deleting all> Press the button to select Delete All.
  • Page 34 Operation < When registering the photo > When you connect the USB Memory Stick to the USB port, it reads the photo data and adds the album list. < When using USB Memory Stick > When selecting Photo Album and then connecting the USB Memory Stick, Import item is activated.
  • Page 35 Operation Lock can be used to disable the buttons and prevent tamperng with the settings. Lock Select Lock using the buttons. - Lock or unlock buttons and dispenser by pressing down the button for 3seconds. - When lock is selected, the dispenser and buttons will be locked and will not operate. - When lock is selected, the lock icon will appear on the screen.
  • Page 36 Operation Other functions Ambient Temperature Display Window. Temperature is displayed only between 16°F ~ 120°F (-9°C ~ 49°C). Temperature less than 15°F (-9°C) is indicated with LO and temperature more than 121°F (49°C) is indicated with HI. Diagnostic (failure detection) function The diagnostic function automatically detects failure when failure is found in product during the use of refrigerator.

  • Page 37: Humidity Control In The Vegetable Compartment

    Operation Shelf Shelf height The refrigerator compartment shelves are adjustable so you can locate them according adjustment to your needs. Slide Shelf Pull the shelf ahead and take off it while lifting both front and rear part. Fixed Shelf, Folding Shelf Lightly lift up the front part of shelf to pull it ahead and then take off it while lifting the rear part of shelf.

  • Page 38: Optifresh Temperature Bin

    Operation OptiFresh temperature bin Method to use You can select the optimum temperature to store some types of foods. - Vegetables, fruits, cold storage items requiring humidity maintenance can be stored under optimal condition by pressing the button. OptiFresh Crisper Activate If you open the refrigerator door, an indicator lamp shows the status of the OptiFresh.

  • Page 39: Location Of Foods

    Suggestion on Food Storage Location of foods (Refer to Identification of Parts, page 4.) Snack drawer Store small foods such as bread, snacks, etc. Store various frozen foods such as meat, fish, Freezer compartment ice cream, frozen snacks, etc. shelf Store small packed frozen food.

  • Page 40: Storing Foods

    Suggestion on Food Storage Storing foods Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor. Do not store food which spoils easily at low temperatures, such as bananas and melons.

  • Page 41: How To Remove And Replace Parts

    Care and Maintenance How to remove and replace parts NOTE Dismantling is done in the reverse sequence of assembly. • Be sure to unplug the power plug before dismantling and assembly. Never apply severe force to dismantle parts. Parts may be damaged. Freezer To remove the lamp cover, separate the shelf compartment...
  • Page 42 Care and Maintenance To remove the lamp cover, pull the lamp Upper lamp in refrigerator cover forward while pressing the bottom compartment side of the lamp cover upward. Turn the bulb counterclockwise. Use a 40-watt bulb (max.) which can be purchased at a service center.
  • Page 43 Care and Maintenance Filter We recommend replacing the filter when the replacement water filter indicator light turns on or your water dispenser or ice maker decreases noticeably. After changing the water filter cartridge, reset the water filter status display and indicator light by pressing and holding the BUTTON for 3 seconds.

  • Page 44: General Information

    Care and Maintenance General information During average length vacations, you will probably find it best to leave the refrigerator Vacation time in operation. Place freezable items in freezer for longer life. When you plan to store the refrigerator, remove all food, disconnect the power cord, clean the interior thoroughly, and block the doors open to prevent mold and mildew.

  • Page 45: Troubleshooting

    Care and Maintenance Troubleshooting Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Occurrence Possible Cause Solution Normal Operations Refrigerator...
  • Page 46 Care and Maintenance Occurrence Possible Cause Solution Refrigerator Thermostat is keeping the refrigerator This is normal. The Refrigerator goes on compressor at a constant temperature. and off to keep the temperature constant. does not run. Temperatures are too cold Temperature in the Adjust the freezer control to a warmer Freezer control is set too cold freezer is too cold...
  • Page 47 Care and Maintenance Possible Cause Solution Occurrence Sound and Noise Louder sound Today’s refrigerators have increased It is normal for sound levels to be higher. levels when storage capacity and maintain more Refrigerator is on. even temperatures. Louder sound Refrigerator operates at higher pressures This is normal.
  • Page 48 Care and Maintenance Occurrence Possible Cause Solution Odors in Refrigerator Clean interior with sponge, warm water, Interior needs to be cleaned. and baking soda. Be sure the soda is completely dissolved so it will not act as an abrasive compound. Cover food completely.
  • Page 49 Care and Maintenance Occurrence Possible Cause Solution Ice has melted and frozen around auger Remove ice storage bin, and thaw and the Dispenser will not dispense due to infrequent use, temperature contents. Clean bin, wipe dry, and replace ice. fluctuations, and/or power outrages. in proper position.
  • Page 50 LG ELECTRONICS, INC. LG REFRIGERATOR LIMITED WARRANTY - USA...
  • Page 52 REFRIGERATOR User’s Guide Please read this guide thoroughly before operating and keep it handy for reference at all times. REFRIGERATEUR (TV) Manuel d’utilisation Prière de lire attentivement le présent manuel avant d’utiliser le réfrigérateur. Conserver à port ée de main pour pouvoir le consulter à...
