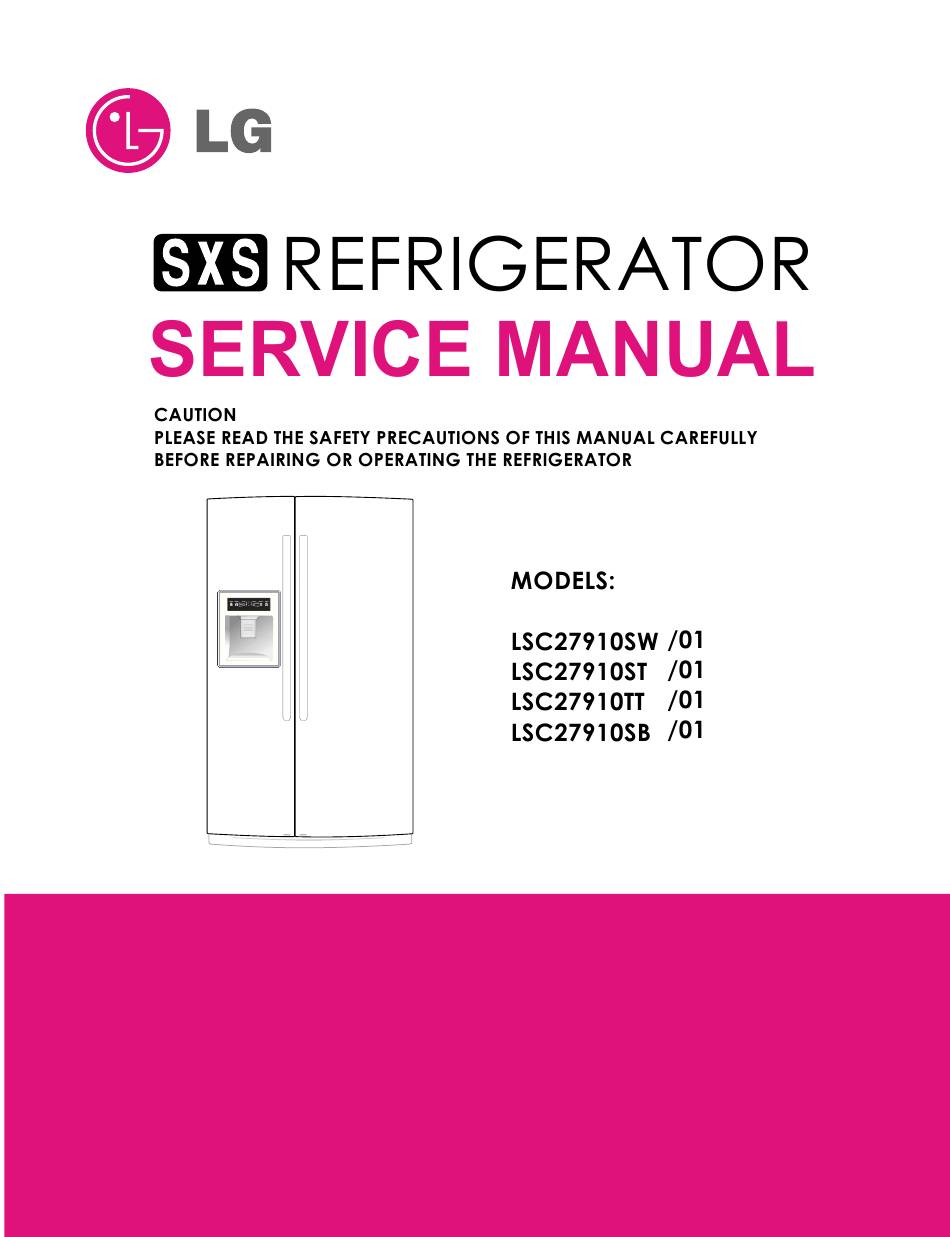

  • Page 1 https://appliancetechmanuals.com...
  • Page 2 https://appliancetechmanuals.com ECN (Engineering Change Number) Rev.01 Change Base Compressor (due to Back Prone Loading transportation) Items related to this change: Damper,Compressor (312A) • Stopper,Compressor (314A) • Base Assembly,Compressor (315A) •...
  • Page 3 https://appliancetechmanuals.com...
  • Page 4 https://appliancetechmanuals.com...
  • Page 5 https://appliancetechmanuals.com...
  • Page 6 https://appliancetechmanuals.com...
  • Page 7 https://appliancetechmanuals.com...
  • Page 8 https://appliancetechmanuals.com...
  • Page 9 https://appliancetechmanuals.com...
  • Page 10 https://appliancetechmanuals.com...
  • Page 11 https://appliancetechmanuals.com...
  • Page 12 https://appliancetechmanuals.com...
  • Page 13 https://appliancetechmanuals.com...
  • Page 14 https://appliancetechmanuals.com...
  • Page 15 https://appliancetechmanuals.com...
  • Page 16 https://appliancetechmanuals.com...
  • Page 17 https://appliancetechmanuals.com...
  • Page 18 https://appliancetechmanuals.com...
  • Page 19 https://appliancetechmanuals.com...
  • Page 20 https://appliancetechmanuals.com...
  • Page 21 https://appliancetechmanuals.com...
  • Page 22 https://appliancetechmanuals.com...
  • Page 23 https://appliancetechmanuals.com...
  • Page 24 https://appliancetechmanuals.com...
  • Page 25 https://appliancetechmanuals.com...
  • Page 26 https://appliancetechmanuals.com...
  • Page 27 https://appliancetechmanuals.com...
  • Page 28 https://appliancetechmanuals.com...
  • Page 29 https://appliancetechmanuals.com...
  • Page 30 https://appliancetechmanuals.com...
  • Page 31 https://appliancetechmanuals.com...
  • Page 32 https://appliancetechmanuals.com...
  • Page 33 https://appliancetechmanuals.com...
  • Page 34 https://appliancetechmanuals.com...
  • Page 35 https://appliancetechmanuals.com...
  • Page 36 https://appliancetechmanuals.com...
  • Page 37 https://appliancetechmanuals.com...
  • Page 38 https://appliancetechmanuals.com...
  • Page 39 https://appliancetechmanuals.com...
  • Page 40 https://appliancetechmanuals.com...
  • Page 41 https://appliancetechmanuals.com...
  • Page 42 https://appliancetechmanuals.com...
  • Page 43 https://appliancetechmanuals.com...
  • Page 44 https://appliancetechmanuals.com...
  • Page 45 https://appliancetechmanuals.com...
  • Page 46 https://appliancetechmanuals.com...
  • Page 47 https://appliancetechmanuals.com...
  • Page 48 https://appliancetechmanuals.com...
  • Page 49 https://appliancetechmanuals.com...
  • Page 50 https://appliancetechmanuals.com...
  • Page 51 https://appliancetechmanuals.com...
  • Page 52 https://appliancetechmanuals.com...
  • Page 53 https://appliancetechmanuals.com...
  • Page 54 https://appliancetechmanuals.com...
  • Page 55 https://appliancetechmanuals.com...
  • Page 56 https://appliancetechmanuals.com...
  • Page 57 https://appliancetechmanuals.com...
  • Page 58 https://appliancetechmanuals.com...
  • Page 59 https://appliancetechmanuals.com...
  • Page 60 https://appliancetechmanuals.com...
  • Page 61 https://appliancetechmanuals.com...
  • Page 62 https://appliancetechmanuals.com...
  • Page 63 https://appliancetechmanuals.com...
  • Page 64 https://appliancetechmanuals.com...
  • Page 65 https://appliancetechmanuals.com...
  • Page 66 https://appliancetechmanuals.com...
  • Page 67 https://appliancetechmanuals.com...
  • Page 68 https://appliancetechmanuals.com...
  • Page 69 https://appliancetechmanuals.com...
  • Page 70 https://appliancetechmanuals.com...
  • Page 71 https://appliancetechmanuals.com...
  • Page 72 https://appliancetechmanuals.com...
  • Page 73 https://appliancetechmanuals.com...
  • Page 74 https://appliancetechmanuals.com...
  • Page 75 https://appliancetechmanuals.com...
  • Page 76 https://appliancetechmanuals.com...
  • Page 77 https://appliancetechmanuals.com...
  • Page 78 https://appliancetechmanuals.com...
  • Page 79 https://appliancetechmanuals.com...
  • Page 80 https://appliancetechmanuals.com...
  • Page 81 https://appliancetechmanuals.com...
  • Page 82 https://appliancetechmanuals.com...
  • Page 83 https://appliancetechmanuals.com...
  • Page 84 https://appliancetechmanuals.com...
  • Page 85 https://appliancetechmanuals.com...
  • Page 86 https://appliancetechmanuals.com...
  • Page 87 https://appliancetechmanuals.com...
  • Page 88 https://appliancetechmanuals.com...
  • Page 89 https://appliancetechmanuals.com #EV# 10. EXPLODED VIEW FREEZER DOOR 200A 203A 201A 241F 244A 212J 241G 241G 241G 243A -88-...
  • Page 90 https://appliancetechmanuals.com #EV# EXPLODED VIEW REFRIGERATOR DOOR 230A 233A 231A 212G 241K 241H 241H 244A 212J 241J 241C 243B -89-...
  • Page 91 https://appliancetechmanuals.com #EV# EXPLODED VIEW FREEZER COMPARTMENT 281A 281C 406A 271B 271A 330B 405G 404A 332A 405A 329A 610E 903E 316B 409A 301A 158C 128E 128F 149A 401A 149A 149A 281G 106A 418A 332B 103C 319B 136A -90-...
  • Page 92 https://appliancetechmanuals.com #EV# EXPLODED VIEW REFRIGERATOR COMPARTMENT 140A 281B 2 2 8 8 1 1 D D 406A 271B 271C 128G 141A 611B 140B 128H 120B 120A 903D 611E 170A 412C 610E 140A 409A 604H 158A 128J 161A 281K 128K 281H 161B 151A 106A...
  • Page 93 https://appliancetechmanuals.com #EV# EXPLODED VIEW ICE &WATER PARTS 625A 622B 616E 616D 627D 627A 412A 619A 612A 612C 612B 600A 131A 607A 149D 602A 128L 600B 131C 406D 149E 125A 303B 610A 412B 614A 110B 621B 606A -92-...
  • Page 94 https://appliancetechmanuals.com #EV# EXPLODED VIEW MECHANICAL COMPARTMENT SVC KIT COMPRESSOR 308A 307B 309A 310A 412D 501F 419B 307A 314A 103B 411A 410G 410H 501A 308A 310A 103A 309A 501K 412D 304A 316A 307A 419B 314A 317A 328A 323B 318A 105A 312A 319C 329C 405C...
  • Page 95 https://appliancetechmanuals.com #EV# EXPLODED VIEW DISPENSER PARTS 278A 161C 113E 282G 405H 113F 617A 279B 501B 409B 279A 281F 278G 276B 276A 280A -94-...
  • Page 96 https://appliancetechmanuals.com #EV# SERVICE KITS Service Kits were created in order to facilitate to technician the way to replace previous components that due to changes for structure, material o improves, can not be used individually. Please refer to next table, and identify it in your exploded view. I nclude Loc No Part No.
  • Page 97 https://appliancetechmanuals.com...
