Summary of Contents for Stahls Hotronix MAXX CLAM

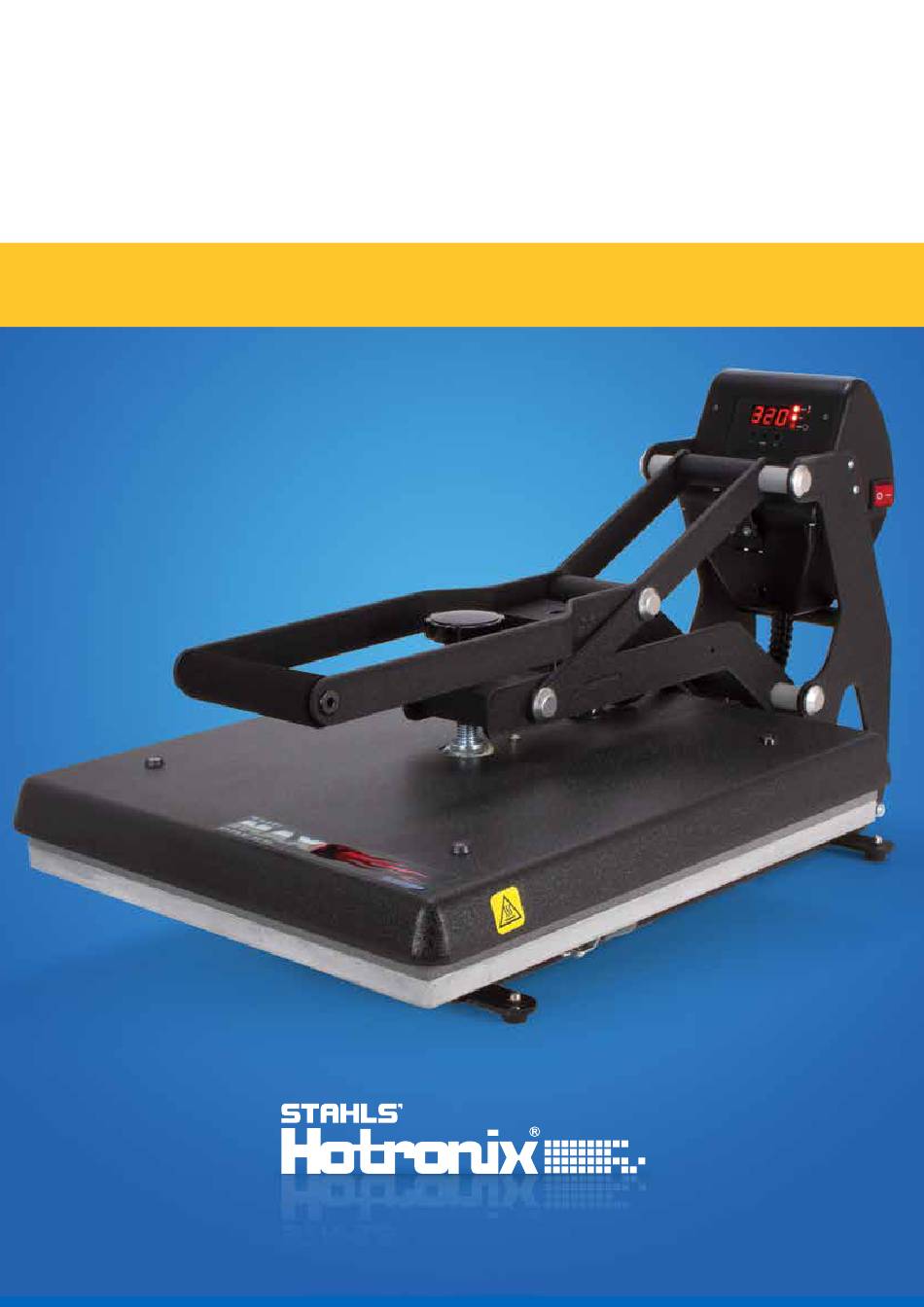

- Page 1 DIGITAL CLAM MAXX CLAM ® OPERATOR’S MANUAL Available models: MAXX Clam ® 28 x 38 cm, 38 x 38 cm, 40 x 50 cm (shown)
-
Page 2: Safety Instructions
HOTRONX ® Safety Instructions MAXX CLAM ® When using your heat press, basic precautions should always be followed, including the following: 1. Read all instructions. 2. Use heat press only for its intended use. 3. To reduce the risk of electric shock, do not immerse the heat press in water or other liquids. 4. -
Page 3: Table Of Contents
Table Of Contents Safety Instructions Machine View Control Panel Guide Operating Instructions 6–8 Connecting the System Start Up/Shut Down Adjusting Temperature Adjusting Time Adjusting Pressure Printing/Pressing Electrical Schematic Parts Location Guide Replacement Parts List Contact WWW.STAHLSASIA.COM... -
Page 4: Machine View
HOTRONX ® Machine View MAXX CLAM ® EIN/AUS Druckeinstellknopf LED Display Handgriff Heizplatte Bodenplatte Netz- anschluss Platten Schnell- Ansicht von unten Rückansicht der Presse... -
Page 5: Control Panel Guide
Control Panel Guide Temperature Indicator Digital Display Set Indicator Time Indicator Decrease Increase Mode Select WWW.STAHLSASIA.COM... -
Page 6: Operating Instructions
HOTRONX ® Operating Instructions MAXX CLAM ® Connecting the System Start Up/Shut Down Connect the power cord into a properly grounded electrical outlet with a sufficient amperage rating. Voltage 120 volt requires a full 20-amp grounded circuit. Locate the lift handle and position the heat platen in the 240 volt requires a full 10-amp grounded circuit. -
Page 7: Adjusting Temperature
Adjusting Temperature Adjusting Time Press the Mode Select button in the center of the Control Panel. Once you have adjusted the temperature, press the Mode Select button again to advance to Time Mode. The (SET) and (TEMP) lights located next to the display will illuminate. -
Page 8: Adjusting Pressure
HOTRONX ® Operating Instructions MAXX CLAM ® Adjusting Pressure Printing/Pressing Over-the-Center Pressure Adjustment Knob The MAXX Clam Press features a patented, Once your equipment has reached the designated temperature: ® over-the-center pressure adjustment located • Position the garment and design in the center of the heat platen. -
Page 9: Electrical Schematic
Electrical Schematic US 120V/240V Versions - 1800 W for 16 x 20, 10A CBs - 1800 W for 16 x 20, 20A CBs - 1800 W for 15 x 15, 10A CBs - 1800 W for 15 x 15, 20A CBs - 1000 W for 11 x 15, 10A CBs - 1000 W for 11 x 15, 10A CBs 240V... -
Page 10: Parts Location Guide
HOTRONX ® Parts Location Guide MAXX CLAM ®... -
Page 11: Replacement Parts List
Replacement Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION 4-1172-B Control Housing, MAXX 1-2091 Pin, 1/2" x 3" w/ 1/4-20 Threads 1-2018 Controller Overlay, MAXX 1-2098 PVC Spacer 1/2 " I.D.x 2.48 1-2105 Grommet, 9/32" ID 3/8" OD 1-2092 Pin, 1/2"... -
Page 12: Contact
CONTACT US STAHLS’ Asia 8-79, Samseong 3-gil Dongnam-gu Cheonan-si Chungcheongnam-do Rep. of Korea Technical Support & Customer Service +82 41 622 0936 Email info@stahlsasia.com stahlsasia.com This document includes multiple trademarks and describes equipment covered by many patents that are owned by GroupeSTAHL and/or its subsidiaries. GroupeSTAHL enforces its rights to protect these intellectual properties.
