Summary of Contents for Stahls Hotronix The MAXX Press

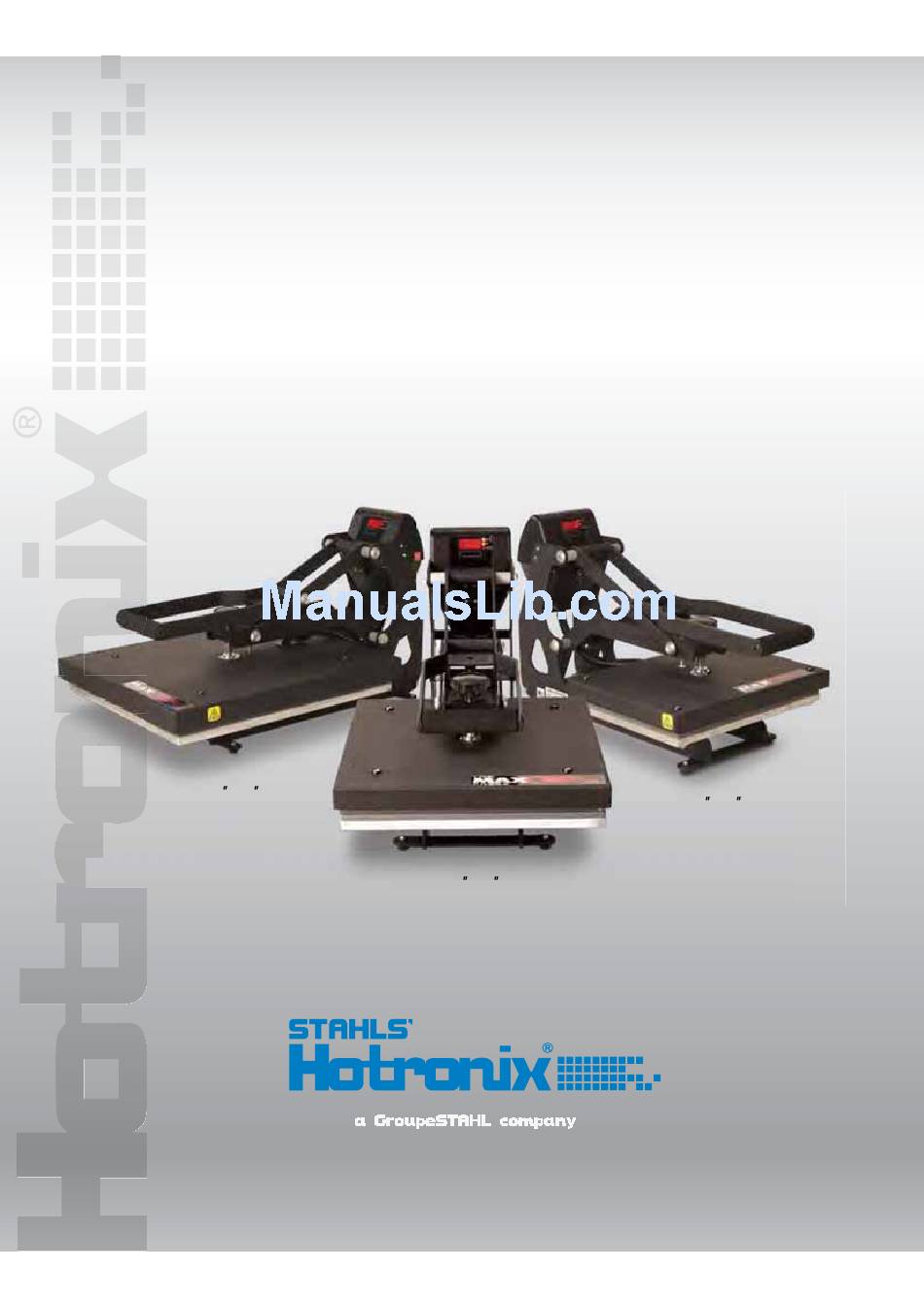

- Page 1 T h e M A X X ™ P r e s s D I G I T A L C L A M OPERATOR’S MANUAL 16 x20 11 x15 15 x15...
-
Page 2: Safety Instructions
Safety Instructions When using your heat press, basic precautions should always be followed, including the following: Read all instructions. Use heat press only for its intended use. To reduce the risk of electric shock, do not immerse the heat press in water or other liquids. Never pull cord to disconnect from outlet, instead grasp plug and pull to disconnect. -
Page 3: Table Of Contents
The MAXX Press ™ Table of Contents Safety Instructions Machine View Control Panel Guide Operating Instructions 6-11 Connecting the System Turning the System On Adjusting the Temperature Adjusting the Time Adjusting the Pressure Pressing Replacement Parts List Parts Location Guide Electrical Schematic Contact H O T R O N I X . -
Page 4: Machine View
The MAXX Press ™ Machine View FRONT VIEW Located in the Back LED Display of the Press Circuit Breaker Power Supply SIDE VIEW Over-the-Center Pressure Adjustment Knob Lift Handle Power ON/OFF Switch PAGE 4 S E R V I C E H O T L I N E : 8 0 0 . 7 2 7 . 8 5 2 0... -
Page 5: Control Panel Guide
The MAXX Press ™ Control Panel Guide Digital Display Temperature Indicator Set Indicator MODE MODE MODE Time Indicator MODE Increase Mode Select Decrease PAGE 5 H O T R O N I X . C O M... -
Page 6: Operating Instructions
The MAXX Press ™ Operating Instructions The MAXX Press DIGITAL CLAM ™ The MAXX ™ Press Digital Clam Operating Instructions are designed with the user in mind. Carefully read and follow the step-by-step instructions for best results. To avoid burns, do not touch the heated platen during use. -
Page 7: Turning The System On
The MAXX Press ™ Turning the System On SWITCH THE SYSTEM ON See the diagram below for switch placement. Locate the lift handle and position the heat platen in the “UP” (load) position. Power ON/OFF Switch Now, locate the Power ON/OFF Switch on the side of the press, then turn the Power Switch on. -
Page 8: Adjusting The Temperature
The MAXX Press ™ Adjusting the Temperature ADJUST THE TEMPERATURE Locate the LED Display on the Press. Press the Mode Select button located in the center of the Control Panel. The (SET) and (TEMP) lights located next to the display will illuminate indicating you are in the adjust temperature mode. -
Page 9: Adjusting The Time
The MAXX Press ™ Adjusting the Time ADJUST THE TIME Once you have adjusted the temperature, press the Mode Select button again. This will advance you to the Time mode. The set and time lights will illuminate, indicating that you are in the Time mode. Adjust the time in the same manner that you adjusted the temperature. -
Page 10: Adjusting The Pressure
The MAXX Press ™ Adjusting the Pressure ADJUST THE PRESSURE The MAXX™ Press Digital Clam features a patented, Over-the-Center Pressure Adjustment located in the center of the heat platen. Adjust the pressure by turning the knob clockwise to increase pressure and counter clockwise to decrease pressure. -
Page 11: Pressing
The MAXX Press ™ Printing/Pressing PRESS Once your equipment has reached the designated temperature, position the garment and application and proceed to press. Lower and lock the heat platen into the press position. This procedure will start the automatic timing process. The timer will automatically count down and audibly signal you to lift the heat platen into the “UP”... -
Page 12: Replacement Parts List
The MAXX Press ™ Replacement Parts List Item # Part Name Part # Qty. Hex Soc Button HD # 10 - 32 x 1/2” 3 - 1011 - 164 Rubber Foot 1 - 1256 Acorn Hex Nut 3 - 1011 - 182 16 x 20 15 x 15 4 A-B Hex Cap HD Screw - 3/8“... -
Page 13: Parts Location Guide
The MAXX Press ™ Parts Location Guide 16 x 20, 15 x 15, 11 x 15 The MAXX ™ Press Digital Clam is available in three sizes: When ordering replacement parts, refer to the following color codes For a 16 x20 press - use color code For a 15 x15 press - use color code For a 11 x15 press - use color code 26 A 26 C... -
Page 14: Electrical Schematic
The MAXX Press ™ Electrical Schematic US 120 V Version - 1800 W for 16 x 20 - 1800 W for 15 x 15 - 1000 W for 11 x 15 120V IMPORTANT: MAKE SURE TO USE CORRECT VOLTAGE CONNECTION TO THE CONTROLLER - 1800 W for 16 x 20 - 1800 W for 15 x 15 - 1000 W for 11 x 15... -
Page 15: Contact
Contact Us Stahls’ Hotronix ® One Paisley Park Carmichaels, PA 15320 U.S.A. Technical Support 800 . 727 . 8520 Monday - Friday 8am - 7pm EST Customer Service 800 . 727 . 8520 Monday - Friday 8am - 5pm EST Replacement Parts 800 . - Page 16 Proudly made in the U.S.A. One Paisley Park . Carmichaels, PA 15320, U.S.A. Tech Support - Customer Service - Replacement Parts: 800 . 727 . 8520 Web: Hotronix.com...
