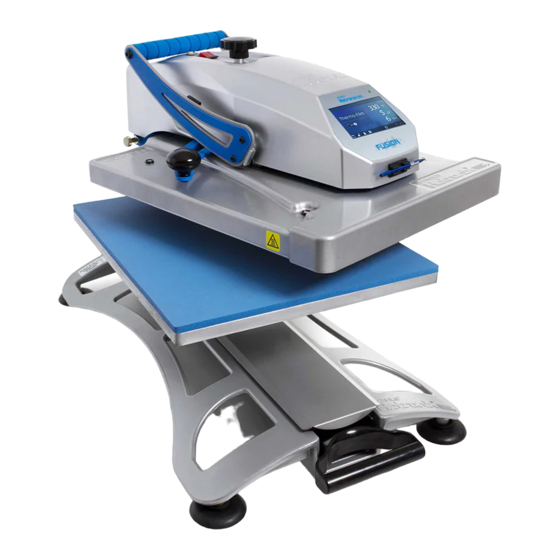

Fusion (Model XF)
Circuit Breaker Replacement
2015-12-03
2
1
Technical Assistance: 1-(800)-727-8520
Manuals: hotronix.com/heat-press-manuals
4
3

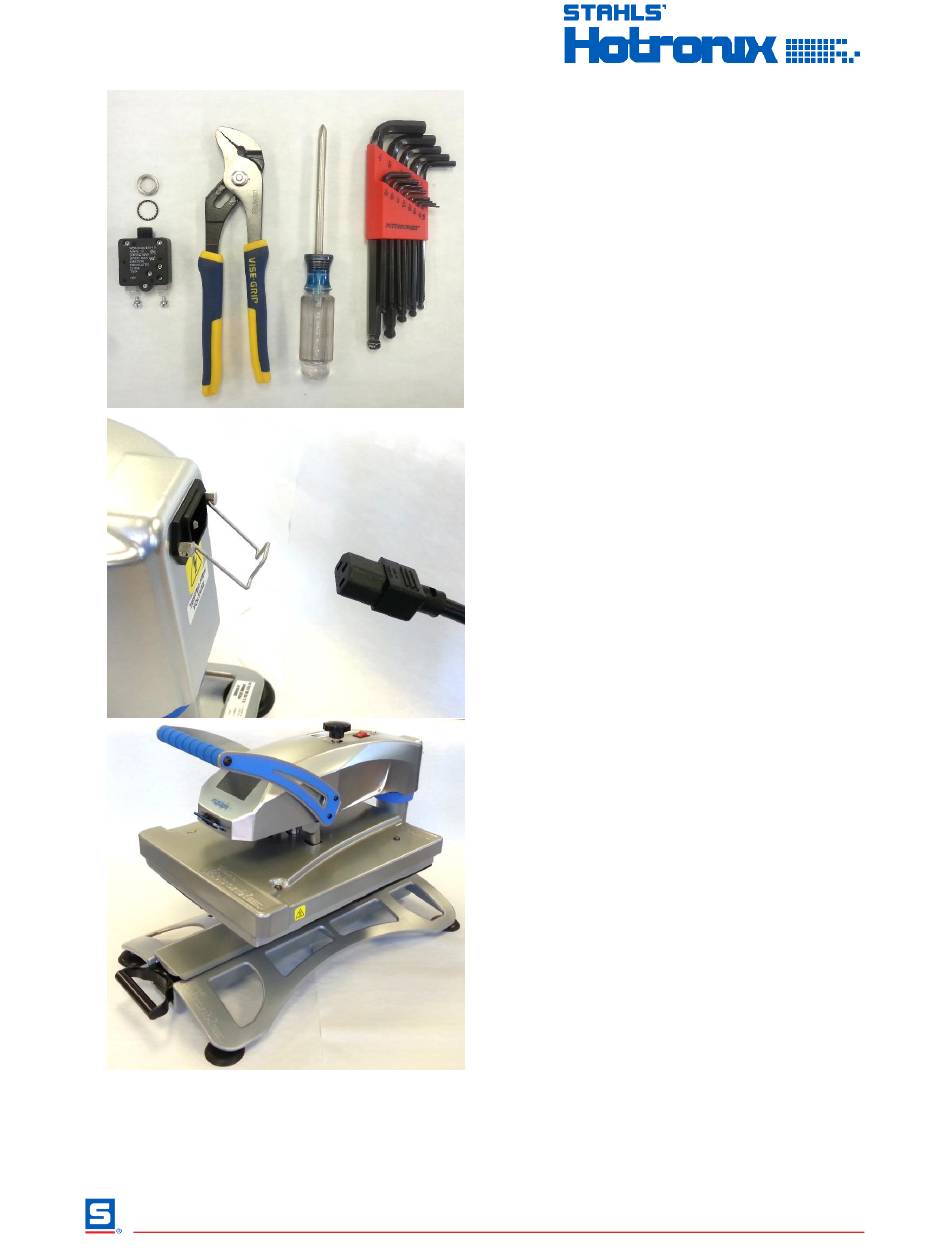

Included Parts:
Required Tools:
CAUTION: Detach power cord before
proceeding
Lower heater but do not lock into place, such
that it rests gently on lower platen
1. Circuit Breaker with terminal screws,
toothed washer and silver mounting
ring (P/N: 1-1331)
2. Pliers
3. #2 Phillips Screwdriver
4. Allen Wrenches (3/32" & 9/32")
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stahls Hotronix Fusion XF
Summary of Contents for Stahls Hotronix Fusion XF
- Page 1 Fusion (Model XF) Circuit Breaker Replacement 2015-12-03 Included Parts: 1. Circuit Breaker with terminal screws, toothed washer and silver mounting ring (P/N: 1-1331) Required Tools: 2. Pliers 3. #2 Phillips Screwdriver 4. Allen Wrenches (3/32” & 9/32”) CAUTION: Detach power cord before proceeding Lower heater but do not lock into place, such that it rests gently on lower platen...
- Page 2 Fusion (Model XF) Circuit Breaker Replacement 2015-12-03 Loosen set screw in shaft of pressure adjustment knob and remove knob Remove 4 #8-32 x ½” Thumb Screws (right 2 shown) from underside of control housing using 9/32” Allen Wrench Lift off control housing and lay it gently on left side of press Technical Assistance: 1-(800)-727-8520 Manuals: hotronix.com/heat-press-manuals...
- Page 3 Fusion (Model XF) Circuit Breaker Replacement 2015-12-03 Remove silver mounting ring from circuit breaker using pliers if necessary, being careful not to damage the painted finish Transfer wire terminals one at a time from old circuit breaker to new using #2 Phillips Screwdriver, noting terminal connections and circuit breaker orientation are correct as shown...
- Page 4 Fusion (Model XF) Circuit Breaker Replacement 2015-12-03 Replace Pressure Adjustment Knob, aligning set screw with flat of shaft and tightening with 3/32” Allen Wrench Raise handle into open position, plug in press and turn ON to verify proper operation Technical Assistance: 1-(800)-727-8520 Manuals: hotronix.com/heat-press-manuals Page 4 of 4...
