- Page 1 FUSION IQ ® OPERATOR’S MANUAL...
- Page 2 HOTRONIX ® Safety Instructions FUSION IQ ® When using your heat press, basic precautions should always be followed, including the following: 1. Read all instructions. 2. Use heat press only for its intended use. 3. To reduce the risk of electric shock, do not immerse the heat press in water or other liquids.
-
Page 3: Table Of Contents
Table Of Contents Machine View Operating Instructions Connecting the System Start Up/Shut Down Home Screen Prepare to Print Touch Screen Guide 8-11 Setup Menu Password Setup (Manager Level Only) Preset Setup Date & Time Setup Display Setup Auto On & Off Setup System Setup (Manager Level Only) Calibration (Manager Level Only) Updating Software... -
Page 4: Machine View

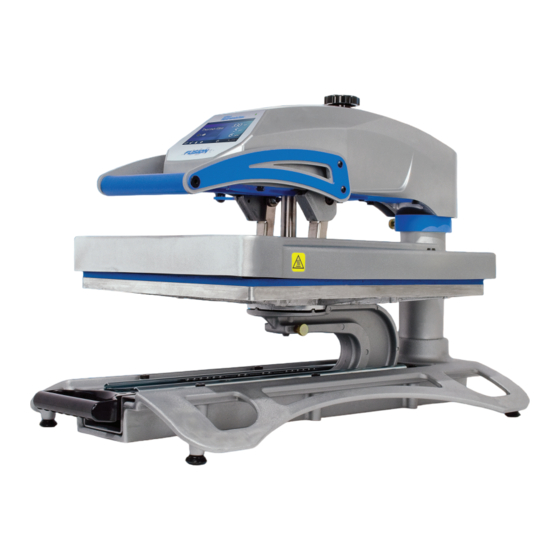

HOTRONIX ® Machine View FUSION IQ ® Over-the-Center Pressure Adjustment Knob Touch Screen Swing Handle IEC Inlet Heat Platen Circuit Breaker Power ON/OFF Switch Lift Handle Lower Platen Swing Lock Pull Handle Base... -
Page 5: Operating Instructions
Operating Instructions Connecting the System Insert power cord into IEC inlet located in the back of the press (1.1). Connect the power cord into a properly grounded electrical outlet with a sufficient amperage rating. NOTE: To release power cord from press, hold two red buttons on both sides of cord and pull (1.2). -
Page 6: Home Screen
HOTRONIX ® Operating Instructions FUSION IQ ® Home Screen Status bar provides Displays the selected helpful information preset. Touch and regarding heat press. hold to see application settings. NOTE: Holding down material Displays the current application name will display targeted temperature and time. -
Page 7: Prepare To Print
Operating Instructions Prepare to Print To begin heat applying, start by verifying that you have the proper settings displayed on the Home Screen. • Select preset material application. • Manually enter temperature and time for selected material. Adjust pressure accordingly. Remember to allow for the thickness of your garment when adjusting the pressure. -
Page 8: Touch Screen Guide
HOTRONIX ® Touch Screen Guide FUSION IQ ® Setup Menu Touch the Settings icon on the Home Screen (5.1) to configure your heat press. Managers can access all setup options, while Users can access a limited set (5.2). • Managers default password: M... -
Page 9: Preset Setup
Touch Screen Guide Preset Setup Touch the Columns icon (7.1) to select from a list of saved presets (7.2). Touch the arrow keys on the taskbar to scroll through a long list of presets (7.3). Touch a preset to select a material. -
Page 10: Date & Time Setup
HOTRONIX ® Touch Screen Guide FUSION IQ ® Date & Time Setup Touch the Settings icon on the Home Screen. • Touch Date & Time, information displays on right of screen (8.1). • Touch up/down arrows to select time zone. -
Page 11: Calibration (Manager Level Only)
Touch Screen Guide Calibration (Manager Level Only) Your heat press comes pre-calibrated from the factory. Calibration is only required after sensor or controller replacement. Pressure is periodically self-calibrated. Incorrect calibration can result in poor print results or damage to your heat press which is not covered by warranty. All FUSION heat presses have a temperature calibration function (12.1). -
Page 12: Connecting To The Iq Portal
HOTRONIX ® Connecting to the IQ Portal FUSION IQ ® ® Create Your Account • Using a phone or computer, visit iq.hotronix.com to create an account (13.1). • Enter your name, email, and password. • Click on the confirmation link in the email you receive. -
Page 13: Electrical Schematic
Electrical Schematic 120V Version RTD Probe 1800W Heater - 120V - 50/60Hz 230/240V Version Strain TRIAC Gauge RTD Probe Ground to Frame Proximity Switch 1800W Heater - 230/240V - 50/60Hz IEC Inlet Black 14ga Ground to Frame White 14ga Circuit Circuit Breaker Breaker... -
Page 14: Replacement Parts List
HOTRONIX ® Replacement Parts List FUSION IQ ®... -
Page 15: Parts Location Guide
Parts Location Guide WWW.STAHLS.DE... - Page 16 Economic Community as well as the EC EMV-guideline 89/336. For the manufacturer STAHLS’ Hotronix® Division, we state as European Commissioners, that our product A Transfer Press for ironing of thermo application, Model: Fusion IQ® supplied corresponds to the following appropriate regulations: EMC Directive (2014/30/EU) &...
-
Page 17: Contact Us
CONTACT US STAHLS’ Europe GmbH Dieselstraße 62 66763 Dillingen Germany Technical Support & Customer Service +49 (0) 68 31/97 33 0 Email info@stahls.de stahls.de This document includes multiple trademarks and describes equipment covered by many patents that are owned by GroupeSTAHL and/or its subsidiaries. GroupeSTAHL enforces its rights to protect these intellectual properties.
