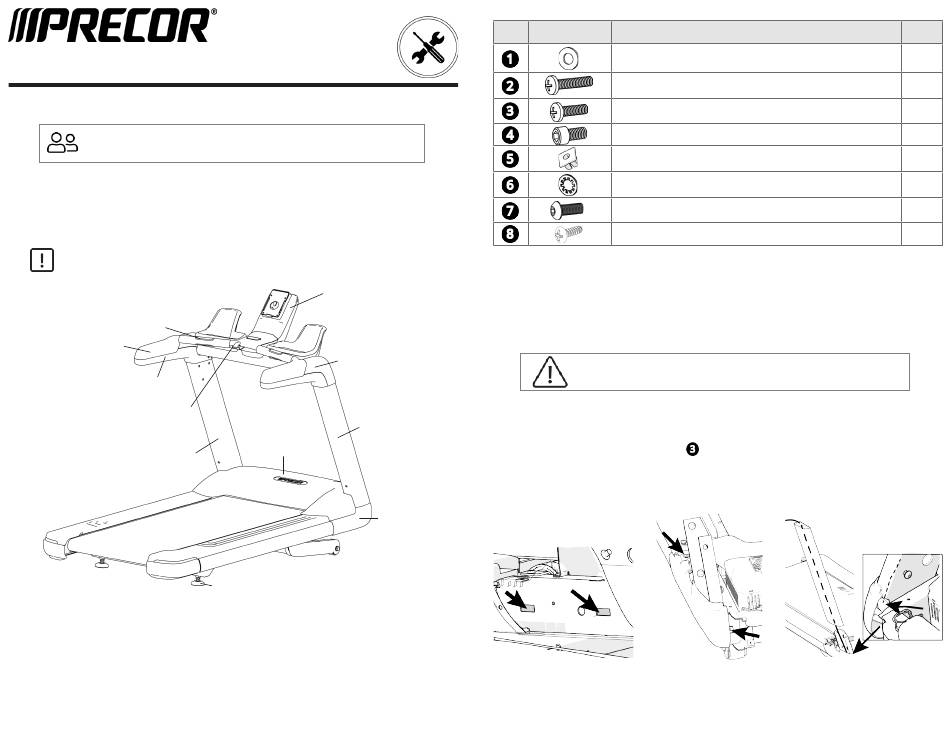

Treadmill 600/700 Line Assembly Guide
Assembly requirements
Precor recommends at least two people for this installation. DO NOT
attempt assembly by yourself.
Follow the steps in the order listed in this assembly guide. Be sure to:
• Assemble the equipment close to where you plan to use it.
• Assemble the equipment on a solid, flat surface, so that it remains level and stable.
• Locate the equipment a minimum of .6 m (23.6 in.) on either side of the equipment and 2 m
(79 in.) behind the treadmill. DO NOT move the equipment without assistance.
IMPORTANT The treadmill requires a 20-amp individual branch circuit grounded per
NEC (National Electric Code) guidelines or local region electric code.
Heart rate bar
Arm cover
Bottom arm
cover
Safety key
assembly
Left upright
support
Hardware kit
Required tools
• #3 Phillips screwdriver
• Hex wrench 7/32-inch
• Hex wrench 5/16-inch
• Torque wrench with tension to at least 25 ft-lb (33.90 Nm) with
5/16-inch and 7/32-inch drivers
©2023 Peloton Interactive, Inc.
Dash assembly
Front arm cover
Right upright
support
Hood
Base side
cover
Adjustable feet
Figure 1
• Hex wrench 1/4-inch
Washer (3/8-inch)
Self-tapping pan head screw (1/4 x 1-inch)
Self-tapping pan head screw (1/4 x 3/4-inch)
Socket head cap screw (3/8 x 5/8-inch)
Plastic grommet (1/4-inch)
Star tooth washer (3/8-inch)
Button head screw (3/8 x 1-inch)
Plastic screw (3/8 x 5/8-inch)
NOTE Extra hardware may be included with the treadmill.
Torque Measurements Use the following torque measurements to tighten the fasteners. If a
torque is not provided, then fully tighten the fastener with the appropriate tool.
• All screws (excluding plastic screws) to 25 ft-lb (33.90 Nm)
Attach uprights to treadmill
WARNING Do NOT connect electrical power until all assembly
procedures are complete and the console is properly installed.
1.
Remove the hood from the treadmill base and set it aside.
2.
Position a base side cover against the treadmill frame so that the tabs fit into the frame
(Figure 2).
3.
Attach the base side cover using two
one for the front attachment.
4.
Position the right side upright support near the base frame and route the data cable inside
of the base side cover and up through the right upright (Figure 4).
IMPORTANT DO NOT pinch or crush the cable during assembly.
Figure 2
Treadmill 600/700 Assembly Guide | P/N 305285-101D ENU | 31 July 2023 | 1
Description
screws (Figure 3), one for the side attachment and
Figure 4
Figure 3
Qty
6
6
29
6
6
12
12
16

Advertisement

loading
Need help?

Need help?

Do you have a question about the 600 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Precor 600 Series

  • Page 1 Assembly requirements Self-tapping pan head screw (1/4 x 3/4-inch) Socket head cap screw (3/8 x 5/8-inch) Precor recommends at least two people for this installation. DO NOT attempt assembly by yourself. Plastic grommet (1/4-inch) Follow the steps in the order listed in this assembly guide. Be sure to: Star tooth washer (3/8-inch) •...
  • Page 2 Position the right upright support onto the base From the bottom of each tread arm, remove the screw (Figure 10). frame so that the side cover lip fits inside the Remove the bottom and front plastic covers from each tread arm and set aside. upright support and attach it using three screws Fit the tread arm into the heart rate bar and against the dash assembly.
  • Page 3 Connect the new power cable according to WARNING Before you finish assembling the treadmill base, examine the Figure 17 and Table 1. electrical bleed line between the belt motor and the frame. Make sure the bleed line is connected securely to both the motor and the frame as Position Connector shown in Figure 20, and verify that it is not damaged.
  • Page 4 The default setting for this feature is ON. An administrator can turn off this feature in the System Settings; however, Precor recommends it IMPORTANT Failure to align the belt may cause the belt to tear or fray, remain ON.
