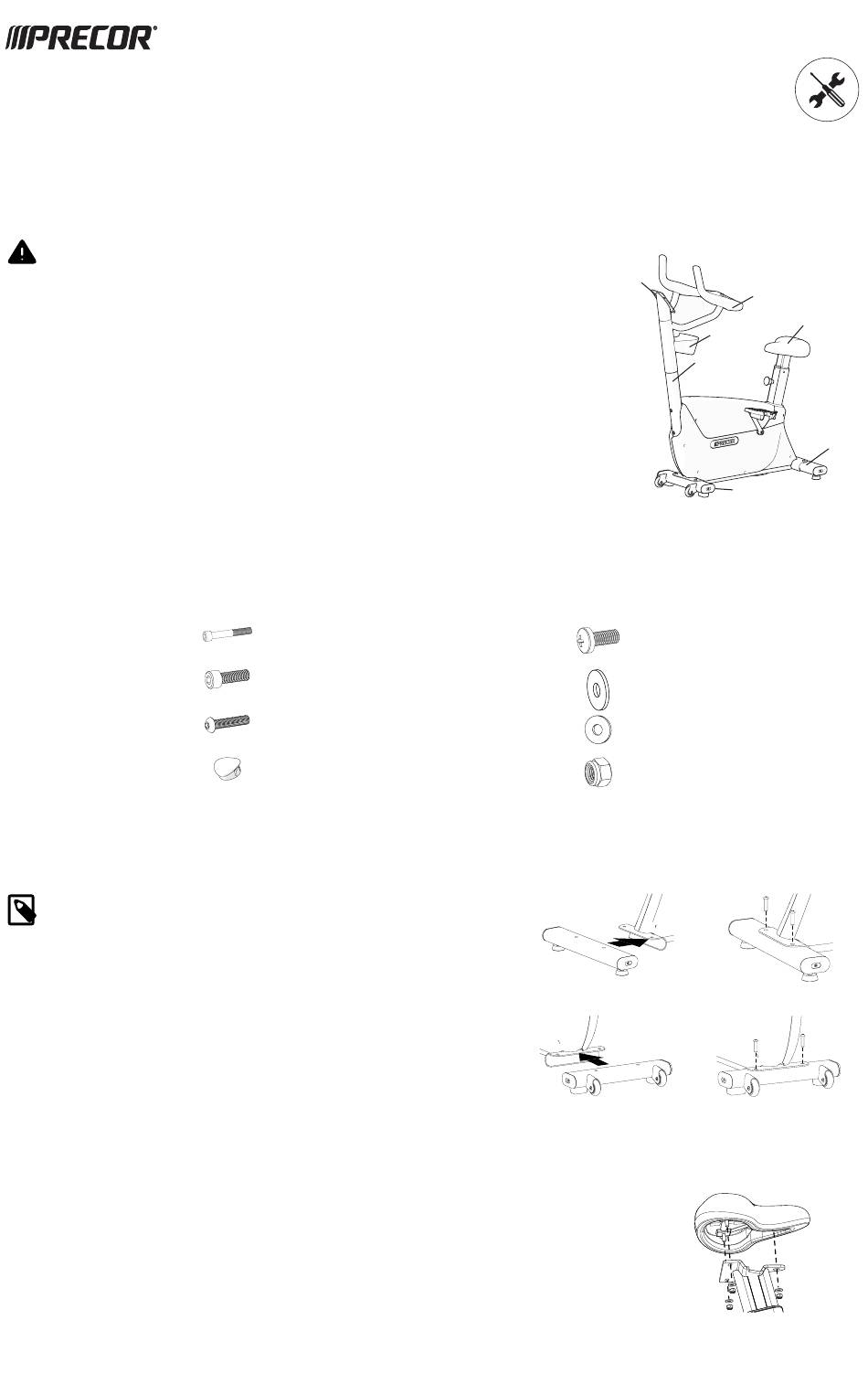

Precor 600 Series Assembly Manual

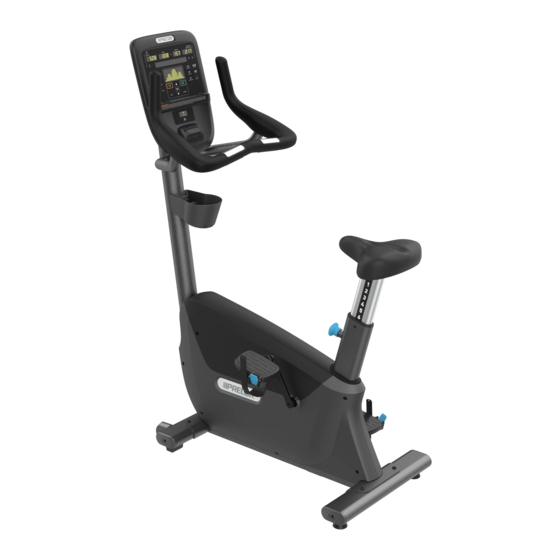

600 Line Upright Bike (UBK) Assembly Guide
To assemble the equipment, follow the steps in the order listed in this assembly guide. For more product information, visit us at www.precor.com.
WARNING
At least two people are required to assemble the equipment. DO NOT attempt assembly
by yourself.
We recommend you:
▪ Assemble the equipment close to where you plan to use it.
▪ Assemble the equipment on a solid, flat surface, so that it remains level and stable.
▪ Locate the equipment at least 19.7 inches (0.5 meter) away from walls or furniture on either side of the
equipment, and 19.7 inches (0.5 meter) away from objects behind or in front of the equipment.
▪ DO NOT move the equipment without assistance.
Required tools and hardware
For hardware, the US English acronym is used throughout the guide and in all localized versions.
Tools
▪ 6 mm hex wrench
▪ 10 mm hex wrench
▪ 5/32-inch hex wrench
▪ 13 mm open-end, box or
socket wrench
▪ 17 mm open-end wrench
▪ #2 Phillips screwdriver
▪ Wire cutter
▪ Fish tape
Attach the stabilizers
NOTE
The front stabilizer has two wheels. These wheels help to move the location of
the bike.
To attach the stabilizers:
1. Place the rear stabilizer under the bracket at the rear of the bike (Figure 1).
2. Attach the rear stabilizer using two M10 x 40 mm BHCS. Fully tighten the screws using a
6 mm hex wrench (Figure 2).
3. Place the front stabilizer underneath the bracket at the front of the bike (Figure 3).
4. Secure the front stabilizer using two M10 x 40 mm BHCS. Fully tighten the screws using
a 6 mm hex wrench (Figure 4).
To attach the seat:
1. Place the seat on the bracket so that the three bolts extend through the screw holes.
2. Attach an 8.2 mm washer and M8 Nylon lock nut to each bolt. Fully tighten the fasteners using a 13 mm
socket wrench.
Component Description
Socket head cap screw
(SHCS) / M12 x 80 mm
Socket head cap screw (SHCS) /
M8 x 25 mm
Button head cap screw (BHCS) /
M10 x 40 mm
Plug for access hole on upright
support
Console
mount
Quantity Component Description
2
4
4
1
Figure 1
Figure 3
Handle bars
Seat
Bottle holder
Upright Support
Rear stabilizer
Front stabilizer
Quantity
Pan head cap screw
(PHCS) / M5 x 12 mm
Washer, zinc / 8.2 mm
Washer, black / 8.1 mm
Nylon lock nut / M8
Figure 2
Figure 4
Figure 5
2
3
4
3
