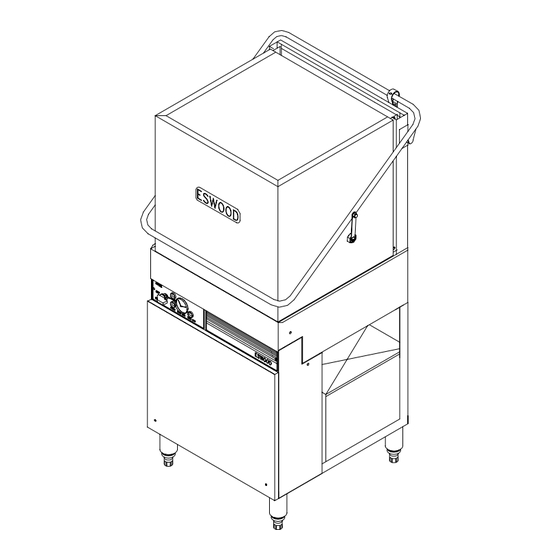

Pass through dishwasher

Advertisement

Quick Links

EQUIPMENT MANUAL
FOR
ES25 PASS THROUGH
DISHWASHER
OCTOBER 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES25 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eswood ES25

  • Page 1 EQUIPMENT MANUAL ES25 PASS THROUGH DISHWASHER OCTOBER 2009...
  • Page 2: Table Of Contents

    ABLE OF CONTENTS Important: Prior to Installation General Description Technical Specifications Installation Initial Start-up Procedure Washing Operation Shutdown and Maintenance Trouble Shooting 10, 11 ES25 Export Model Drawings 13 & 14 Wiring Diagram Contact Branches ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 3: Important: Prior To Installation

    (Note: Travel time not covered by warranty) In no event will ESWOOD AUSTRALIA be liable for loss of facilities or other property and such things as, but not limited to, additional labour costs, loss of revenue or anticipated profits, and other damages of any kind whether direct, indirect, incidental or consequential.
  • Page 4: General Description

    No Fuss Automatic Operation: Just slide the loaded rack in and the cycle starts automatically when the hood is closed, and stops automatically if the hood is opened at any time. The ES25 features a rinse water temperature gauge, cycle status light and cycle selection control, all conveniently located for easy use, a full wrap around handle with smooth acting polymer guides for ease of operation.
  • Page 5: Technical Specifications

    C minimum Water Consumption Litres per cycle Electrical and Water Connections: Electrical Input 240V, 3.5 kW Water Input C minimum @ 200-400 kPa Hot Water Inlet ” B.S.P. fitting Drain Outlet 2” B.S.P. gravity fed ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 6: Installation

    Note that all electrical work is to be done in accordance with the rating plate on the lower panel. Connect the benching so that there is a fall back towards the machine to allow water to drain back into the machine. ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 7: Initial Start-Up Procedure

    When finished, check for leaks. Turn the rotary switch “OFF”, open the door and remove the overflow tube to drain the machine. Also check for leaks. Replace the lower front panel. ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 8: Washing Operation

    Note that the hood should not be opened until the wash and rinse cycle is complete, otherwise the cycle will reset and continue longer than necessary. ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 9: Shutdown And Maintenance

    Check for leaks and ensure that the lower and upper arms rotate freely. Leave the hood open to allow the machine to air. ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 10: Trouble Shooting

    (a) Check that detergent feeder to machine is operating correctly, if fitted. If operational, adjust the injector to increase dosage. (b) If hand-feeding with detergent, increase dosage. (c) Check for foreign matter in wash arm jets. Clean if necessary. ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 11 (e) Check operation of the ball float valve. ________________________________________________________ Insufficient rinse (a) Ensure that temperature of temperature incoming water supply is at least 65 (b) Check that rinse booster element and thermostat are functioning correctly. Rinse temperature 80° - 88°C ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 12: Es25 Export Model

    ES25 E XPORT MODEL The ES25 supplied for export differs from Australian models as follows: A detergent injector is fitted as standard. ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 13: Drawings 13

    RAWINGS ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 14 RAWINGS ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 15: Wiring Diagram

    IRING IAGRAM ESWOOD OPERATING MANUAL ES-25 October 09...
  • Page 16: Contact Branches

    283-287 Sir Donald Bradman Drive 9 Meares Way Brooklyn Park Canning Vale South Australia 5032 Western Australia 6155 Phone: 08 8238 3423 Phone: 08 9456 0559 Fax: 08 8238 3400 Fax: 08 9456 0554 ESWOOD OPERATING MANUAL ES-25 October 09...
