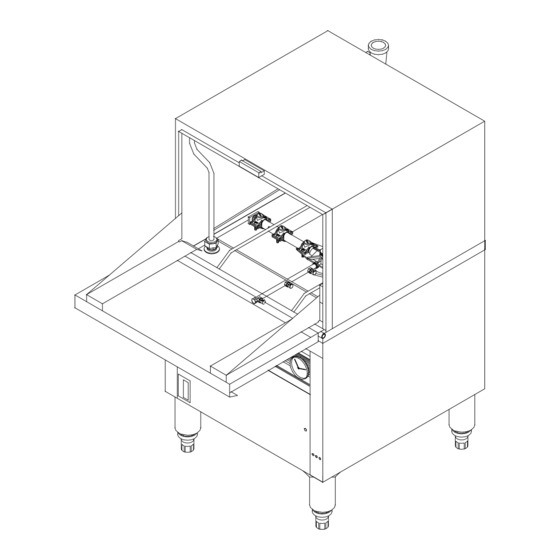

EQUIPMENT MANUAL
FOR
B42 G&P PROFESSIONAL
GLASS AND DISH WASHERS
11.09.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B42 G and is the answer not in the manual?

Questions and answers

Related Manuals for Eswood B42 G

Summary of Contents for Eswood B42 G

  • Page 1 EQUIPMENT MANUAL B42 G&P PROFESSIONAL GLASS AND DISH WASHERS 11.09.02...

  • Page 2: Table Of Contents

    ABLE OF CONTENTS Important: Prior to Installation General Description Technical Specifications Installation Initial Start-up Procedure Washing Operation Shutdown and Maintenance Trouble Shooting B42 Export Model Contact Branches G:\eng_files\ESWOOD\USER MANUALS\ARCHIVE\B42\B42 Operating manual.DOC...

  • Page 3: Important: Prior To Installation

    (Note: Travel time not covered by warranty) In no event will ESWOOD AUSTRALIA be liable for loss of facilities or other property and such things as, but not limited to, additional labour costs, loss of revenue or anticipated profits, and other damages of any kind whether direct, indirect, incidental or consequential.

  • Page 4: General Description

    Fully Automatic Operation: Simply select the desired wash cycle time and push the start button. Your Eswood washer will do the rest, from wash to final rinse, with automatic detergent injection. The B42G has an additional cold rinse cycle that may be selected before or after a normal wash.
  • Page 5 Quality, Reliability and Performance: Eswood has a reputation for product reliability that is second to none. The finest of stainless steel and durable synthetic materials are used, and all Eswood products are fully guaranteed and backed by a national support network.

  • Page 6: Technical Specifications

    240V, 50Hz, 1 phase, 14 Amps max Hot Water Input C @ 200 kPa to 400 kPa ” B.S.P. fitting Hose with Cold Water Input 200 kPa to 400 kPa ” B.S.P. fitting Hose with ” B.S.P. gravity fed Drain Outlet G:\eng_files\ESWOOD\USER MANUALS\ARCHIVE\B42\B42 Operating manual.DOC...

  • Page 7: Installation

    Ensure that the rotary switch is “OFF” and connect the three pin plug lead to a 15 Amp, 240V, 50Hz, 1 phase power outlet. Note that any electrical work is to be done in accordance with the rating plate on the lower panel. G:\eng_files\ESWOOD\USER MANUALS\ARCHIVE\B42\B42 Operating manual.DOC...

  • Page 8: Initial Start-Up Procedure

    0 Open the door and insert the overflow tube and pump intake filter. Close the door. With the rotary switch in the “FILL” position, press “START” button and wash tank will fill with water. G:\eng_files\ESWOOD\USER MANUALS\ARCHIVE\B42\B42 Operating manual.DOC...
  • Page 9 Check for leaks and refit the lower panel. Turn the rotary switch “OFF”, open the door and remove the overflow tube to drain the machine. Do not remove the pump intake filter until the machine has finished draining. G:\eng_files\ESWOOD\USER MANUALS\ARCHIVE\B42\B42 Operating manual.DOC...

  • Page 10: Washing Operation

    Your supplier can advise you on selection of an appropriate rack. 7. When the washing is finished, open the door and remove the clean rack. To wash another rack repeat from step 5. G:\eng_files\ESWOOD\USER MANUALS\ARCHIVE\B42\B42 Operating manual.DOC...

  • Page 11: Shutdown And Maintenance

    Clean the exterior of the machine with a damp sponge. Do not pass water over the electrical controls and avoid abrasive or strong detergents. Check for leaks and ensure that the arms rotate freely. Leave the door open to allow the machine to air. G:\eng_files\ESWOOD\USER MANUALS\ARCHIVE\B42\B42 Operating manual.DOC...

  • Page 12: Trouble Shooting

    (b) Check if overflow pipe is seated correctly in wash tank, and check for foreign matter under the O-ring of the pipe. (c) Check for obstruction in the water supply solenoid valve and clean if necessary. Check diaphragm and replace if punctured. G:\eng_files\ESWOOD\USER MANUALS\ARCHIVE\B42\B42 Operating manual.DOC...
  • Page 13 If so, remove and clean filter. Insufficient rinse (a) Ensure that temperature of temperature incoming water supply is at least 65 (b) Check that boiler thermostat is set correctly and functioning. (c) Check elements. G:\eng_files\ESWOOD\USER MANUALS\ARCHIVE\B42\B42 Operating manual.DOC...

  • Page 14: B42 Export Model

    ” B.S.P. isolating valve as stated in section 4.5. Vacuum breakers are not fitted to export machines, but are available as an optional extra. Export models may include 435 x 435mm racks in lieu of 400 x 400mm racks. G:\eng_files\ESWOOD\USER MANUALS\ARCHIVE\B42\B42 Operating manual.DOC...

  • Page 15: Contact Branches

    Suite 26, 10 Wittenberg Drive, 283-287 Sir Donald Bradman Drive Canning Vale, Brooklyn Park, Western Australia, 6155. South Australia, 5032. Phone: (08) 8238 3423 Phone: (08) 9456 0559 Fax: (08) 8238 3400 Fax: (08) 9456 0554 G:\eng_files\ESWOOD\USER MANUALS\ARCHIVE\B42\B42 Operating manual.DOC...

This manual is also suitable for:

B42 p

Table of Contents
