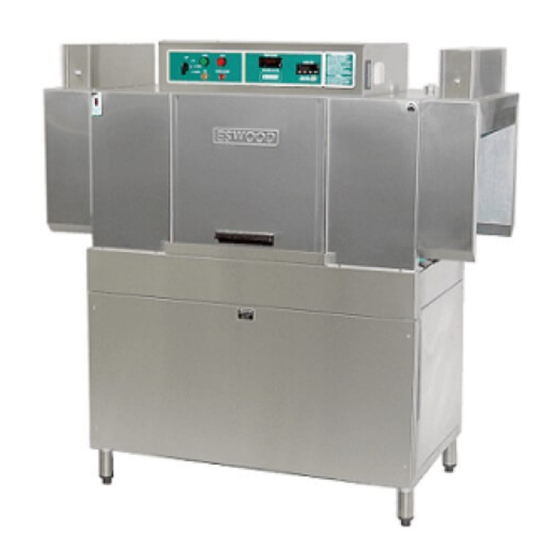

Rack conveyor dishwasher
Hide thumbs

Advertisement

Table of Contents

EQUIPMENT MANUAL
FOR
ES-100 RACK CONVEYOR DISHWASHER
JUNE 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Eswood ES-100

Summary of Contents for Eswood ES-100

  • Page 1 EQUIPMENT MANUAL ES-100 RACK CONVEYOR DISHWASHER JUNE 2011...

  • Page 2: Table Of Contents

    ABLE OF CONTENTS Important: Prior to installation Technical Specification Installation Installer-Initial Procedure Washing Operation Washing Shutdown and Maintenance Curtain Location Trouble Shooting 12,13,14 Spare Parts Spare parts & Service ESWOOD OPERATING MANUAL ES-100 June 2011...

  • Page 3: Important: Prior To Installation

    Warranty repair services) Note: It is the responsibility of the owner to ensure the water feed to Eswood Dish and Glass washers is of a quality that will not form excessive build up of calcium and other dissolved minerals on the heating elements.

  • Page 4: Technical Specification

    0.18 kW. lectrical and Water Connections: Electrical Input 415/50/3N, 21.5 kW. (with Dryer add 6.6 kW.) Water Input 65°C minimum @ 200-400 kPa Hot Water Inlet 1/2” B.S.P. fitting Drain Outlet 2” B.S.P. gravity fed ESWOOD OPERATING MANUAL ES-100 June 2011...

  • Page 5: Installation

    Machine should be fitted with automatic detergent and rinse agent feeding equipment. Check with detergent company for the supply of equipment and proper commercial chemicals and feed settings. ESWOOD OPERATING MANUAL ES-100 June 2011...

  • Page 6: Installer-Initial Procedure

    Turn rotary switch to position (“HI. SP.” or “LOW SP.”-The ES-100 has only one speed and will work in either position) to put machine in washing mode. Push the green start button and the machine will start. Check during operation that the wash thermometer is showing 60-65°C and the final rinse...
  • Page 7 At the end of this initial procedure. Turn Rotary switch to “OFF” position. Open the inspection door and lift the drain lift handle (move forward and release) to allow tank to drain. Remove curtains and allow to air dry. ESWOOD OPERATING MANUAL ES-100 June 2011...

  • Page 8: Washing Operation

    Turn rotary switch to position (“HI. SP.” or “LOW SP.”-The ES-100 has only one speed and will work in either position) to put machine in washing mode. Push the green start button and the machine will start.

  • Page 9: Washing

    If the amber light “WAIT-LOW TEMP” comes on during operation the conveyor drive and rinse will stop, until rinse water reaches 82°C, then it will re-start.( this conforms to current N.S.W. Health Regulations and proposed National A.N.Z.F.A. Regulations) ESWOOD OPERATING MANUAL ES-100 June 2011...

  • Page 10: Shutdown And Maintenance

    Clean the exterior of the machine with a damp sponge. Do not pass water over the electrical controls and do not use abrasive or strong detergents. Leave the inspection doors open to allow the machine to air. ESWOOD OPERATING MANUAL ES-100 June 2011...

  • Page 11: Curtain Location

    URTAIN OCATION ES-100 LEFT TO RIGHT OPERATION ABOVE ES-100 - WITH DRYER LEFT TO RIGHT OPERATION NOTE OPPOSITE DIRECTION OF FEED WILL BE MIRROR IMAGE ESWOOD OPERATING MANUAL ES-100 June 2011...
  • Page 12 (c) Check if overflow pipes are seated correctly in wash tank. Possible foreign matter under “O” ring. (d) Check fill solenoid valve for possible malfunction or obstruction. If diaphragm punctured, replace. Replace valve if faulty. ESWOOD OPERATING MANUAL ES-100 June 2011...
  • Page 13 (d) Check temperature of tanks. If incorrect check thermostat settings, heating elements and contactors. (e) Check that all pumps are functioning. If not, check overload relays. Reset if necessary and check amperage draw. (f) Remove and clean all strainers. ESWOOD OPERATING MANUAL ES-100 June 2011...
  • Page 14 (a) Check that thermometer reading is correct and thermometer is not faulty. (b) Ensure that temperature of incoming water supply is at 60°C minimum. (c) Check thermostat to boiler is functioning and set correctly. ESWOOD OPERATING MANUAL ES-100 June 2011...

  • Page 15: Spare Parts

    PARE ARTS ESWOOD OPERATING MANUAL ES-100 June 2011...

  • Page 16: Spare Parts & Service

    Free Number: (Applicable to landline only charges apply for calls made from a Mobile Phone) 1800 013 123 This number will automatically access your nearest State office, or the technician on duty if after hours. After hours charges apply. ESWOOD OPERATING MANUAL ES-100 June 2011...
