Eswood B42GN Equipment Manual

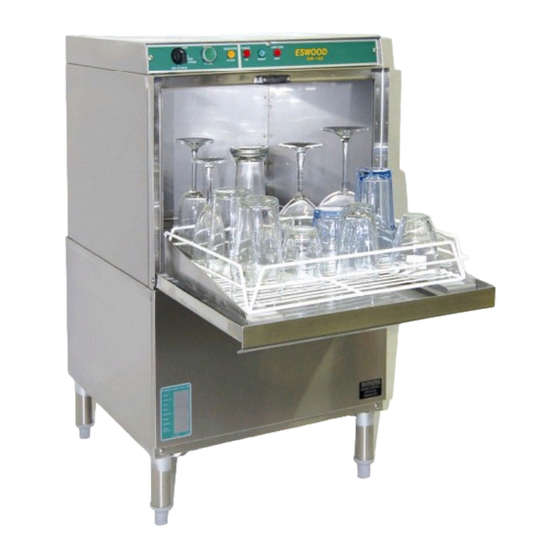

Professional dish washer
Hide thumbs

Advertisement

Table of Contents

EQUIPMENT MANUAL
FOR
B42GN PROFESSIONAL
DISH WASHER
JUNE 2011
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B42GN and is the answer not in the manual?

Questions and answers

Related Manuals for Eswood B42GN

Summary of Contents for Eswood B42GN

  • Page 1 EQUIPMENT MANUAL B42GN PROFESSIONAL DISH WASHER JUNE 2011...

  • Page 2: Table Of Contents

    ABLE OF CONTENTS Important: Prior to Installation Technical Specifications Installation Initial Start-up Procedure Washing Operation Shutdown and Maintenance Trouble Shooting 10 & 11 Drawings Spare Parts 12,13,14,15,16 Wiring Diagram Spare Parts & Service ESWOOD OPERATING MANUAL B42N/June 2011...

  • Page 3: Important: Prior To Installation

    (Note: Travel time not covered by warranty) In no event will ESWOOD AUSTRALIA be liable for loss of facilities or other property and such things as, but not limited to, additional labour costs, loss of revenue or anticipated profits, and other damages of any kind whether direct, indirect, incidental or consequential.

  • Page 4: Technical Specifications

    3 Litres per cycle Electrical and Water Consumption Electrical Input 240V, 50Hz, 1 phase, 14 Amps max Hot Water Input C @ 200 kPa to 400 kPa Hose with ” B.S.P. fitting Drain Outlet 11/2” B.S.P. gravity fed. ESWOOD OPERATING MANUAL B42N/June 2011...

  • Page 5: Installation

    Ensure that the rotary switch is “OFF” and connect the three pin plug lead to a 15 Amp, 240V, 50Hz, 1 phase power outlet. Note that any electrical work is to be done in accordance with the rating plate on the lower panel. IN RUN POSITION ESWOOD OPERATING MANUAL B42N/June 2011...

  • Page 6: Initial Start-Up Procedure

    NITIAL START UP PROCEDURE With the rotary switch “OFF” turn the hot & cold water and power Open the door, ensure the overflow tube is placed into the tank drain flange and pump intake filter is located over the pump suction hole (inside tank front) then close the door.
  • Page 7 Refit the lower front panel and if possible leave the door open to “Air” the machine CYCLE ROTARY START CYCLE SWITCH BUTTON LIGHT POWER LOW TEMP LIGHT ON LIGHT POWER FILL LOW TEMP. DRAIN FILL ESWOOD OPTION SCRUB CYCLE WAIT HOT & COLD START FILL LIGHT ESWOOD OPERATING MANUAL B42N/June 2011...

  • Page 8: Washing Operation

    Your supplier can advise you on the selection of an appropriate rack. 6. When the washing is finished, open the door and remove the clean rack. To wash another rack repeat from step 5. ESWOOD OPERATING MANUAL B42N/June 2011...

  • Page 9: Shutdown And Maintenance

    Clean the exterior of the machine with a damp sponge. Do not pass water over the electrical controls and avoid abrasive or strong detergents. Check for leaks and ensure that the arms rotate freely. Leave the door open if possible to allow the machine to air. ESWOOD OPERATING MANUAL B42N/June 2011...

  • Page 10: Trouble Shooting 10

    O-ring of the pipe. (c) Check for obstruction in the water supply solenoid valve and clean if necessary. Check diaphragm and replace if punctured. (d) Check pressure switch operation. ESWOOD OPERATING MANUAL B42N/June 2011...
  • Page 11 If so, remove and clean filter. Insufficient rinse (a) Ensure that temperature of temperature incoming water supply is at least 65 (b) Check that rinse tank thermostat is set correctly and functioning. (c) Check rinse tank elements. ESWOOD OPERATING MANUAL B42N/June 2011...
  • Page 12 RAWINGS ESWOOD OPERATING MANUAL B42N/June 2011...
  • Page 13 8 B-42 Code Description B-42A09 TOP CONROL ASSY B-42A11 TOP CONTROL ASSY B-1322 DOOR HINGE ROD B-42A05 DOOR ASSY B-42A07 RACK GUIDE ASSY B-42P25 FRONT PANEL CF-107 PLASTIC ADJ FEET MLEPLA04 STAINLESS STEEL ADJUSTABLE LEG ESWOOD OPERATING MANUAL B42N/June 2011...
  • Page 14 PARE ARTS ESWOOD OPERATING MANUAL B42N/June 2011...
  • Page 15 SC-403 M5 X12MM PAN SCREW A-2560-1 DOOR HINGE ROD B-42A21 LOWER DISCHARGE CASTING ASSY B-42M02-1 WASH ARM BEAROING PIN PF-701 RINSE JET ES-25 PF-509P CAP 3/8 X 26 TPI THD – BRA B-1108 THRUST SCREW ESWOOD OPERATING MANUAL B42N/June 2011...
  • Page 16 16MM CABLE GLAND IP68 EP-149 STRIP CONNECTOR 12 POLE 3 B-42P19 CONTROL PANEL EP-156 TRANI LAMP RED EP-157 TRANI LAMP GREEN EP-158 TRANI LAMP AMBER SS-201 START BUTTON (GREEN) SS-255 ROTARY SWITCH 16A 43MM LEVER ESWOOD OPERATING MANUAL B42N/June 2011...

  • Page 17: Wiring Diagram

    IRING IAGRAM ESWOOD OPERATING MANUAL B42N/June 2011...

  • Page 18: Spare Parts & Service

    (Applicable to landline only charges apply for calls made from a Mobile Phone) 1800 013 123 This number will automatically access your nearest State office, or the technician on duty if after hours. After hours charges apply. ESWOOD OPERATING MANUAL B42N/June 2011...
