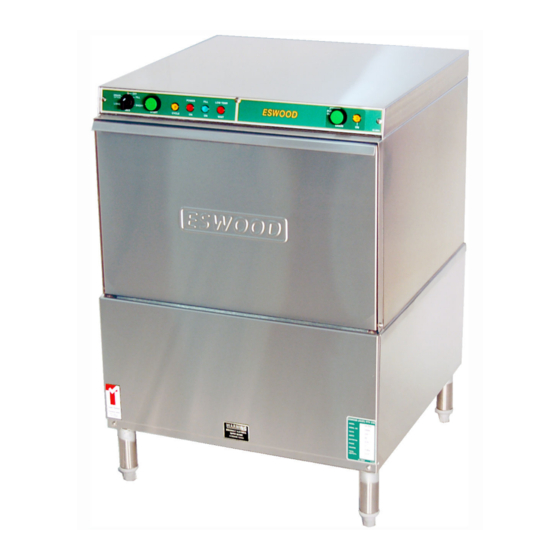

EQUIPMENT MANUAL
FOR
UC25NLT & UC25NDPLT PROFESSIONAL
DISH WASHER
JUNE 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC25NDPLT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eswood UC25NDPLT

Summary of Contents for Eswood UC25NDPLT

  • Page 1 EQUIPMENT MANUAL UC25NLT & UC25NDPLT PROFESSIONAL DISH WASHER JUNE 2011...

  • Page 2: Table Of Contents

    ABLE OF CONTENTS Important: Prior to Installation Technical Specifications Installation Initial Start-up Procedure Washing Operation Shutdown and Maintenance Trouble Shooting 10 & 11 Drawings Spare Parts 12,13,14,15,16 Wiring Diagram Spare parts & service ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...

  • Page 3: Important: Prior To Installation

    (Note: Travel time not covered by warranty) In no event will ESWOOD AUSTRALIA be liable for loss of facilities or other property and such things as, but not limited to, additional labour costs, loss of revenue or anticipated profits, and other damages of any kind whether direct, indirect, incidental or consequential.

  • Page 4: Technical Specifications

    20 amps plug & lead, requires 20 amp socket Hot Water Input min 45 C @ 200 kPa to 400 kPa Hose with ” B.S.P. fitting Drain Outlet 11/2” B.S.P. gravity fed. ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...

  • Page 5: Installation

    Connect the three pin plug lead to a 20 amp, 240V, 50Hz, 1 phase power outlet. Note that any electrical work is to be done in accordance with the rating plate on the lower panel. IN RUN POSITION ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...

  • Page 6: Initial Start-Up Procedure

    Open the door check that the wash tank level is within 30mm of the overflow level. Place strainer trays in position within the tank, close the door, and turn the toggle switch behind the lower panel to the “Run” position. ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...
  • Page 7 “strainer trays” and remove the “overflow Tube” to drain tank. Place the overflow tube back in position. Refit the lower front panel and if possible leave the door open to “Air” the machine ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...

  • Page 8: Washing Operation

    Your supplier can advise you on the selection of an appropriate rack. 6. When the washing is finished, open the door and remove the clean rack. To wash another rack repeat from step 5. ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...

  • Page 9: Shutdown And Maintenance

    Check for leaks and ensure that the arms rotate freely. Leave the door open if possible to allow the machine to air. ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...

  • Page 10: Trouble Shooting 10

    O-ring of the pipe. (c) Check for obstruction in the water supply solenoid valve and clean if necessary. Check diaphragm and replace if punctured. (d) Check pressure switch operation. ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...
  • Page 11 Insufficient rinse (a) Ensure that temperature of temperature incoming water supply is at least 65 (b) Check that rinse tank thermostat is set correctly and functioning. (c) Check rinse tank elements. ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...
  • Page 12 RAWINGS ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...
  • Page 13 ARTS 8 UC-25N Code Description UC-25PI5 TOP CONROL PANEL UC-25A11 TOP CONTROL ASSY UC-25R01 DOOR HINGE ROD UC-25-A07 DOOR ASSY UC-25A08 RACK GUIDE ASSY UC-25P19 FRONT PANEL MLEPLA04 STAINLESS STEEL ADJUSTABLE LEG ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...
  • Page 14 PARE ARTS ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...
  • Page 15 DOOR HINGE ROD B-42A21 LOWER DISCHARGE CASTING ASSY B-42M02-1 WASH ARM BEARING PIN PF-701P RINSE JET ES-25 PF-509P CAP 3/8 X 26 TPI THD – BRA B-1108 THRUST SCREW SS-236 RELAY AC-COIL 240 ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...
  • Page 16 S/S HOSE CLAMP SS-236 240V RELAY AS COIL RT-135 5MM RUBBER HOSE UC-25C02 BOTTOM WASH SUPPORT NUT PF-609P 1 ½” HEX BACK NUT FLANGE 620120 RINSE AID INJECTOR RT-134 5MM CLEAR TUBE ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...

  • Page 17: Wiring Diagram

    IRING IAGRAM ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...

  • Page 18: Spare Parts & Service

    (Applicable to landline only charges apply for calls made from a Mobile Phone) 1800 013 123 This number will automatically access your nearest State office, or the technician on duty if after hours. After hours charges apply. ESWOOD OPERATING MANUAL UC-25NL & UC-25NDPL June 2011...

This manual is also suitable for:
