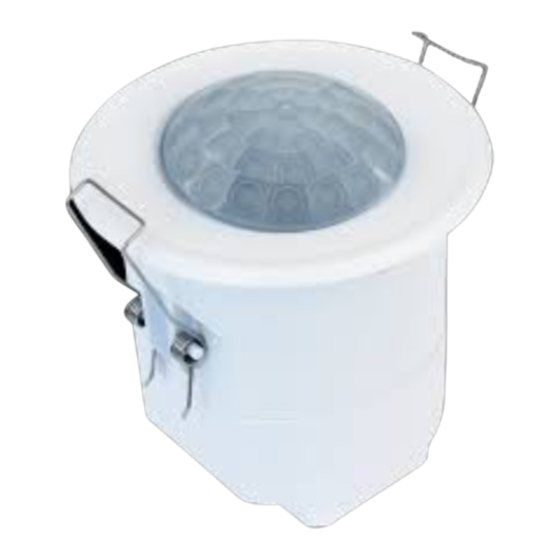

Hytronik HBIR29/NLC/RH Installation And Instruction Manual

Installation and Instruction Manual
PIR Standalone Motion Sensor with
One DALI Channel Output
1. Technical Specifications
Operation frequency
Transmission power
Range (Typical indoor)
Protocol
Operating voltage
Stand-by power
Switched power
Warming-up
Sensor principle
Detection range (Max.)*
HBIR29/SV/RH
Detection angle
Operation temperature
IP rating
Standard compliance
Certification
2. Download the App
The access to Silvair apps
mobile app: Silvair on the App Store
web app: platform.silvair.com
Wire Preparation
Subject to change without notice.
2.4 GHz - 2.483 GHz
4 dBm
10~30m
Mesh
220~240VAC 50/60Hz
<0.65W (Empty load)
Max. 40 devices, 80mA
5s
PIR detection
Installation height：20m (forklift)
12m (person)
Detection range (Ø)：40m
360 O
Ta:-20 O C~+50 O C
IP20
EN300328, EN301489-1,
EN301489-17, EN62479,
EN55015, EN61547,
EN60669-1, EN60669-2-1,
EN62493
CE
Download on the
APP Store
0.75 - 2.5mm
7-8mm
Mesh

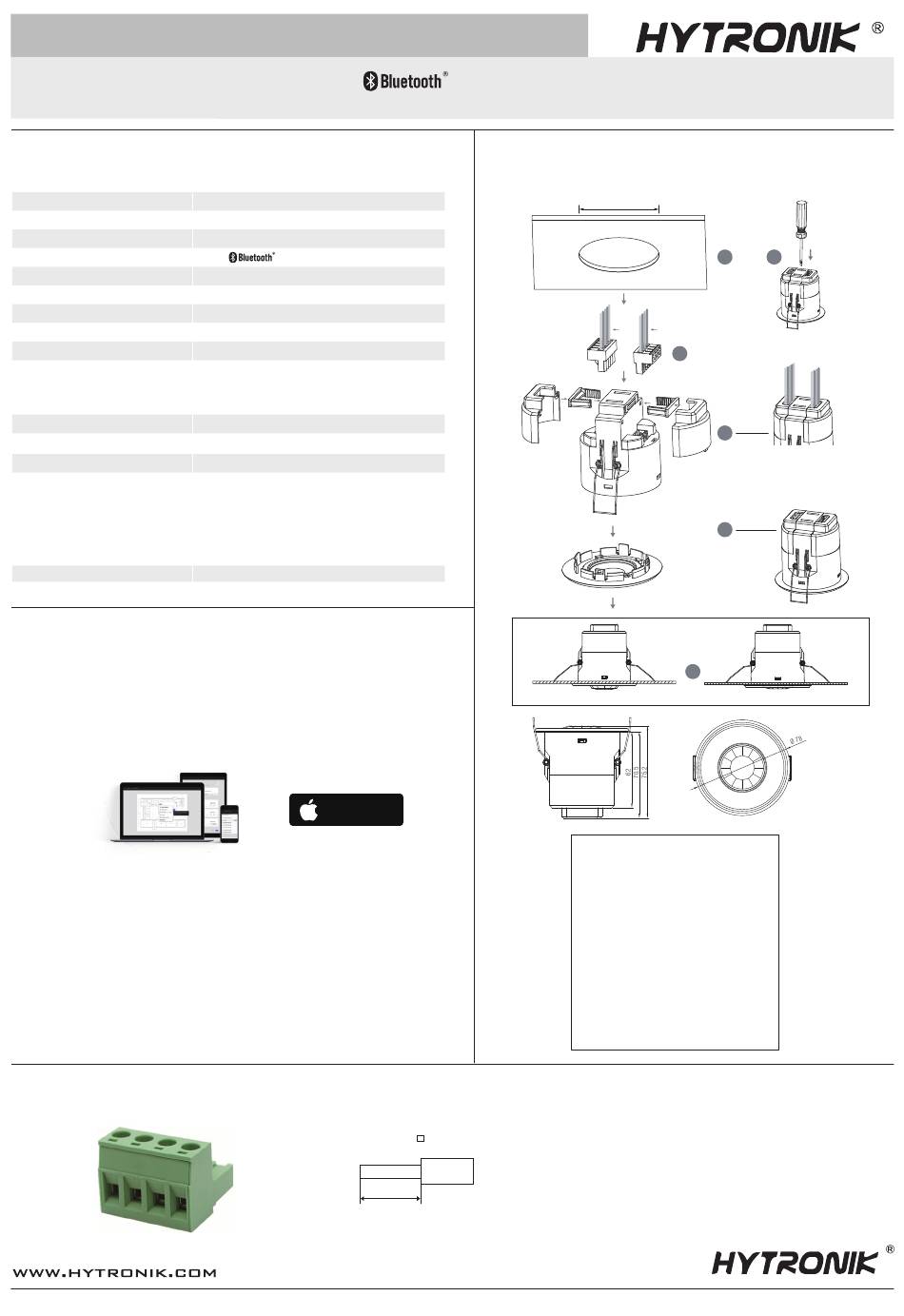

3. Installation
Mechanical Structure & Dimensions
Ø 66~68mm
1
1. Ceiling (drill hole φ66~68mm)
2. Carefully prise off the cable clamps.
3. Make connections to the pluggable
terminal blocks.
4. Insert plug connectors and secure using
the provided cable clamps, then clip
terminal covers to the base.
5. Fit detection blind (if required) and
desired lens.
6. Clip fascia to body.
7. Bend back springs and insert into ceiling.
Pluggable screw terminal. It is recommended to make
connections to the terminal before fitting to the sensor.
HBIR29/SV/RH
1 2
3
4
5
6
2
