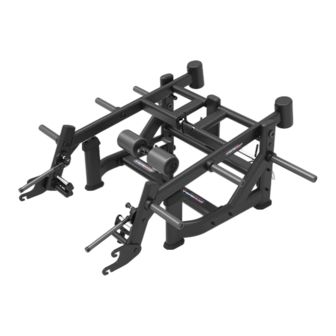

Precor GluteBuilder GPL551/DLE Owner's Manual

Precor GluteBuilder GPL551/DLE Owner's Manual

Deadlift elite

Advertisement

Quick Links

GPL551/DLE
DEADLIFT ELITE
OWNER'S MANUAL
CAUTION! Read all precautions and instructions in this manual before
using this equipment.
GPL551SMS01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GluteBuilder GPL551/DLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Precor GluteBuilder GPL551/DLE

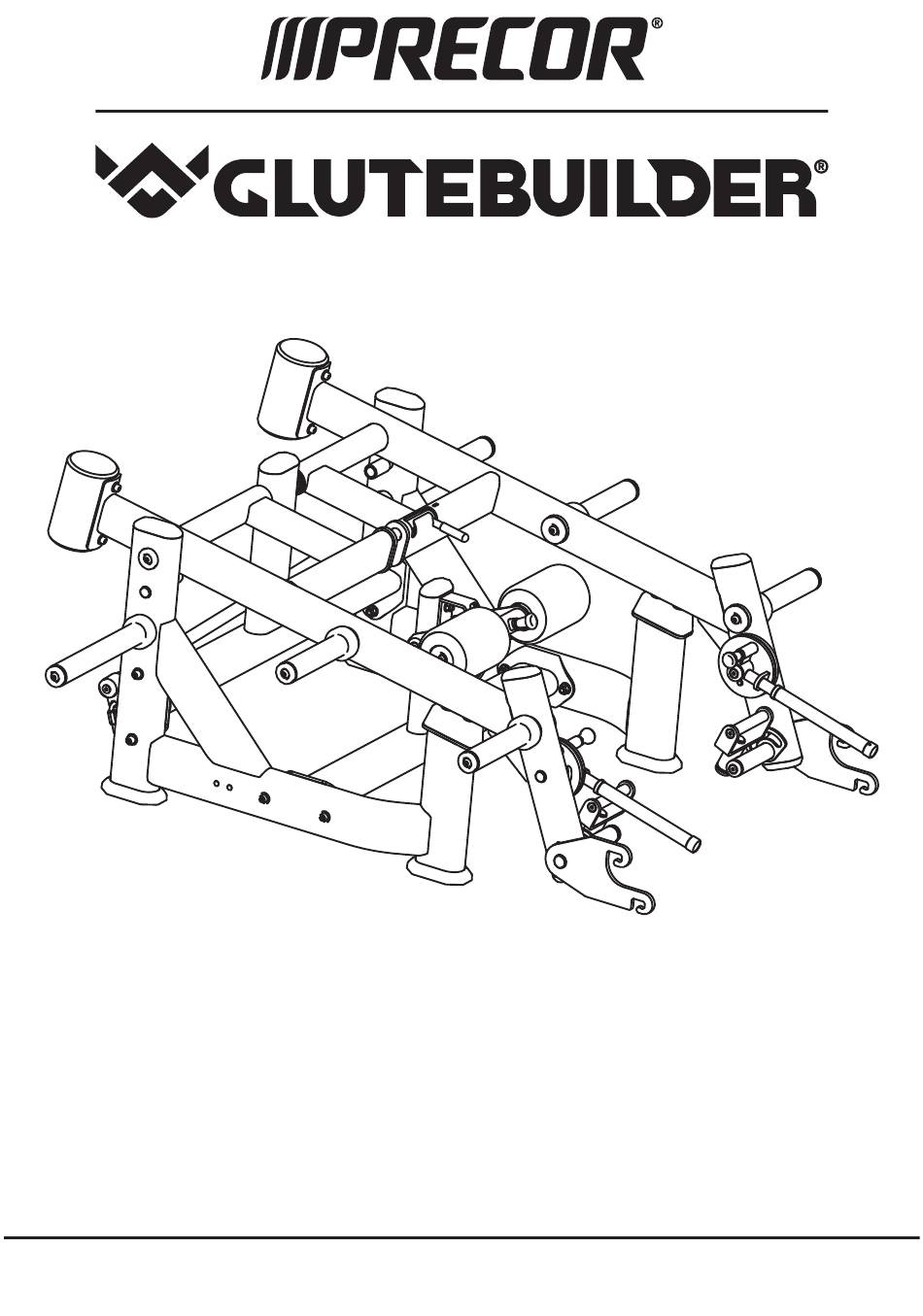

  • Page 1 GPL551/DLE DEADLIFT ELITE OWNER'S MANUAL CAUTION! Read all precautions and instructions in this manual before using this equipment. GPL551SMS01...
  • Page 2: Table Of Contents

    Table Of Contents CAUTION! Read all precautions and instructions in this manual before using this equipment. Important Safety Instructions----------------------------------------------------------- 3 Instructions-------------------------------------------------------------------------------- 5 Exploded View and Parts List------------------------------------------------------------ 6 Measurement Guide--------------------------------------------------------------------- 18 Assembly Instructions------------------------------------------------------------------ 19 Assembly--------------------------------------------------------------------------------- 20 Adjust Instructions and Exercise Instructions---------------------------------------- 24 Maintenance Schedule------------------------------------------------------------------ 25 General Maintenance Information----------------------------------------------------- 26 Weight Training Tips-------------------------------------------------------------------- 27...
  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following: 1. Read all instructions before using the equipment. These instructions are written to ensure your safety and to protect the unit. 2.
  • Page 4 Important Safety Instructions Personal Safety During Assembly Read each step in the assembly instructions and follow the steps in sequence. Do not skip ahead. If you skip ahead, you may learn later that you have to disassemble components and that you may have damaged the equipment. Assemble and operate the equipment on a solid, level surface.
  • Page 5: Instructions

    Instructions Before beginning assembly please take the time to read instructions thoroughly. Please use the various lists in this manual to make sure that all parts have been included in your shipment. When ordering, use part number and description from the lists.
  • Page 6: Exploded View And Parts List

    Exploded View and Parts List Overall Item No. Part No. Description DLEGB01ASSY / DLE01ASSY FrameⅠASSY DLE04ASSY Movable Support FrameⅠASSY DLE09ASSY Oscillating Support Frame ASSY DLE10ASSY Upper Connection Bracket Frame ASSY PKB1700 Balanced Iron DLE4400 Long Axis Of Rotation DLE14ASSY Handle Frame ASSY PKB3100 Large Elliptical Pipe Plug R60*120 Frame Ⅱ...
  • Page 7 Exploded View and Parts List Overall...
  • Page 8 Exploded View and Parts List Frame I ASSY (fit for DLE) Item No. Part No. Description DLE0100 FrameⅠ PKB3100 Large Elliptical Pipe Plug R60*120 PKB3200 Floor Mat IN-D10135000 Limit Sleeve PL380800 Buffer Pad 120*140*52 DQ12DY2B Flat Washer Φ13*Φ26*2 GB70M12*30DY20 Socket Head Cap Screw 12*30 YZGB290.25*20*18DS20 Hex Head Cap Screw 1/4*20 PKB3400...
  • Page 9 Exploded View and Parts List Frame I ASSY (fit for GPL551) Item No. Part No. Description DLE0100 FrameⅠ PKB3100 Large Elliptical Pipe Plug R60*120 PKB3200 Floor Mat IN-D10135000 Limit Sleeve PL380800 Buffer Pad 120*140*52 DQ12DY2B Flat Washer Φ13*Φ26*2 GB70M12*30DY20 Socket Head Cap Screw 12*30 YZGB290.25*20*18DS20 Hex Head Cap Screw 1/4*20 VBR6117-BOM05...
  • Page 10 Exploded View and Parts List Movable Support Long Handle Frame I ASSY Frame I ASSY Item No. Part No. Description Movable Support Frame Ⅰ DLE0400 C015PL2300 Limit Sleeve GB2766205-2ZC3 Bearing 6205-2ZC3 PKB3300 Large Elliptical Pipe Plug R50*100 DLE07ASSY Long Handle FrameⅠASSY DLE06ASSY Short Handle FrameⅠASSY IN-D21202000V1...
  • Page 11 Exploded View and Parts List Short Handle Oscillating Support Frame I ASSY Frame ASSY Item No. Part No. Description 2.6.1 DLE0600 Short Handle Retainer FrameⅠ 2.6.2 DLE1600 Short Handle FrameⅠ 2.6.3 DLE4100 Short Handle Shaft 2.6.4 M02502000 Bushing Φ25.4 2.6.5 IN-D21202000V1 Aluminium Cap Φ38 2.6.6...
  • Page 12 Exploded View and Parts List Handle Framet ASSY Upper Connection Bracket Frame ASSY Item No. Part No. Description DLE1400 Handle Frame DLE4800 Aluminium Cap Φ44 BB-BS1003 Bushing R20.1 AXT21901 Connector CMJ6101A2710 Quick Connector CNLM10*25DS20NL Flat Head Cap ScrewM10*25 Item No. Part No. Description DLE1000 Upper Connection Bracket Frame...
  • Page 13 Exploded View and Parts List Frame II ASSY Item No. Part No. Description Frame Ⅱ DLE0200 PKB3100 Large Elliptical Pipe Plug R60*120 PKB3200 Floor Mat IN-D10135000 Limit Sleeve PL380800 Buffer Pad 120*140*52 DQ12DY2B Flat Washer Φ13*Φ26*2 GB70M12*30DY20 Socket Head Cap Screw M12*30 YZGB290.25*20*18DS20 Hex Head Cap Screw 1/4*20...
  • Page 14 Exploded View and Parts List Movable Support Frame II ASSY Item No. Part No. Description 10.1 DLE0500 Movable Support FrameⅡ 10.2 GB2766205-2ZC3 Bearing 6205-2ZC3 10.3 DLE2100 Latch Shaft 10.4 SL70403000 Handle 10.5 CG50001700P170C Grip 10.6 C015PL2300 Limit Sleeve 10.7 PKB3300 Large Elliptical Pipe Plug R50*100 10.8 DLE08ASSY...
  • Page 15 Exploded View and Parts List Long Handle Frame Short Handle Frame II ASSY II ASSY Item No. Part No. Description 10.8.1 DLE0800 Long Handle FrameⅡ 10.8.2 DLE26ASSY Plug Pin ASSY 10.8.3 M02502000 Bushing Φ25.4 10.8.4 SD1004B1600 Grip 10.8.5 V39600V2 Aluminum Grip Cap Φ25.4 10.8.6 YZGB7710-32*3.2DY2 Socket Set Screw 10-32*3.2...
  • Page 16 Exploded View and Parts List Support Frame ASSY Curved Regulating Plate ASSY Item No. Part No. Description 11.1 DLE0300 Support Frame 11.2 HVCORE5300 Bushing Φ19 11.3 PKB3300 Large Elliptical Pipe Plug R50*100 Item No. Part No. Description 12.1 HSP70512200ZH Curved Regulating Plate 12.2 IN-S10111200 Limit Sleeve...
  • Page 17 Exploded View and Parts List Barbell Storage Frame ASSY Barbell Frame ASSY FOAM ASSY Item No. Part No. Description 13.1 DLE1100 Barbell Storage Frame 13.2 PL1301600 Buffer Pad Φ76*26 13.3 BB-PL5000V1 Aluminium Cap Φ49*Φ12.5*10 13.4 PNLM12*25DY20NL Button Head Cap ScrewM12*25 13.5 HTE2400 Long Barbell Casing...
  • Page 18: Measurement Guide

    Measurement Guide BHCS = Button Head Cap Screw SHCS = Socket Head Cap Screw FHCS = Flat Head Cap Screw HHB = Hex Head Bolt CRPHS = Cross Recessed Pan Head Screw Millimeters Inches Diameter of bolt M6(1/4") M8(5/16") M10(3/8") M12(1/2") M16(5/8") (mm/inch)
  • Page 19: Assembly Instructions

    Assembly Instructions Assembly of the equipment takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone.
  • Page 20: Assembly

    Assembly STEP 1 Attach one Frame I ASSY (#1) and one Frame II ASSY (#9) to one Upper Connection Bracket Frame ASSY (#4) and one Support Frame ASSY (#11), using: eight M12*85 Socket Head Cap Screw (#19) sixteen Φ13*Φ26*2 Flat Washer (#20) eight M12 Nylon Lock Nut (#21) Note: No Need To Tighten Bolts.
  • Page 21 Assembly STEP 2 1. Attach one Curved Regulating Plate ASSY (#12) to one Support Frame ASSY (#11), using: two M10*75 Socket Head Cap Screw (#30) four Φ11*Φ23*2 Flat Washer (#16) two M10 Nylon Lock Nut (#29) 2. Attach two FOAM ASSY (#15), two Ring Φ60*Φ26*12 (#27) and two Aluminium Cap Φ63 (#18) to one Oscillating Support Frame ASSY (#3), using: two M10*25 Button Head Cap Screw (#31) 3.
  • Page 22 Assembly STEP 3 1. Attach one Movable Support Frame I ASSY (#2) to one Frame I ASSY (#1) and one Upper Connection Bracket Frame ASSY (#4), using: one Long Axis Of Rotation (#6) one Φ49 Aluminium Cap (#17) one M12*25 Button Head Cap Screw (#22) one M12*35 Button Head Cap Screw (#23) one Φ13*Φ26*2 Flat Washer (#20) 2.
  • Page 23 Assembly STEP 4 1. Attach two Barbell Storage Frame ASSY (#13) to one Frame I ASSY (#1) and one Frame II ASSY (#9), using: two Φ49 Aluminium Cap (#17) two M12*35 Button Head Cap Screw (#23) 2. Attach four Barbell Frame ASSY (#14) to one Movable Support Frame I ASSY (#2) and one Movable Support Frame II ASSY (#10), using: four Φ63 Aluminium Cap (#18) four M12*35 Button Head Cap Screw (#23)
  • Page 24: Adjust Instructions And Exercise Instructions

    Adjust Instructions and Exercise Instructions FOAM adjust Instructions Pull the Spring Pin and adjust the FOAM to the desired psition, then lock the Spring Pin. Weight Instructions Put the applicable weight of the barbell plate on the barbell rack. weight Horn FOAM Spring Pin Handle...
  • Page 25: Maintenance Schedule

    Maintenance Schedule COMMERCIAL HOME LATEST DATE ENTRY ROUTINE MAINTENANCE MAINTENANCE Inspect; Links, Pull Pins, Snap Locks, DAILY WEEKLY Swivels, Weight Stack Pins Clean; DAILY WEEKLY Upholstery Inspect; DAILY WEEKLY Cables or Belts and their tension Inspect; WEEKLY 3 MONTHS Accessory Bars, and Handles Inspect;...
  • Page 26: General Maintenance Information

    General Maintenance Information Links, Pull-Pins, Snap Hooks, Swivels, Weight Stack Pins: * Check all pieces for signs of visible wear or damage. * Check springs in snap hooks and pull-pins for proper tension and alignment. * If the spring sticks or has lost its rigidity, replace it immediately. Upholstery: * To ensure prolonged upholstery life and proper hygiene, all upholstered pads should be wiped down with a damp cloth after every workout.
  • Page 27: Weight Training Tips

    Weight Training Tips Use this manual to guide you through the basic exercises you can perform on your equipment. To gain maximum results and avoid possible injury, consult a fitness professional to develop your complete exercise program. Always consult your physician before starting any exercise program. To be successful in your exercise program, it is important to develop an understanding of the basic principles of strength training.
