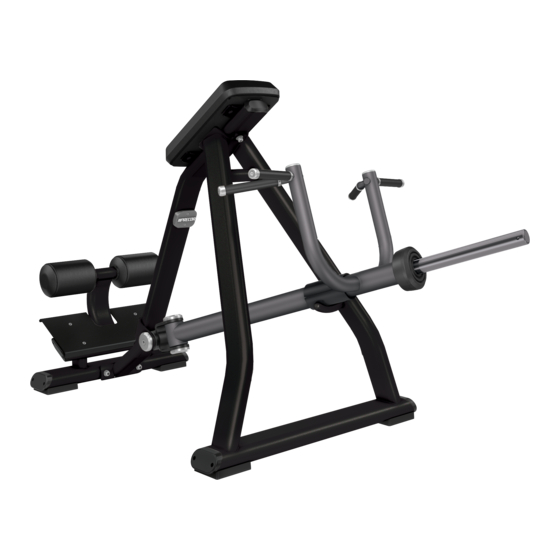

Discovery™ Series Plate Loaded Line Incline Lever Row (311) Assembly Guide
To assemble your equipment, follow the steps in the order listed in this assembly guide.
For more product information, visit us at www.precor.com.
WARNING At least two people are required to assemble the equipment.
DO NOT attempt assembly by yourself.
Assembly requirements
When assembling the equipment, we recommend you:
Unpack the box and assemble the equipment close to where you plan to use it.

Locate the equipment at least 40 inches (1 meter) away from walls or furniture on

either side of the equipment, and 40 inches (1 meter) away from objects behind or in
front of the equipment.
Assemble the equipment on a solid, flat surface, so that it remains level and stable.

DO NOT move the equipment without assistance.


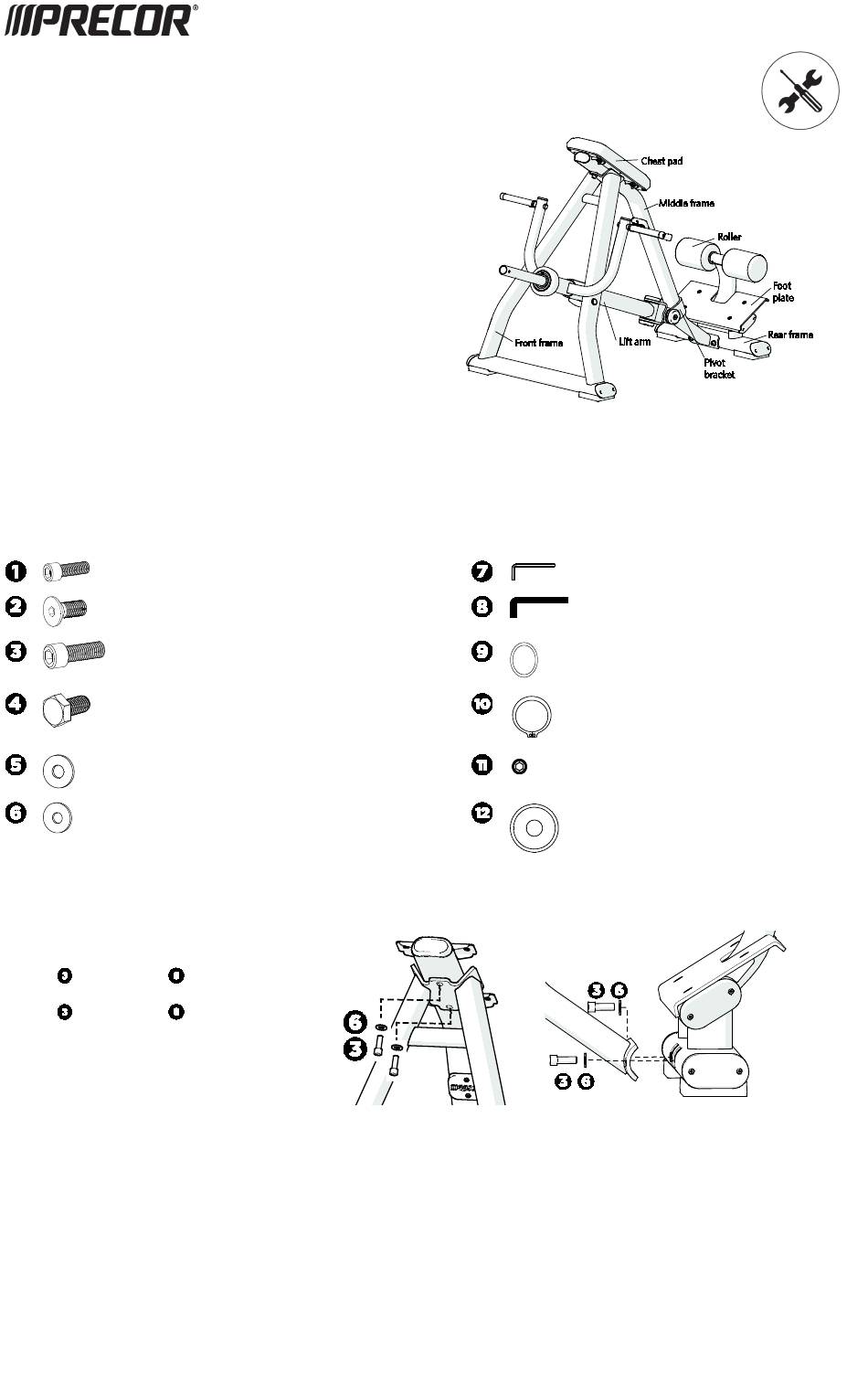

Specifications
Equipment Dimensions
Equipment Weight
Hardware kit
Component
Socket head cap bolt (M10 × 25 mm)
Flat head cap bolt (M12 × 35 mm)
Socket head bolt (M12 × 35 mm)
Hex head cap screw (M10 x 30 mm)
Flat washer (11 x 23 mm)
Flat washer (13 x 26 mm)
Begin Assembly
Important DO NOT fully tighten the fasteners until instructed to do so.
To assemble the frame:
1. Attach the front frame to the middle frame using two
bolts and two washers
2. Attach the rear frame to the middle frame using two
bolts and two washers
3. Fully tighten the bolts.
75" L x 39" W x 47" H (1905 mm L x 980 mm W x 1205 mm H)
191 lb (87 kg)
(Figure 1).
(Figure 2).
Quantity Component
4
2
4
4
4
4
Figure 1
Quantity
Hex key (8 mm) 2
Hex key (10 mm) 1
Wave spring washer 4
Circlip 2
Set screw (M8 x 6 mm) 2
Aluminum cap 2
Figure 2
