Mounting Angles - Modine Manufacturing MRS Series Installation And Service Manual

MRS Series
In locations used for the storage of combustible materials, signs must be posted to specify the maximum
permissible stacking height to maintain the required clearances from the heater to the combustibles. Signs
must either be posted adjacent to the heater's thermostat or in a conspicuous location.
The stated clearance to combustibles represents a surface temperature of 90°F (50°C) above room
temperature. Building materials with a low heat tolerance (such as plastics, vinyl siding, canvas, tri-ply,
etc.) may be subject to degradation at lower temperatures. It is the installer's responsibility to ensure that
adjacent materials are protected from degradation.

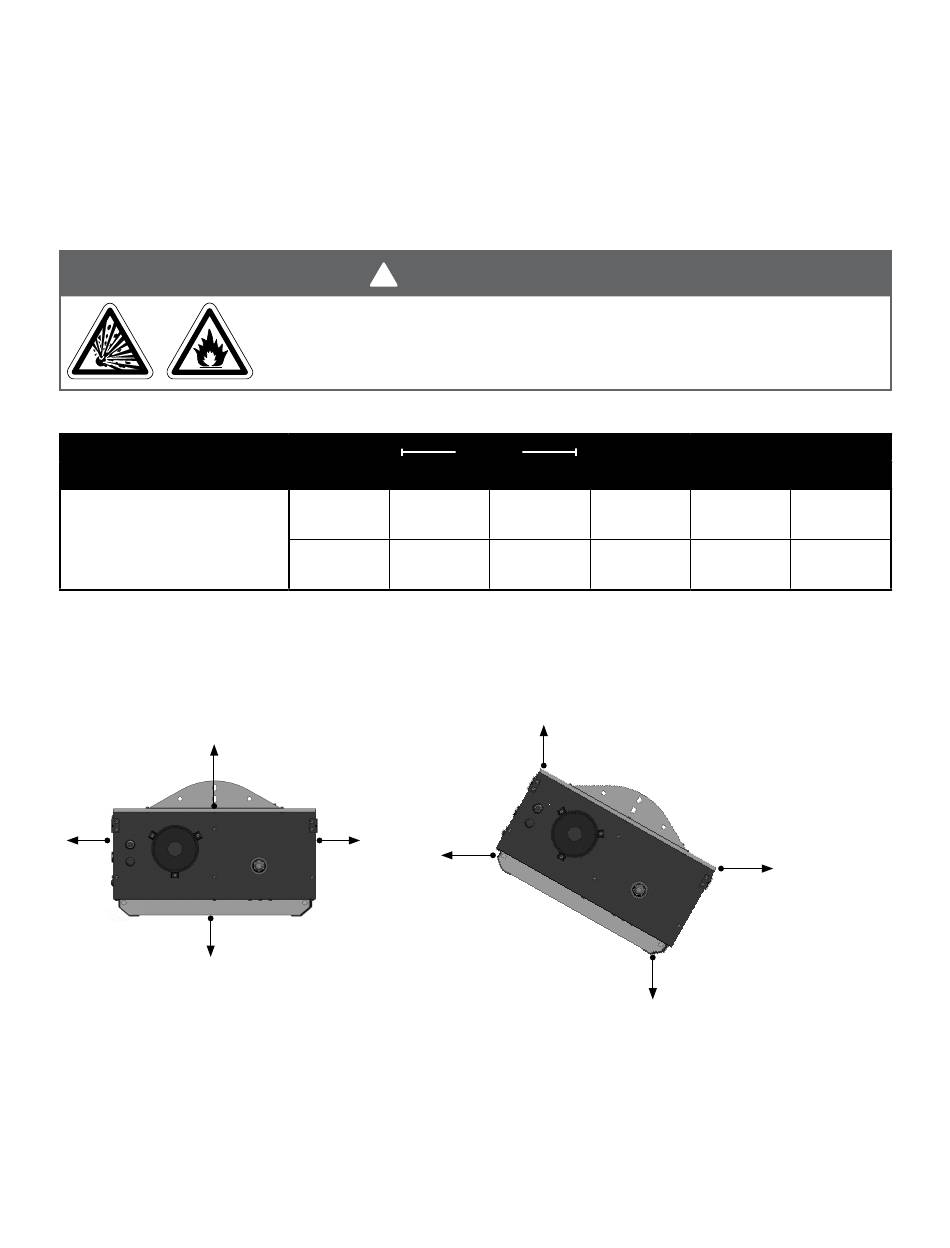

Chart 2.2 • Clearances to Combustible Materials in Inches (see Figure 2.1)
Model Number
MRS-15-50[N, P]
*
Heaters mounted on an angle between 0° and 30° must maintain clearances posted for 0° or 30°, whichever is greater.
Figure 2.1 •

Mounting Angles

0° Mounting Angle
Top
Side
Below
WARNING
!
Failure to comply with the stated clearances to combustibles may result in
personal injury, property damage, and/or death.
Mounting
Angle* Front
0° 14
30° 25
Side
2.0 Safety
Sides
Behind Top
14 10
10 12
30° Mounting Angle
Top
Front
Below
9
• Clearances to Combustibles
Below End
50 12
40 12
Behind
