R50
B2-CRX
/ معwith
رسومات فنية للمشروعات
Technical drawings for projects
See page 12
عامل
مزود الطاقة
بوابة الحد األقصى للوزن
الشفرة
Operator
Power Supply
Max gate weight
Code
R50
AA21580
230V 50/60Hz
2000 kg / 4460 lbs
R50 ICE
AA21581
RIB يتم ضمان التشغيل الصحيح للمشغل فقط في حالة إدارته بواسطة لوحة تحكم
The correct operation of the operator is guaranteed only if it is managed by a RIB control panel
1
3 / الصفحة العربيةENGLISH page 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RIB R50
Summary of Contents for RIB R50
- Page 1 R50 ICE AA21581 RIB يتم ضمان التشغيل الصحيح للمشغل فقط في حالة إدارته بواسطة لوحة تحكم The correct operation of the operator is guaranteed only if it is managed by a RIB control panel 3 / الصفحة العربيةENGLISH page 5...
- Page 2 الحد األدنى وsqmm 1،5 معH05RN -F برقية نوعRIB 2 ° - لل قسم ونوع من النصائح الستخدام الكابالت 3° - Positioning of a possible couple of photoelectric cells: the radius of the photoelectric cells ....
- Page 3 R50 WITH B2-CRX تعليمات مبسطة حول R=2,2K 1/4W 24Vdc 0,4A ±15% -A + / A 24Vdc 0,4A ±15% 230Vac 40W 230Vac 50 Hz...
- Page 5 SIMPLIFIED INSTRUCTIONS FOR R50 WITH B2-CRX 700 W MAX COMMON LIMIT SWITCH OPEN M1 LIMIT SWITCH CLOSE M1 LIMIT SWITCH OPEN M2 LIMIT SWITCH CLOSE M2 COMMON STOP PHOTOCELL 1 PHOTOCELL 2 EDGE 1 EDGE 2 COMMON TIMER PEDESTRIAN ANTENNA...
-
Page 7: System Layout

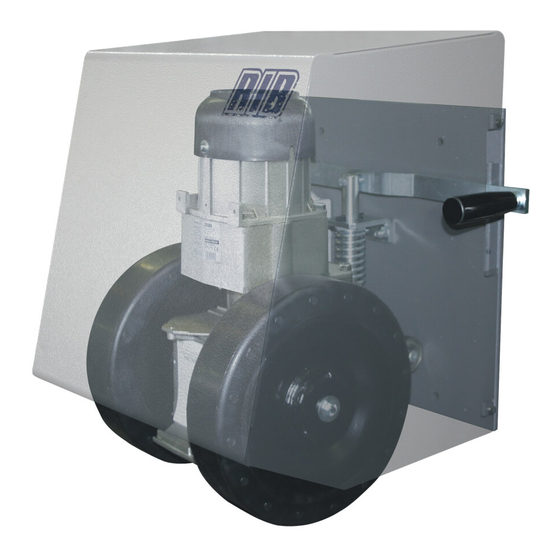

Gearmotor for operating industrial swing gates with overall maximum weight of 2000 kg. The R50 is an irreversible electric gearmotor with adjustable drive force, regulated by changing the pressure exerted by the drive wheels on the ground. The drive wheels are able to run over surface irregularities of up to 3 cm (approx.), because the gearmotor unit slides along a vertical track. -
Page 8: Pre-Installation Checks
Parts to install according to EN 12453 standard The leaf must be fixed firmily on the hinges to the pillars, must not be flexible during the movement and must move without frictions. The ground on which the R50 wheels run must be USE OF THE SHUTTER solid and compact with minimum gradient. -
Page 9: Maintenance
R50 APPLICATION ON MULTIPLE PANEL DOORS In this case the R50 must be installed on the first leaf. Olive Limit switch Wheels Ø120 Internal Limit switch Guide Mechanical stopper External EMERGENCY RELEASE To be undertaken after disconnecting power supply. In the event of a power failure, raise the side handle to lift the wheels OFF the ground. - Page 10 cod. AC08074 ELECTRIC CONNECTIONS 3x1,5mm 700 W MAX COMMON LIMIT SWITCH OPEN M1 LIMIT SWITCH CLOSE M1 LIMIT SWITCH OPEN M2 LIMIT SWITCH CLOSE M2 COMMON STOP PHOTOCELL 1 PHOTOCELL 2 EDGE 1 EDGE 2 COMMON TIMER PEDESTRIAN ANTENNA 433 MHz SINGLE COMMAND CLOSE ANTENNA...
- Page 11 V2 - W2 MOTOR 2 PHASES AND CAPACITOR CONNECTIONS Flashing light (max 40 W ) Radio Antenna 433MHz RADIO Connector for radio receiver RIB, 24 Vdc supply RADIO Connector for radio module ACG8069 reserved SERIAL COM/SYNC Connector for serial connection...
- Page 12 M2 - gate closing (red) B - SETTINGS STOP command (NC) (red) DIP 1 (ON) MOTORS ROTATION DIRECTION CHECK (SEE POINT C) PHOTO 1 contact (NC) (red) DIP 2 (ON) - SETTING THE TIMES (POINT D) PHOTO 2 contact (NC) (red) DIP 2-1 SETTING THE PEDESTRIAN OPENING TIMES (POINT E)
- Page 13 1 - Press the button on the valid remote control dedicated to fully opening the gate 3 times in Through the RIB GATE app it is possible to configure the operation of this relay as desired. rapid succession. The buzzer will sound once for 1 second and the flasher will flash for 4 Programming can be done only when the gate is stationary.
- Page 14 2 - During these 10 seconds press and hold the PROG button for 5 seconds. Memory cancellation OPERATION OF SAFETY ACCESSORIES is indicated by two green flashes of LED DL12 and two tones of the buzzer. 3 - LED DL12 blinks orange again for 10 seconds and you can add new codes as shown above. PHOTOCELLS (COM A+/PHOT 1, COM A+/PHOT 2) 4 - Re-Set DIP 1, 2, 3 to OFF.
-
Page 15: Visual And Sound Alarms
of the system. As soon as possible however, the failing safety devices must be repaired and - All the inputs must be used as clean contacts because the power supply is generated activated. internally (safe voltage) in the card and it is set in a way to guarantee the use of the double insulation and reinforced in relation to parts with hazardous voltage. - Page 16 The buzzer emits 2 long tones and the gate does not move Safety edge with 8,2 KΩ resistor. Remove the resistor or configure the EDGE input via the RIB GATE app The remote control does not work. Led DL12 lit red...
- Page 17 ACCESSORIES For the connections and the technical data of the optional equipments follow the relevant handbooks. RADIO TRANSMITTER SUN RADIO MODULE 433MHz code ACG8069 SUN 2CH cod. ACG6052 SUN 4CH cod. ACG6054 SUN CLONE 2CH cod. ACG6056 SUN CLONE 4CH cod.
- Page 18 FIT SLIM EN12978 - EN13849-2 SAIL 102.5 47.5 PHOTOCELLS for the wall-installation code ACG8032B SAIL orange with built-in flashing board code ACG7072 PAIR OF COLUMNS FOR FIT SLIM code ACG8065 SAIL white with built-in flashing board code ACG7078 FIT SLIM photocells have synchronism function in AC current and ranges of 20 m. SAIL LATERAL SUPPORT code ACG8054 You can fit many couples close together thanks to the synchronising circuit.
- Page 19 PHOTOCELLS CONNECTIONS 4 FIT SLIM / FIT SYNCRO photocells with self-test and infrared signal synchronizer 2 photocells FIT SLIM, FIT SYNCRO with self-test COM A+ TX SYNCRO COM A+ A+ TEST PHOT1 PHOT2 cod. ACG8028 A+ TEST PHOT1 PHOT2 cod. ACG8029 A*D+ A*D+ A*D+...
- Page 20 PHOTOCELLS CONNECTIONS 4 NOVA photocells synchronized with self-test PHOT1 PHOT2 A+ TEST COM A+ ⚠ After making these connections, activate the self-test function as required by EN12453:2017+A1:2021 point 5.1.2 by setting DIP 7 to ON. If the AUTOTEST feature is enabled and only one photocell is connected, a jumper must be made between the PHOT 1 and PHOT 2 terminals. If the jumper is not made, the AUTOTEST fails and the gate will not move.
- Page 21 Molla a tazza CCA1375 Carter dal 09-2010 CME8047 Squadretta di guida R50 CTC1350 Anello di tenuta CCU6010ZZ Cuscinetto schermato CME8200 Leva di sblocco manuale R50 CTC1401 Paraolio 50x80x8 MEC6203 Cuscinetto schermato CME8997 Vite senza fine CTC1402 Paraolio30x47x7 CCM6205 Cuscinetto schermato...
-
Page 22: Made In Italy
"، الملحق الثاني، "بEC/2006/42 إقرار التضمين للماكينة شبه المكتملة - توجيه الماكينات Declaration of incorporation for partly completed machinery - Machinery Directive 2006/42/EC, Annex II., B R.I.B. S.r.l. - Via Matteotti, 162 - 25014 Castenedolo - Brescia - Italy Tel. ++39.030.2135811 - www.ribind.it - ribind@ribind.it :موديل...
