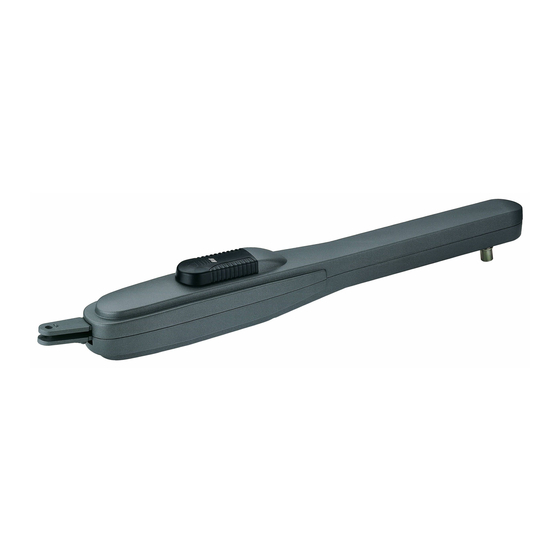

RIB PRINCE 24V Operator's Manual

T2 24v leaf gates
Hide thumbs Also See for PRINCE 24V:
Table of Contents

Advertisement

Quick Links

PRINCE 24V
Brevettato - Patented
N. 1 503 019 - US 7,000,353 B2
Operatore
Operateur
Operator
Torantrieb
Operador
PRINCE 24V
ITALIANO pag. 05 / FRANÇAIS pag. 16 / ENGLISH page 27 / DEUTSCH pag. 37 / ESPAÑOL pag. 48
Alimentazione
Peso max anta
Alimentation
Poids maxi battant
Power Supply
Max leaf weight
Stromspannung
Max. Torgewicht
Alimentacion
Peso max hoja
230V 50/60Hz
250 kg / 550 lbs
120V 60Hz
con / avec / with / mit
T2 24V
OPERATORE PER CANCELLI A BATTENTE
OPÉRATEUR POUR PORTAILS À BATTANT
OPERATOR FOR LEAF GATES
TORANTRIEB FÜR FLÜGELTORE
OPERADOR PARA CANCELAS DE BATIENTE
Spinta
Spinta max
Poussée
Poussée maxi
Thrust
Max thrust
Schubkraft
Max Schubkraft
Empuje
Empuje max.
100 kg / 220 lbs
140 kg / 309 lbs
codice
code
code
code
codigo
AA14031
a richiesta/on request

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRINCE 24V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RIB PRINCE 24V

Summary of Contents for RIB PRINCE 24V

  • Page 1 PRINCE 24V con / avec / with / mit Brevettato - Patented T2 24V N. 1 503 019 - US 7,000,353 B2 OPERATORE PER CANCELLI A BATTENTE OPÉRATEUR POUR PORTAILS À BATTANT OPERATOR FOR LEAF GATES TORANTRIEB FÜR FLÜGELTORE OPERADOR PARA CANCELAS DE BATIENTE...
  • Page 2 SYSTEM LAY-OUT ECHNICAL FEATURES PRINCE 24V is a linear operator designed for swing gates long up to 2 m and weight up to 250 kg (Pic. 1). PRINCE 24V works without electric limit switches, but with mechanical stoppers. N.B.: It is advisable to fit an electrical lock to ensure an efficient gate locking.
  • Page 3 INSTALLATION PRINCE Parts to install to comply EN 12453 standard COMMAND TYPE RE-INSTALLATION CHECK LIST The gate leaves must be firmly fixed to the hinges on the gate pillars, they COMMAND TYPE USE OF THE SHUTTER must not flex during the movement and they must swing without any friction. Skilled persons Skilled persons Unrestricted use...
  • Page 4 In order to carry out a proper installation of the operator, it is necessary to comply with the geometry measurement shown in the tables below. COL Column attachment Respect the measures for a correct installation Min.÷Max ANT α 100 100 765 13,5 S2-X Leaf attachment S2-Y 100 100 765 13,5 100...
  • Page 5 ECHANICAL STOPPER - OPTIONAL (Code ACG8088) Optional mechanical stopper to stop the closing, if the gate is not fitted with a floor stopper. ECHANICAL STOPPER ADJUSTMENT To adjust the stoppers you have to follow the scheme (Pic. 9). To set the opening limit it is enough to fix the stopper (A) in the needed position by tightening the 8mA screw with a n.
  • Page 6 T2 24V code BC07088 T2 24V CRX code BC07089 24Vdc 0,8A ± 15% for ACCESSORY SUPPLY BLINKER 24Vdc 0,8A ± 15% for AUTOTEST SAFETY STRIPS 24Vdc 20W PEDESTRIAN ELECTRIC STEP BY STEP POWER SUPPLY LOCK 230Vac 50 Hz PHOTOCELLS FUSE COMMON T 2 A SAFETY STRIPS...
  • Page 7 DO NOT REMOVE ANY JUMPER! OTHERWISE THE OPERATOR WILL NOT WORK! RADIO Built-in radio module (model CRX), or connector for radio receiver RIB, 24 Vdc supply BATTERY Connector for charge card of 24Vdc battery (code CHARGER ACG4648) TRIMMER RUN...
  • Page 8 gate opening M1 (green) Safety and other gate commands now operate normally (inversions, stop, alarms, etc.). gate closing M1 (red) 6 - After the set amount of time, the gate will stop. automatic closing indicator (red) 7 - AT THE END OF PROGRAMMING RESET DIP 2 TO OFF. photocell contact (NC) (red) sensor contact (NC) (red) - SETTING PEDESTRIAN OPENING TIMES (#) BOTH FOR TIME AND POWER SENSOR OPERATION...
  • Page 9 OPEN BUTTON (COM-OPEN) If the sensor remains engaged (N.O. contact) no movement is allowed. The button controls the opening movement when the gate is stationary. If activated while closing, it reopens the gate. If not used, jump the terminals COM-EDGE. CLOCK FUNCTION OF OPEN BUTTON MONITORING OF SAFETY SENSORS (A+ TEST A-) Sensors can be monitored through the A+ TEST input and DIP 12 ON.
  • Page 10 - Battery power 20-24Vdc is set up to ensure compliance with double or reinforced insulation with regard to dangerous voltage. - Transformer Power 130VA - primary 230Vac - secondary 18Vac - Any external circuits connected to the outputs of the control panel must be made in such a manner as to ensure - Maximum absorption 50 mA compliance with double or reinforced insulation with regard to dangerous voltage.
  • Page 11 ET SOLAR AMPLIFIER 2 24V Wi-Fi Interface for 50W solar panels. code AD00319 Control panel with impact sensors and MASTER Wi-Fi card. With container. code ABT2025W Wi-Fi DEVICES ASTER Wi-Fi OVA Wi-Fi RECEIVER CARD TO MANAGE WIRELESS SYSTEM PHOTOCELLS WITHOUT WIRES code ACG8037 with connector - 12÷30V ac/dc code ACG6094...
  • Page 12 PRINCE 24V CCA1263 BA01046 CME5235 CAL1158 CRS6204R CCA1351 CPL1163 DRL10X30I CME2125 CPL1164 CTC1269 DTE10X20I CTC1116 BA01076 CME9056 CVA1176 CTC1253 CPL1165 DAC4X14 CMO1286 DTM10X40I CME6085 CPL1127 DRD4 DTB55X40 DRL10X20I DDD10MAI ACG8088 CAL1157 CPL1167 DAC29X95 CEL1457 Questo prodotto è stato completamente progettato e costruito in Italia · Ce produit a été complètement développé et fabriqué en Italie · This product has been completely developed and built in Italy ·...
  • Page 13 SELF INSTALL - NEED TECHNICAL ASSISTANCE? OPTION 1: DIRECT WITH THE SERVICE DESK – QUICKEST AND MOST EFFECTIVE METHOD Submit your enquiry direct with the service desk at – service@automaticsolutions.com.au The service desk has the most experienced staff in Australia to help with your problem but they need your help. ...
