3. Unplug all the electrical connections
4. Remove the board

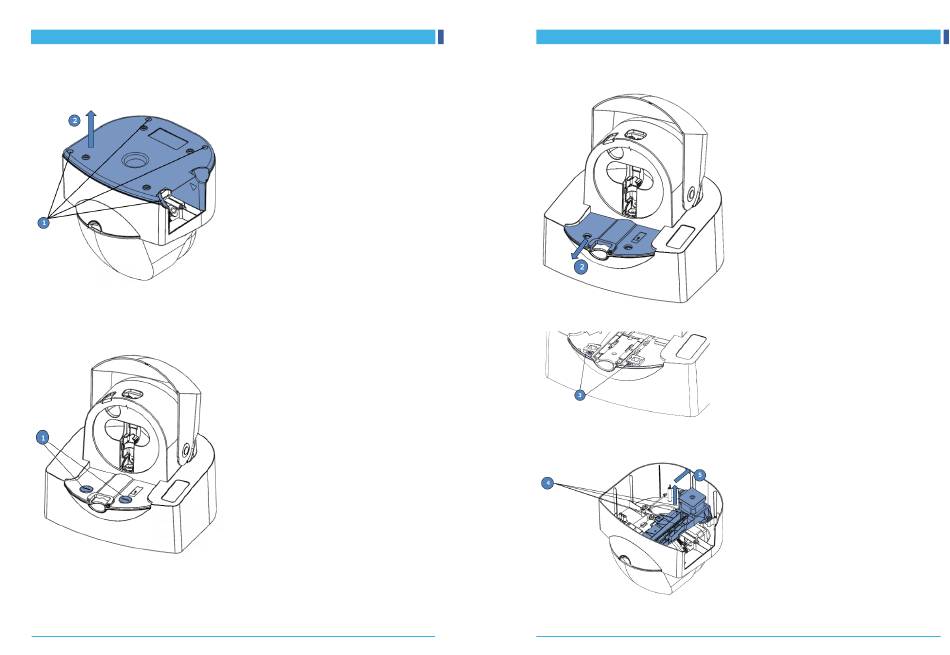

5.4.3 Slide trolley
1. Unscrew 2 screws (quarter turn)
REF.: 22019-V07
Revised: 2022-04-07
5 Disassembly and reassembly
30
2. Remove the cover by sliding it to the front
3. Unscrew the 2 screws
4. Unscrew the 4 screws
5. Remove the slide trolley
31
5 Disassembly and reassembly
REF.: 22019-V07
Revised: 2022-04-07
