ASSEMBLY INSTRUCTIONS
ITEM NO. D1435-60S

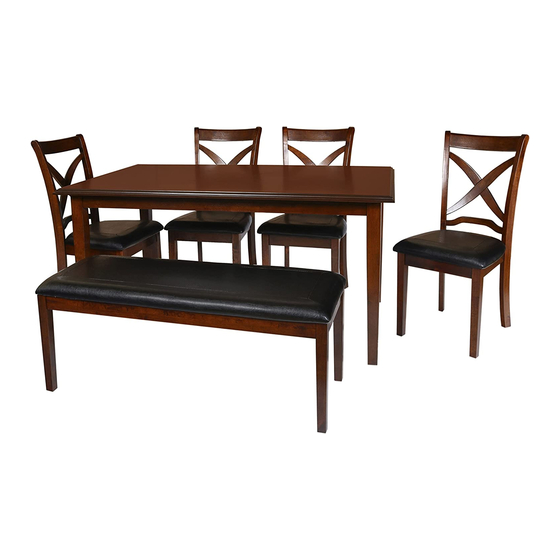

MILO RECTANGLE DINING TABLE
MILO DINING CHAIR (SET INCLUDES 4 CHAIRS, 1 BENCH)
This page lists all the contents included in the Box. Please take time to identify the
hardware as well as the individual components to this product. As you unpack and
prepare for assembly, place the contents on a carpeted or padded area to protect
them from damage.
C l e a n i n g & C a r e
Treat the surface with care, clean it with a dry or damp soft cloth.
Do not use abrasive cleaners. Hardware may be loosen over time.
Periodically check that all connections are tight.
A Phillips screwdriver is necessary for assembly.
1
Advertisement
Related Manuals for New Classic Furniture D1435-60S
Summary of Contents for New Classic Furniture D1435-60S

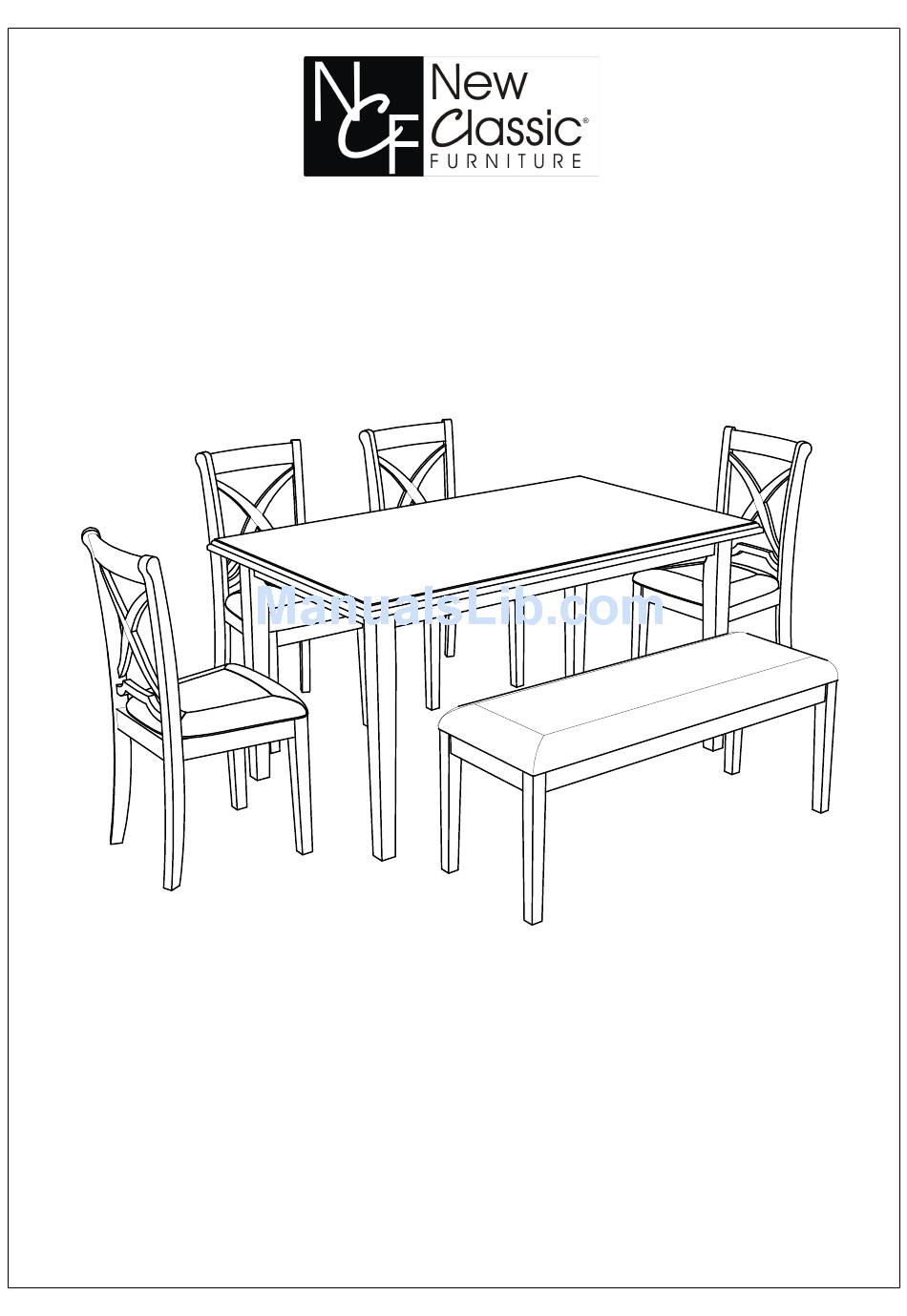

- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO. D1435-60S MILO RECTANGLE DINING TABLE MILO DINING CHAIR (SET INCLUDES 4 CHAIRS, 1 BENCH) This page lists all the contents included in the Box. Please take time to identify the hardware as well as the individual components to this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
- Page 2 GENERAL INFORMATION, TIPS & TRICKS 1. Please read the assembly instructions prior to assembling this product. 2. To avoid damages, assemble this product on a non-abrasive surface such as a carpet. 3. Make sure all bolts and nuts are tightly fastened before the product is used. 4.
- Page 3 TABLE PART LIST A. Table Top B. Table Legs QTY: 1 PC QTY: 4 PCS TABLE HARDWARE LIST 1. FLAT WASHERS 2. SPRING WASHERS NUTS 4. ALLEN WRENCH SIZE: 5/16" DIA SIZE: 5/16" DIA SIZE: 5/16" DIA SIZE: 5/16" DIA QTY: 8 PCS QTY: 8 PCS QTY: 8 PCS...
- Page 4 TABLE ASSEMBLY INSTRUCTIONS STEP 1 Turn the Table Top (A) upside down on a non-abrasive surface such as a carpet (the underside of the Table Top (A) should be placed face up). Attach the Table Legs (B) to the corner of the apron of the Table Top (A) by using Flat Washers (1), Spring Washers (2), Nuts (3), and tighten with Allen Wrench (4) as per illustration below.
- Page 5 TABLE ASSEMBLY INSTRUCTIONS STEP 2 Turn the table to the upright position carefully. Make sure the table is level, and then securely tighten all nuts at this stage. Assembly is completed. The table is now ready for use.
- Page 6 CHAIR PART LIST A. Back Legs B. Seat Frames Front Legs D. Cushion Seats QTY: 4 PCS QTY: 4 PCS QTY: 8 PCS QTY: 4 PCS CHAIR HARDWARE LIST 1. FLAT WASHERS 2. SPRING WASHERS NUTS 4. ALLEN WRENCH SIZE: 5/16" DIA SIZE: 5/16"...
- Page 7 CHAIR ASSEMBLY INSTRUCTIONS STEP 1 Attach the Front Legs (C) to the Seat Frame (B) by using Nuts (3), Spring Washers (2), and Flat Washers (1). Note: The Seat Frame (B) has two screw holes on each side, which are used for attaching the seat.
- Page 8 CHAIR ASSEMBLY INSTRUCTIONS STEP 3 Place the Cushion Seat (D) upside down on a non-abrasive table surface. The rear (tapered end) of the Cushion Seat (D) should be near the table edge. Hint: Protect the non-abrasive table surface and the Cushion Seat (D) by laying a towel in-between the chair seat and table.
- Page 9 CHAIR ASSEMBLY INSTRUCTIONS STEP 4 The Dining Chair is now ready for use. Repeat Steps 1 to 3 to assemble the other chairs. Printed in Vietnam...
- Page 10 BENCH PART LIST A. Cushion Seat B. Front Legs C. Seat Frame QTY: 1 PC QTY: 4 PCS QTY: 1 PC BENCH HARDWARE LIST 1. FLAT WASHERS 2. SPRING WASHERS NUTS 4. ALLEN WRENCH SIZE: 5/16" DIA SIZE: 5/16" DIA SIZE: 5/16"...
- Page 11 BENCH ASSEMBLY INSTRUCTIONS STEP 1 Attach the Front Legs (B) to the Seat Frame (C) by using Nuts (3), Spring Washers (2), and Flat Washers (1). Note: The Seat Frame (C) has two screw holes on each side, which are used for attaching the seat.
- Page 12 BENCH ASSEMBLY INSTRUCTIONS STEP 4 The bench is now completed and ready for use. Printed in Vietnam...
