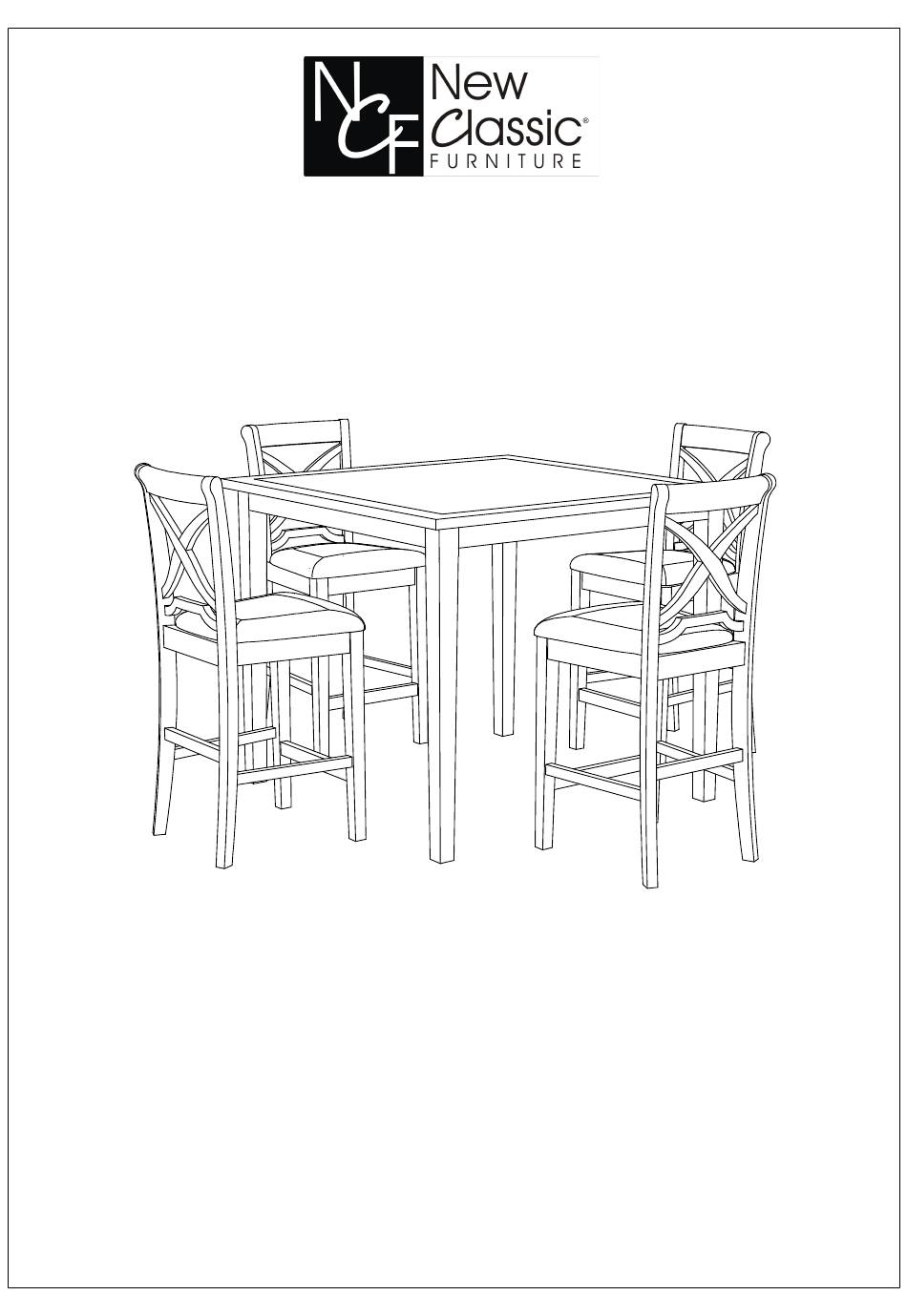

ASSEMBLY INSTRUCTIONS
ITEM NO. D1435-52S
MILO COUNTER TABLE
MILO COUNTER CHAIR (SET INCLUDES 4 CHAIRS)
This page lists all the contents included in the Box. Please take time to identify the
hardware as well as the individual components to this product. As you unpack and
prepare for assembly, place the contents on a carpeted or padded area to protect
them from damage.
C l e a n i n g & C a r e
Treat the surface with care, clean it with a dry or damp soft cloth.
Do not use abrasive cleaners. Hardware may be loosen over time.
Periodically check that all connections are tight.
A Phillips screwdriver is necessary for assembly.
1
Advertisement
Related Manuals for New Classic Furniture D1435-52S
Summary of Contents for New Classic Furniture D1435-52S
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO. D1435-52S MILO COUNTER TABLE MILO COUNTER CHAIR (SET INCLUDES 4 CHAIRS) This page lists all the contents included in the Box. Please take time to identify the hardware as well as the individual components to this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
- Page 2 GENERAL INFORMATION, TIPS & TRICKS 1. Please read the assembly instructions prior to assembling this product. 2. To avoid damages, assemble this product on a non-abrasive surface such as carpet. 3. Make sure all bolts and nuts are tightly fastened before the product is used. 4.
- Page 3 TABLE PART LIST A. Table Top B. Table Legs QTY: 1 PC QTY: 4 PCS TABLE HARDWARE LIST 1. FLAT WASHERS 2. SPRING WASHERS NUTS 4. ALLEN WRENCH SIZE: 5/16" DIA SIZE: 5/16" DIA SIZE: 5/16" DIA SIZE: 5/16" DIA QTY: 8 PCS QTY: 8 PCS QTY: 8 PCS...
- Page 4 TABLE ASSEMBLY INSTRUCTIONS STEP 1 Turn the Table Top (A) upside down on a non-abrasive surface such as a carpet (the underside of the Table Top (A) should be placed face up). Attach the Table Legs (B) to the corner of the apron of the Table Top (A) by using Flat Washers (1), Spring Washers (2), and Nuts (3), and tighten with Allen Wrench (4) as per illustration below.
- Page 5 CHAIR PART LIST A. Back Legs B. Seat Frames Cushion Seats QTY: 4 PCS QTY: 4 PCS QTY: 4 PCS D. Front Legs (Left - Right) E. Side Stretchers (Left - Right) F. Front Stretchers QTY: 8 PCS QTY: 8 PCS QTY: 4 PCS CHAIR HARDWARE LIST 1.
- Page 6 CHAIR ASSEMBLY INSTRUCTIONS STEP 1 Put the Back Leg ( A) and the Seat Frame (B) upside down on the soft and smooth surface. Then insert Long Bolts (6) Short Bolts (5), Spring Washers (2), and Flat Washers (1) into the predrilled holes of each corner, by using Allen Wrench (4).
- Page 7 CHAIR ASSEMBLY INSTRUCTIONS STEP 3 First, insert the Front Stretcher (F) into the holes of Front Legs (D) by using Wood Screws (7). Attach the Front Legs (D) to the Side Stretchers (E) and the corner of Seat Frame (B). Insert Flat Washers (1), Spring Washers (2), and Nuts (3) ing Allen Wrench (4).
- Page 8 CHAIR ASSEMBLY INSTRUCTIONS STEP 5 Turn the assembled chair to the upright position carefully. Make sure the chair is level, and then securely tighten all bolts at this stage. Assembly is now completed. Printed in Vietnam...
