Baxton Studio Fleur BBT61173 Assembly Instructions

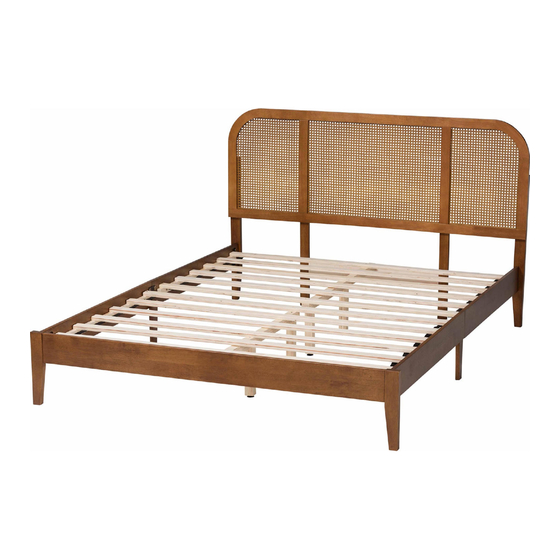

MODEL : BBT61173 QUEEN BED
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTION : 1. Do not FULLY - TIGHTEN the nuts or nuts bolts until they are ready for assembly.
2. Do not OVER - TIGHTEN the nuts or bolts to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tools needed : Screwdriver (not provided).
STEP 1
Align pre-drilled Support Wood (B) holes over the pre-drilled
headboard holes according to your desired Headboard (A) height.
A
B R
ASSEMBLY INSTRUCTIONS
STEP 2
L
B
12
4
7
6
PART LIST
QTY
ITEM DESCRIPTION BOX
A
HEADBOARD 1 1 PC
B HEADBOARD WOOD L/R
1 2 PCS
C HEADBOARD WOOD CENTER 1 2 PCS
D FOOTBOARD 1 1 PC
E SIDE RAIL (L)
1 2 PCS
F SIDE RAIL (R)
1 2 PCS
G
SIDE RAIL LEG 1 2 PCS
H
CENTER RAIL 1 2 PCS
I CENTER SUPPORT LEG 1 4 PCS
J
BED SLAT 1 2 SET
K
HEADBOARD SUPPORT RAIL 1 1 PC
Align pre-drilled Support Wood Center (C) holes over the
pre-drilled headboard holes according to your desired Headboard
(A) height.
HARDWARE LIST (BOX : 1)
ITEM DESCRIPTION
1
JCBC BOLT M6 x 20mm
2
JCBC BOLT M6 x 30mm
3
JCBC BOLT M6 x 35mm
4
JCBC BOLT M6 x 45mm
5
JCBC BOLT M6 x 50mm
6
M6 FLAT WASHER
7 M6 SPRING WASHER
8 WOOD SCREW M4 x 38mm
9 WOOD DOWEL M8 x 30mm
10 SHEET METAL (VMB 3076)
11 L BRACKET (VMB 3017) (BLACK)
12 M4 ALLEN KEY (BALL SHAPE)
13 M6 BEND WASHER 3013 (RB)
12
3
7
6
C
1 OF 5
QTY
8 PCS
8 PCS
6 PCS
4 PCS
10 PCS
24 PCS
26 PCS
10 PCS
8 PCS
2 PCS
2 PCS
1 PC
8 PCS
