Baxton Studio BBT61185 Assembly Instructions

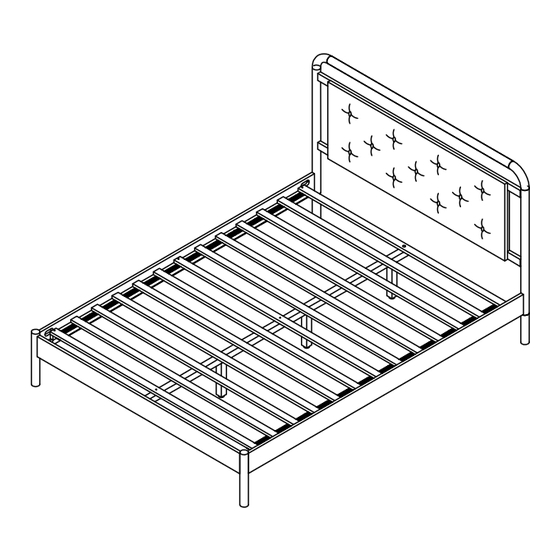

MODEL : BBT61185 QUEEN BED
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS
: 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Screwdriver & Rubber Mallet (not provider).
STEP 1
D
D
ASSEMBLY INSTRUCTIONS
ITEM DESCRIPTION
A
HEADBOARD
B HEADBOARD LEG
C FOOTBOARD
D
SIDE RAIL
E
CENTER RAIL
F
CENTER SUPPORT LEG
G
BED SLAT
STEP 2
5
D
5
PART LIST HARDWARE LIST (BOX : 2)
QTY
BOX
ITEM
1 1 PC
1 JCBC BOLT M6 x 40mm
2 2 PCS
2
JCBC BOLT M6 x 60mm
1 1 PC
3 M6 BEND WASHER 3013 (RB)
2 2 PCS
4
WOOD SCREW M4 x 32mm
2 1 PC
5
WOOD DOWEL M8 x 30mm
2 3 PCS
6 M4 ALLEN KEY (BALL SHAPE)
3 1 SET
D
C
x2
6
2
3
C
1 OF 3
QTY
DESCRIPTION
1 PC
8 PCS
8 PCS
8 PCS
4 PCS
1 PC
D
