Baxton Studio BBT61326 Assembly Instructions

MODEL : BBT61326 A1 QUEEN BED
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS
: 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Screwdriver (not provider).

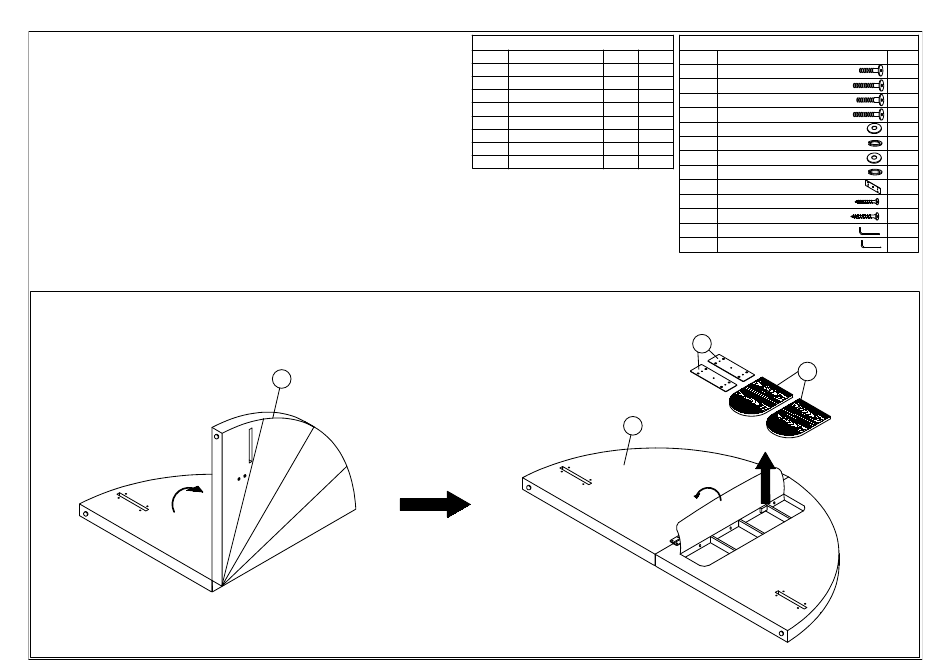

STEP 1
ASSEMBLY INSTRUCTIONS
A
PART LIST
QTY
ITEM DESCRIPTION BOX
A
HEADBOARD 1 1 PC
B HEADBOARD PANEL 1 2 PCS
C
FOOTBOARD 2 1 PC
D
SIDE RAIL 2 2 PCS
E
CENTER RAIL 2 1 PC
F
CENTER SUPPORT LEG 2 3 PCS
G BED SLAT 4 1 SET
H
BED LEG 3 2 PCS
Take out HEADBOARD PANEL (B) & VMB3172 (9)
for the HEADBOARD BACK (A).
A
HARDWARE LIST (BOX : 2)
ITEM DESCRIPTION
1
JCBC BOLT M6 x 20mm
2 JCBC BOLT M6 x 40mm
3
JCBB BOLT M8 x 30mm
4 JCBB BOLT M8 x 40mm
5 M6 FLAT WASHER
6
M6 SPRING WASHER
7 M8 FLAT WASHER
8
M8 SPRING WASHER
9 VMB 3172
10
WOOD SCREW M4 X 20mm
11 WOOD SCREW M4 X 38mm
12 M4 ALLEN KEY (BALL SHAPE)
M5 ALLEN KEY (BALL SHAPE)
13
9
B
1 OF 4
QTY
8 PCS
1 PC
16 PCS
3 PCS
8 PCS
8 PCS
19 PCS
16 PCS
2 PCS
1 PC
14 PCS
1 PC
1 PC
