Baxton Studio Harrell BBT61161 Assembly Instructions

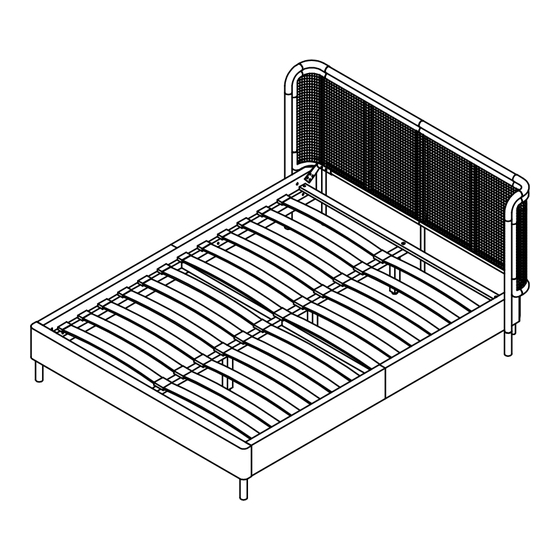

MODEL : BBT61161 QUEEN BED
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS
: 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Screwdriver (not provider).

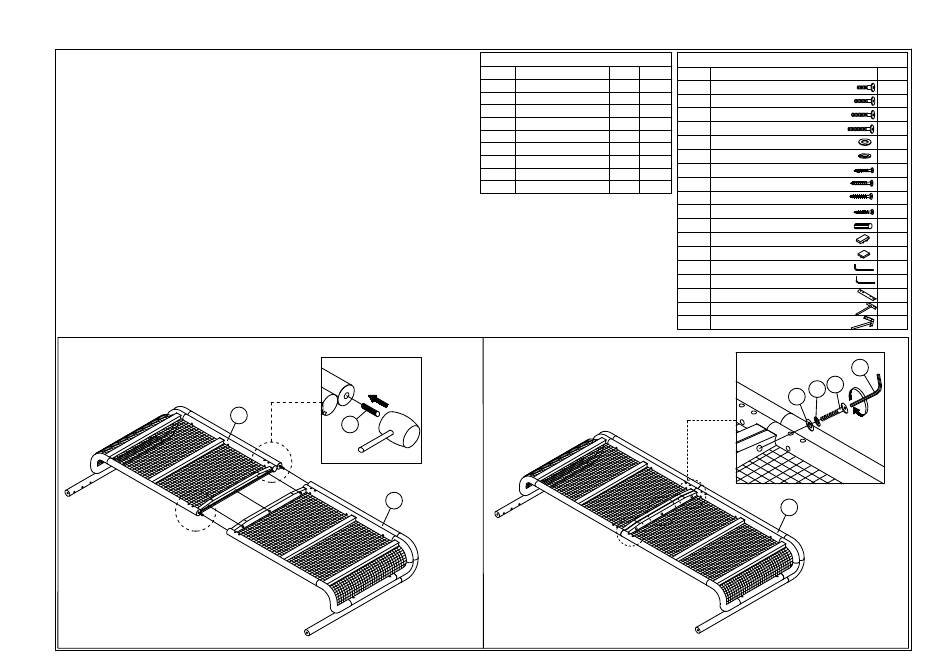

STEP 1
A
ASSEMBLY INSTRUCTIONS
ITEM
A HEADBOARD
B
FOOTBOARD
C SIDE RAIL
D CENTER RAIL
E
CENTER RAIL SUPPORT
F CENTER SUPPORT LEG
G BED SLAT (1)
H BED SLAT (2)
I BED LEG
STEP 2
11
A
PART LIST
QTY
DESCRIPTION BOX
ITEM
1 2 PCS
1
2 1 PC
2
2 2 PCS
3
2 1 PC
4
2 2 PCS
5
2 3 PCS
6
2 1 PC
7
2 24 PCS
8
2 4 PCS
9
10
11
12
13
14
15
16
17
18
1 OF 5
HARDWARE LIST (BOX : 2)
QTY
DESCRIPTION
JCBC BOLT M6 x 20mm 12 PCS
JCBC BOLT M6 x 35mm 1 PC
JCBC BOLT M6 x 50mm 3 PCS
JCBC BOLT M6 x 60mm 4 PCS
M6 FLAT WASHER 7 PCS
M6 SPRING WASHER 19 PCS
WOOD SCREW M3.5 X 16mm 8 PCS
WOOD SCREW M4 X 32mm 8 PCS
WOOD SCREW M4 X 38mm 2 PCS
WOOD SCREW M4 X 20mm 1 PC
WOOD DOWEL M10 x 30mm 4 PCS
BED SLAT SIDE FITTER 24 PCS
BED SLAT CENTER FITTER 12 PCS
M4 ALLEN KEY (BALL SHAPE)
1 PC
M5 ALLEN KEY (BALL SHAPE)
1 PC
VMB 3159 (1) METAL BRACKET 1 PC
VMB 3159 (2) METAL BRACKET 1 PC
VMB 3160 (L/R) METAL BRACKET
2 PCS
14
3
6
5
A
