- Page 1 Industrial 4-port 10/100TX + 2-port 1000X SFP Ring Ethernet Switch IFGS-620TF IFGS-624PTF User's Manual...
-
Page 2: Package Contents
1. Package Contents Thank you for purchasing PLANET Industrial 4-Port 10/100TX + 2-Port 1000X SFP Ethernet Switch, IFGS-620TF or IFGS-624PTF. The table below shows the models with the number of ports: Model Name 10/100TX Copper Ports 802.3at PoE Ports 1000X SFP Ports... -
Page 3: Hardware Introduction

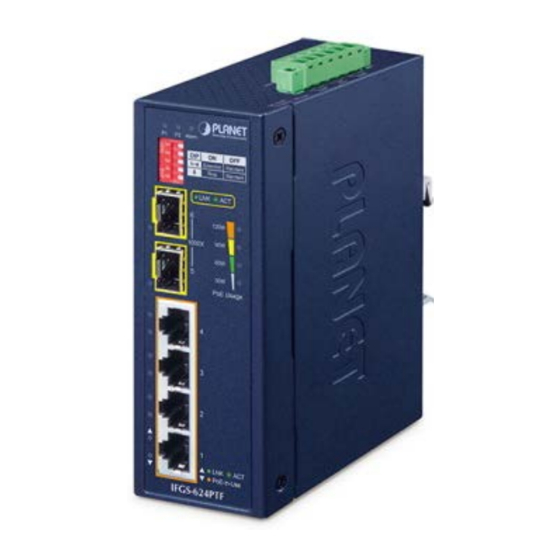

The front panel of the Industrial Ring Ethernet Switch consists of Ethernet interfaces and LED indicators. Front View Figure 1: IFGS-620TF Front View Figure 1: IFGS-624PTF Front View Ethernet Interfaces Fast Ethernet TP interfaces (Port 1 to port 4) 10/100BASE-TX copper, RJ45 twisted-pair: Up to 100 meters. - Page 4 DIP Switch The front panel of the Industrial Ring Ethernet Switch provides DIP Switch which is for configuring Ring function and PoE extension. IFGS-620TF The DIP Switch settings and descriptions: DIP Switch Position Function OFF (default) Ring DIP-1 ON (default)
- Page 5 5. Due to differences in design between the Industrial Ring Ethernet Switch One Key Ring and the ERPS Ring functions available on PLANET Industrial Managed Switch devices, the Two functions are not compatible with each other.
- Page 6 Lights to indicate power 2 has power. Alarm Lights to indicate either power 1 or power 2 has no power. 10/100BASE-TX Interfaces (Port 1 to Port 4) (IFGS-620TF only) Color Function Lights to indicate the port is running at 10/100Mbps and successfully established.
- Page 7 Blinks to indicate that the switch is actively sending or receiving data over that port. Lights to indicate the port is providing DC in-line power. PoE-in-Use Amber Off to indicate the connected device is not a PoE powered device (PD). ...
- Page 8 Figures 3 show the upper panels of the Industrial Ring Ethernet Switches. Figure 3: IFGS-620TF Upper Panel Figure 4: IFGS-624PTF Upper Panel 2.4 Wiring the Power Inputs The 6-contact terminal block connector on the top panel of Industrial Ring Ethernet Switch is used for two redundant power inputs.
- Page 9 2. Tighten the wire-clamp screws for preventing the wires from loosening. Power 1 Alarm Power 2 PWR1 and PWR2 must provide the same DC voltage for power load CAUTION balance while operating with dual power input.
-
Page 10: Grounding The Device
2.5 Wiring the Faulty Alarm Contact The faulty alarm contacts are in the middle of the terminal block connector as the picture shows below. Inserting the wires, the Industrial Ring Ethernet Switch will detect the fault status of the power failure and then forms an open circuit. The following illustration shows an application example for wiring the faulty alarm contacts. -
Page 11: Din-Rail Mounting Installation
3. Installation This section describes the functionalities of the Industrial Ring Ethernet Switch’s components and guides you to installing it on the DIN rail and wall. Please read this chapter completely before continuing. The following pictures show how to install the device. However, the device in the picture is not Industrial Ring Ethernet Switch. - Page 12 3.2 Wall-mount Plate Mounting 3.3 Side Wall-mount Plate Mounting Caution: You must use the screws supplied with the wall-mounting brackets. Damage caused to the parts by using incorrect screws would invalidate your warranty.
-
Page 13: Product Specifications
4. Product Specifications This section describes the functionalities of the Industrial Ring Ethernet Switch’s components and guides you to installing the Switch. Model IFGS-620TF IFGS-624PTF Hardware Specifications Copper Ports 4 x 10/100BASE-TX RJ45 TP Auto-MDI/MDI-X, auto-negotiation Four ports with 802.3at PoE+ injector... - Page 14 Green: 10/100 LNK/ACT Green: 10/100 LNK/ACT Amber: PoE-in-Use 1 x LED for SFP interface (Ports 5 to 6) 1 x LED for SFP interfaces (Ports 5 to 6) Green: 1G LNK/ACT Green: 1G LNK/ACT 4 x LED for PoE Usage (W) (Low to high): ...
-
Page 15: Customer Support
5. Customer Support Thank you for purchasing PLANET products. You can browse our online FAQ resource on PLANET web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team. - Page 16 FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
