McCrometer SPI Mag 3000 Quick Start Installation Manual

Battery powered electromagnetic flow meter
Hide thumbs Also See for SPI Mag 3000:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
SPI M
AG
TM
WARNING!
!
Incorrect installation or removal of FPI Mag
meters can result in serious injury or death. Read
the instructions and the safety warnings in the
supplied manual carefully before installation.
This guide is not intended as a substitute for
reading the manual.

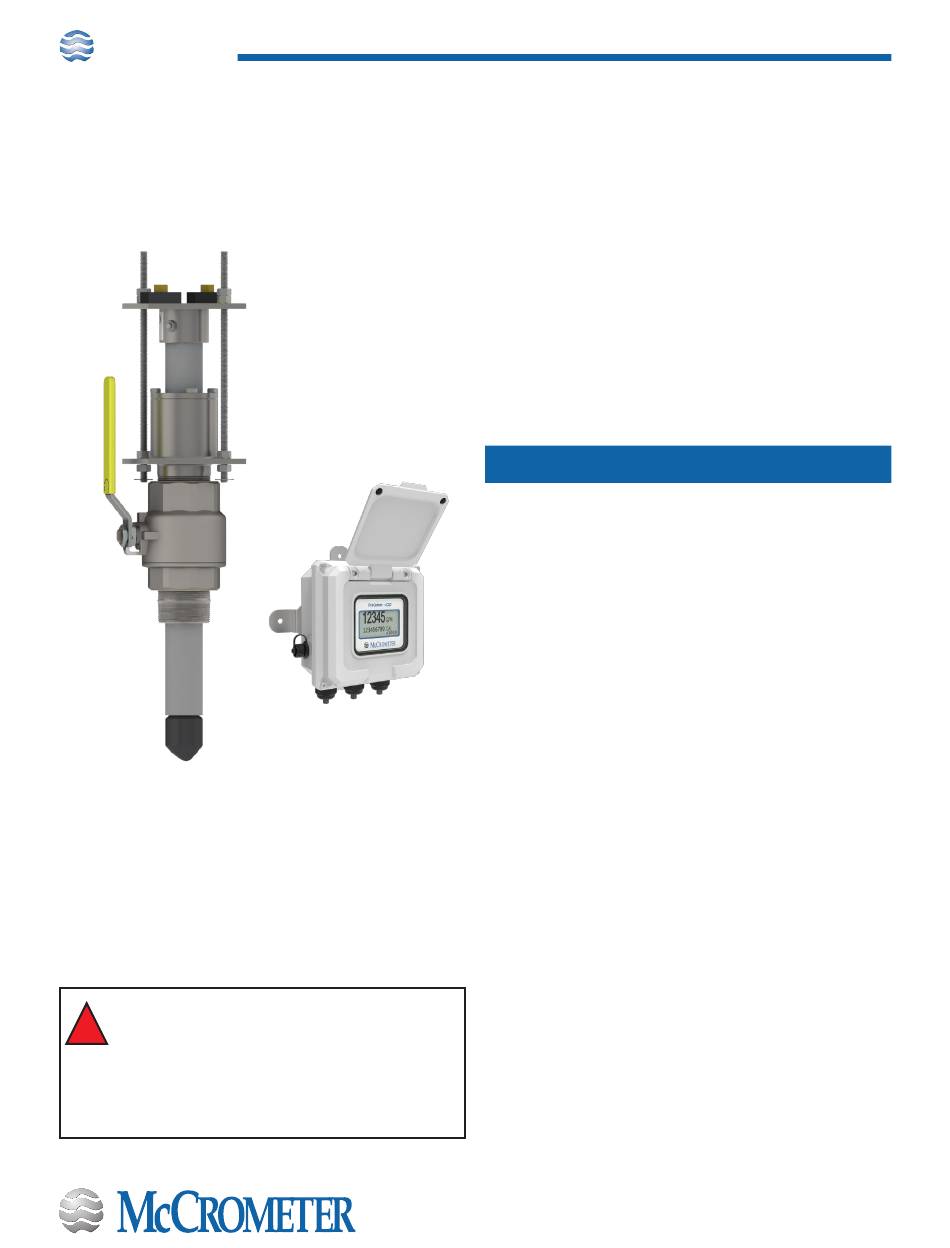

Electromagnetic Flow Meter
Quick Start Installation Guide

About This Quick Start Guide

This quick start guide is designed to provide installation
instructions when the location of the sensor installation
has been predetermined. If not, see the SPI Mag 3000
Installation, Operation and Maintenance Manual (Lit. No.
30126-41).
About This Quick Start Guide . . . . . . . . . . . . . . 1
1 .
2 .
3 .
Flow Calculation . . . . . . . . . . . . . . . . . . . . . 2
4 .
Full Pipe Sensors . . . . . . . . . . . . . . . . . . . . . 3
5 .
Parts Diagram . . . . . . . . . . . . . . . . . . . . . . . . 3
6 .
Sensor Installation Location . . . . . . . . . . 3
7 .
Determine Sensor Clearance . . . . . . . . . . 3
8 .
Install Pipe Valve . . . . . . . . . . . . . . . . . . . . . 4
9 .
Sensor Installation Tool . . . . . . . . . . . . . . . 4
11 . Inserting the Sensor . . . . . . . . . . . . . . . . . 5
12 . Clean Water Sensor Position . . . . . . . . . . 6
13 . Raw Water Sensor Position . . . . . . . . . . . . 6
Page 1
SPI Mag 3000
Battery Powered
30126-51 Rev. 1.0
30126-49 Rev. 1.0 | 12SEP2024
12SEP2024
