FALCON RIDGE CA-DEFENDER-SDK01 Instructions For Installation And Care

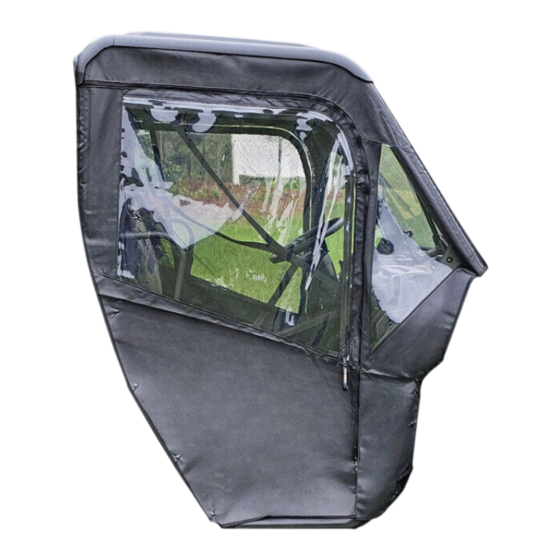

Can-am defender soft door kit

Download this manual

Instructions for Installation and Care of Can-Am Defender

Notice: Do not smoke inside the cab or expose the enclosure to direct flames. Cab is Flammable.

Be sure to read these instructions thoroughly before opening and installing the enclosure. The installation is

best done when the temperature is 70 degrees F. or warmer. The temperature affects the adhesive Velcro, if

conditions prevent installing in warmer weather it helps to store the adhesive Velcro at room temperature

prior to installation.

1. Check over the parts included in the carton with the parts list shown below:

2" Adhesive Velcro Strip

4 each

2 each

Snap studs

Door Panels

If any parts are damaged or missing please contact customer service at (606) 845-7439.

Begin by cleaning the roll cage and plastic that surrounds the doors. Using rubbing alcohol is preferable. This

step is very important for the Velcro strips to properly adhere.

3. Now start installation by placing the 2" adhesive Velcro strips around the outside edges of the upper door frame.

As you install the adhesive Velcro you will need to pull it into a curve. The result will have wrinkles in it, this is

normal, just pull it around as best you can making sure to rub down the Velcro good for maximum adhesion.

Starting at the front of the frame first place the 32" strips on the front and top as shown in the following photos.

1-800-213-7981

Soft Door Kit

52-10195- Z - CA-DEFENDER-SDK01

36" long

30" long

24 each (2 extra)

2 each

Need help?

Do you have a question about the CA-DEFENDER-SDK01 and is the answer not in the manual?

Page 1 Instructions for Installation and Care of Can-Am Defender Soft Door Kit 52-10195- Z - CA-DEFENDER-SDK01 Notice: Do not smoke inside the cab or expose the enclosure to direct flames. Cab is Flammable. Be sure to read these instructions thoroughly before opening and installing the enclosure. The installation is best done when the temperature is 70 degrees F.
Page 2 4. Next place the 30" strip on the rear vertical bar. See photo below...
Page 3 5. At this point all you need to do is attach the door to the Velcro along the top and sides. This is done so much easier if you start at the front corner and work your way around the frame. NOTE: It helps to put 6.
Page 4 Warranty To The Owner of this Product: Thank you for purchasing one of our Falcon Ridge Cab Enclosures, Tops &/or Windshields! Below are the terms under which your product is covered under our manufacturer’s warranty. 30 Day Warranty which includes and is not limited to replacing the enclosure, tops and/or windshield due to defect of the product.
