FALCON RIDGE CF-19-Z-SDK01 Instructions For Installation And Care

Download this manual

Notice: Do not smoke inside the cab or expose the enclosure to direct flames. Cab is Flammable.

Be sure to read these instructions thoroughly before opening and installing. The installation is best done

when the temperature is 70 degrees F. or warmer. The temperature affects the adhesive Velcro, if conditions

prevent installing in warmer weather it helps to store the adhesive Velcro at room temperature prior to

installation.

1. Carefully open the carton and remove the enclosure on a large flat surface that is clean and free of dirt.

2. Check over the parts included in the carton with the parts list shown below:

Adhesive Velcro Hook Strips:

Snap Screw Studs

If any parts are damaged or missing please contact customer service at (800) 213-7981.

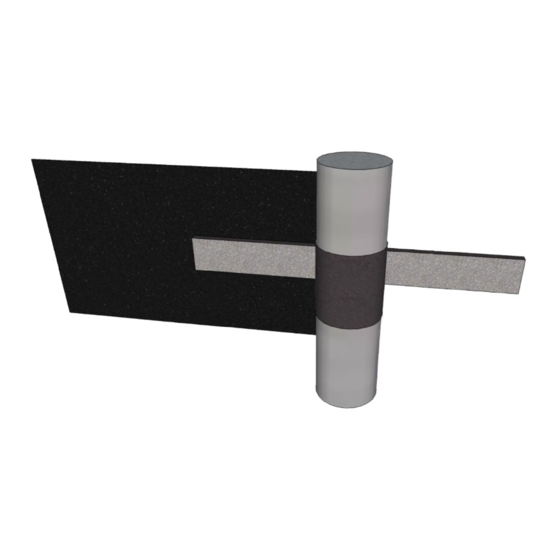

3. Begin by holding the door up to the frame and attach it using the double-sided Velcro strips sewn

perpendicular to the edge of the door. At each of the double-sided strips take one of the 3" adhesive

Velcro strips and adhere it to the inside of the frame. Then wrap the double-sided strip around it so that

the adhesive strip holds it firmly in place. The following diagrams show how it should look.

3510-1 Port Jacksonville Pkwy, Jacksonville, FL 32226

800-213-7981

Instructions for Installation and Care of

2019 CF Moto Z Force 800/1000 Soft Door Kit

CF-19-Z-SDK01

Soft Doors

24 each------------3"

20 each (2 extra)

Page 1 Instructions for Installation and Care of 2019 CF Moto Z Force 800/1000 Soft Door Kit CF-19-Z-SDK01 Notice: Do not smoke inside the cab or expose the enclosure to direct flames. Cab is Flammable. Be sure to read these instructions thoroughly before opening and installing. The installation is best done when the temperature is 70 degrees F.
Page 2 Then pull the screw stud out and screw it into the plastic where the mark was made. See Photos Below. To full enclose the doors you must have the bottom door inserts available from Falcon Ridge Part # CF-19-Z-DP01...
Page 3 Cab to either extreme hot or cold temperatures when storing. 3. A special cleaner conditioner is available from Falcon Ridge that will greatly increase the service life of the Cab Enclosure. In addition, if additional hook and loop sets are needed, they can also be ordered.
Page 4 Any returns submitted to Falcon Ridge without a return authorization number will be charged a 20% restocking fee. If ordered from one of Falcon Ridge’s many distributors, you must first call them and see what their return policy is. Once your item reaches our production facility, our customer satisfaction team will inspect your item to ensure unused, factory new condition.
