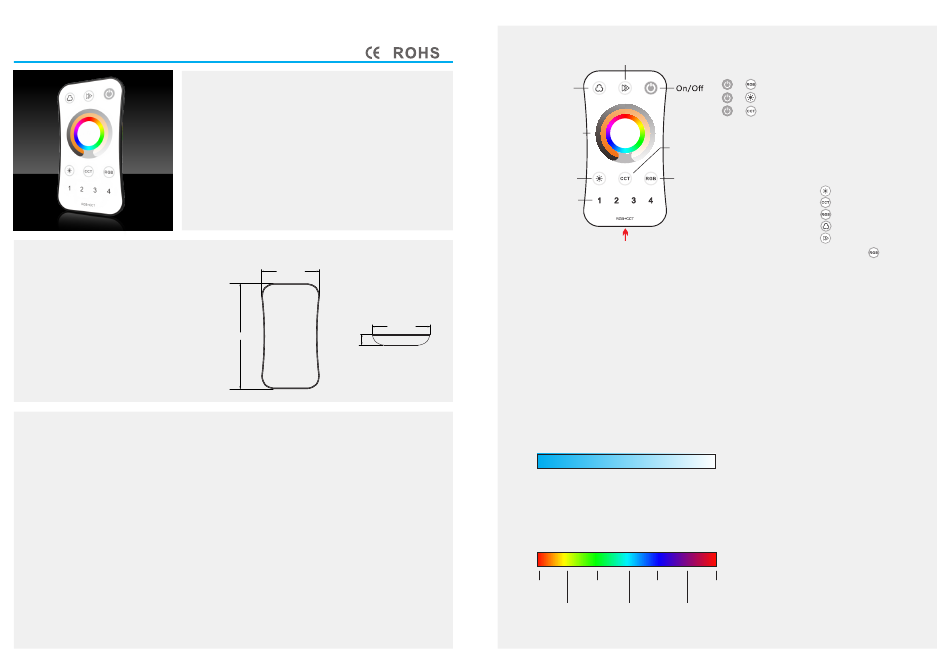

SKYDANCE Classy Series Manual

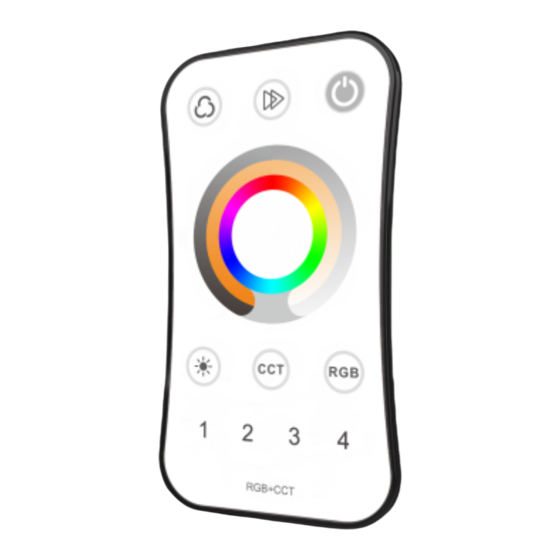

RF Multi-function Remoter
Classy Series
(R8-5)
Summar y
● Used as single zone RGB,RGBW or RGB+WW/NW remoter,
● Also can be used as four zone remoter,
● Adopt 2.4GHz wireless technology,
● CR2032 button battery power supply.
● Operate with LED indicator light.
● Each remoter can match one or more receiver.
Technical Parameters
● Output signal: RF(2.4GHz)
● Working voltage : 3VDC(CR2032)
● Working current: ＜20mA
● Standby current: ＜10μA
● Standby time: 6 months
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Dimension:
L107×W58.5×H9mm
● Weight: 34g
Match method
For controller with match key
● Match: Short press match key, within 5s, press any key of the remoter.
● Delete: Long press match key for 5s, delete all matched remoters.
For panel controller
● Match: Turn on light, turn off, immediately press on/off key for 5s,
within 5s, press any key of the remoter.
● Delete: Turn on light, turn off, immediately press on/off key for 10s, delete all matched remoter.
For smart lamp or controller without match key
● Match: Switch off the power, then switch on power again,
short press on/off key 3 times on the remoter quickly within 5s after power on,
the link is done once the light blinks 3 times.
● Delete: Switch off the power, then switch on power again,
short press on/off key 5 times on the remoter quickly within 5s after power on,
the unlink is done once the light blinks 5 times.
Note: 4 zone remoter must use zone key match each zone receiver.
match with our RGB,RGBW or RGB+WW/NW controllers
or smart LED lamps.
each zone can match single color, dual color, RGB, RGBW,
or RGB+WW/NW controller or lamp.
remote distance up to 30m.
Dimension
58.5mm
107mm
9mm
Key Function
Mode
Multi-color wheel
Brightness
4 Zone/Scene
Note:Before the first use, please remove
the insulating film on the battery.
Note: To extend battery life,
no touch or press key operation after a few seconds,
the touch wheel will enter sleep state,
you need press any key to make touch wheel quit sleep state.
58.5mm
On/Off: Short press turn on/off light.
When used as 4 zone remoter, will turn on/off all four zone light.
1,2,3,4 Zone / Scene:
When used as 4 zone: Short press turn on/off zone light, at the same time, select current zone.
When used as 4 scene: Short press run the scene, long press 2s save.
Mode: Switch dynamic RGB mode, short press run the next mode, long press 2s run mode cycle.
Speed/Saturation:
For dynamic RGB mode, adjust mode speed,
short press 10 levels, long press 2s the fastest speed.
For static RGB color, adjust saturation, namely change current static color to mixed white slowly,
short press 11 levels, long press 1-5s continuous 256 levels adjustment.
1
Pure color
Brightness: Adjust brightness, short press 11 levels, long press 2s get max or min brightness.
at the same time, multi-color wheel become brightness wheel.
RGB: Adjust static RGB color, short press get 24 kinds static color.
at the same time, multi-color wheel become RGB color wheel.
1
R 100%
5
R 100%
G 100%
R8-5 can be used as single zone
Speed/Saturation
RGB, RGBW, or RGB+WW/NW remoter,
+ : Long press 2s set as RGB remoter.
+
: Long press 2s set as RGBW remoter.
+
: Long press 2s set as RGB+WW/NW remoter.
R8-5 can also be used as four zone remoter,
Color temperature
each zone
dual color(WW/NW), RGB, RGBW,
or RGB+WW/NW controller or lamp.
RGB Color
Zone 1/2/3/4 +
Zone 1/2/3/4 +
Zone 1/2/3/4 +
Zone 1/2/3/4 +
Zone 1/2/3/4 +
For example, long press Zone 1 and
will set zone 1 as RGB light type.
11
White Color
9 17 25(1)
G 100% B 100% R 100%
21
13
G 100% R 100%
B 100%
B 100%
can match single color,
: DIM
: CCT
: RGB
: RGBW
: RGB+WW/NW
key for 2s
