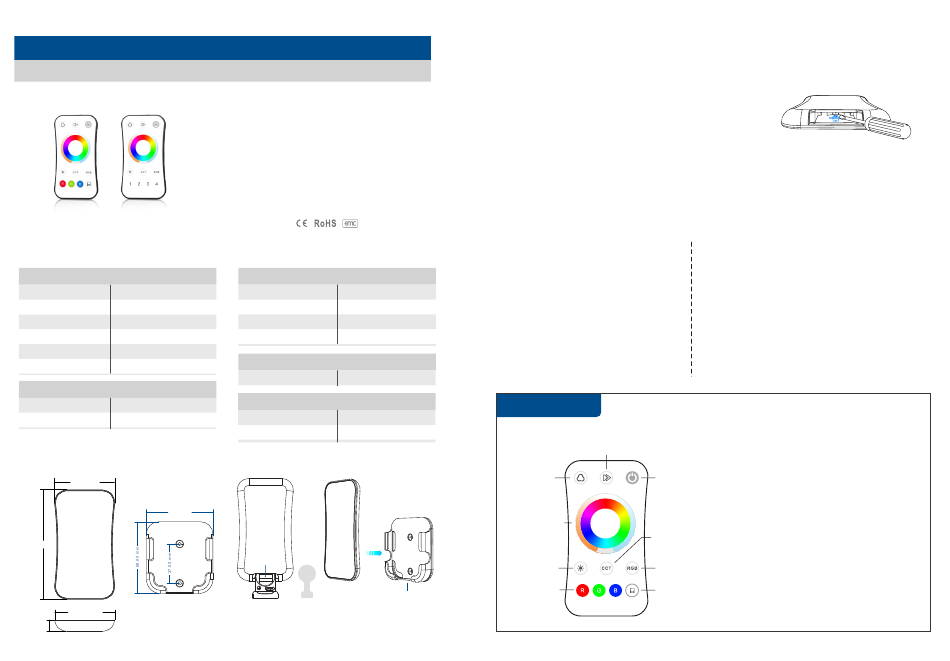

SKYDANCE R17 User Manual

Ultrathin Touch Wheel RF Remote Controller
Model No.: R17/R8-5
1 and 4 zone RGB+CCT/Touch color wheel/Wireless remote 30m distance/CR2032 batter y
R17 R8-5
1 Zone RGB+CCT 4 Zone RGB+CCT
Technical Parameters
Input and Output
Output signal RF 2.4GHz
( )
Working voltage 3VDC CR2032
( )
Working current ＜5mA
Standby current ＜10μA
Standby time 1 year
Remote distance 30m(Barrier-free space)
Environment
O O
Operation temperature Ta: -30 C ~ +55 C
IP rating
IP20
Mechanical Structures and Installations
58.5mm
63.00 mm
107mm
58.5mm
9mm
User Manual Ver 1.0.8
Features
● Apply to RGB+CCT LED controller.
Ultra sensitive color adjustment touch wheel.
●
● Each remote can match one or more receiver.
● C 2032 atter y powered. R b
● Operate with LED indicator light.
LVD RED
Safety and EMC
EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)
EN60950
Radio Equipment(RED)
EN300 328
CE,EMC,LVD,RED
Certification
Warranty
5 years
Warranty
Weight
Net weight 0 . 03 7 k g
Gross weight 0 . 062k g
C 2032 Battery R
Back holder
Note: Before the first use,
please remove the protective
film on the battery.
To fix the remote, two options are offered for selection:
Option 1: fix the remote' back holder on the wall with two screws.
Option 2: adhere the remote' back holder to the wall with paster.
Note: If the LED indicator is not on when press key,
it is due to dead battery or bad contact caused by multiple plugging,
please replace the battery, or raise the battery shrapnel with a screwdriver.
Operation
● When light is on, touch the color wheel , the indicator will display red.
● To extend battery life, no touch or press key operation after a few seconds,
the touch wheel will enter sleep state, you need press any key to make touch wheel quit sleep state.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key, immediately press on/off
key (single zone remote) or zone key (multiple zone
remote) on the remote.
The LED indicator fast flash a few times
means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times
means all matched remotes were deleted.

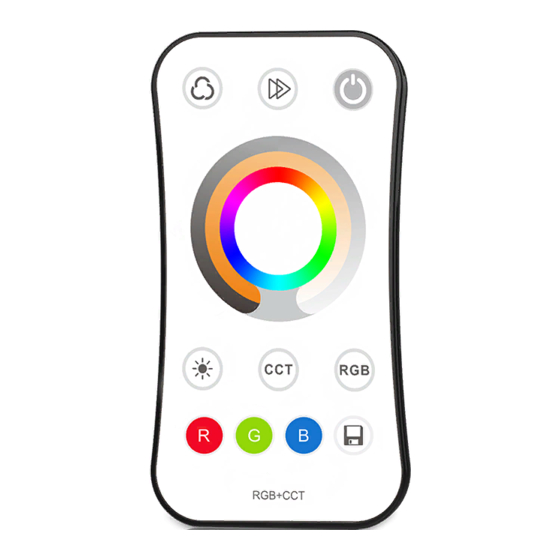

Key function
R17 1 zone RGB+CCT remote
●
Speed/Saturation
Mode
On/Off
Multi-color wheel
Color temperature
Brightness RGB Color
R/G/B Scene
R17,R8-5 Ultrathin Touch Wheel RF Remote Controller
Use Power Restart
Match:
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
. Delete:
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.
On/Off: Short press turn on/off light.
Mode: Switch dynamic mode, short press run the next mode,
long press 2s run mode cycle.
Speed/Saturation:
For dynamic mode, adjust mode speed,
short press 10 levels, long press 2s get the default speed.
For static RGB color, adjust saturation,
namely change current static color to mixed white slowly,
short press 11 levels,
long press 1-6s for continuous 256 levels adjustment.
Brightness: Adjust brightness, short press 11 levels,
long press 2s get max or min brightness.
at the same time, multi-color wheel become brightness wheel.
