Lubrication System

This engine uses a full pressure lubrication system which delivers oil under pressure to crankshaft, camshaft,
connecting rod bearing surfaces, and hydraulic valve lifters.
A high-efficiency gerotor oil pump maintains high oil flow and oil pressure, even at low speeds and high operating
temperatures. A pressure relief valve limits maximum pressure of system. Closure plate must be removed to service
oil pickup, pressure relief valve, and oil pump.

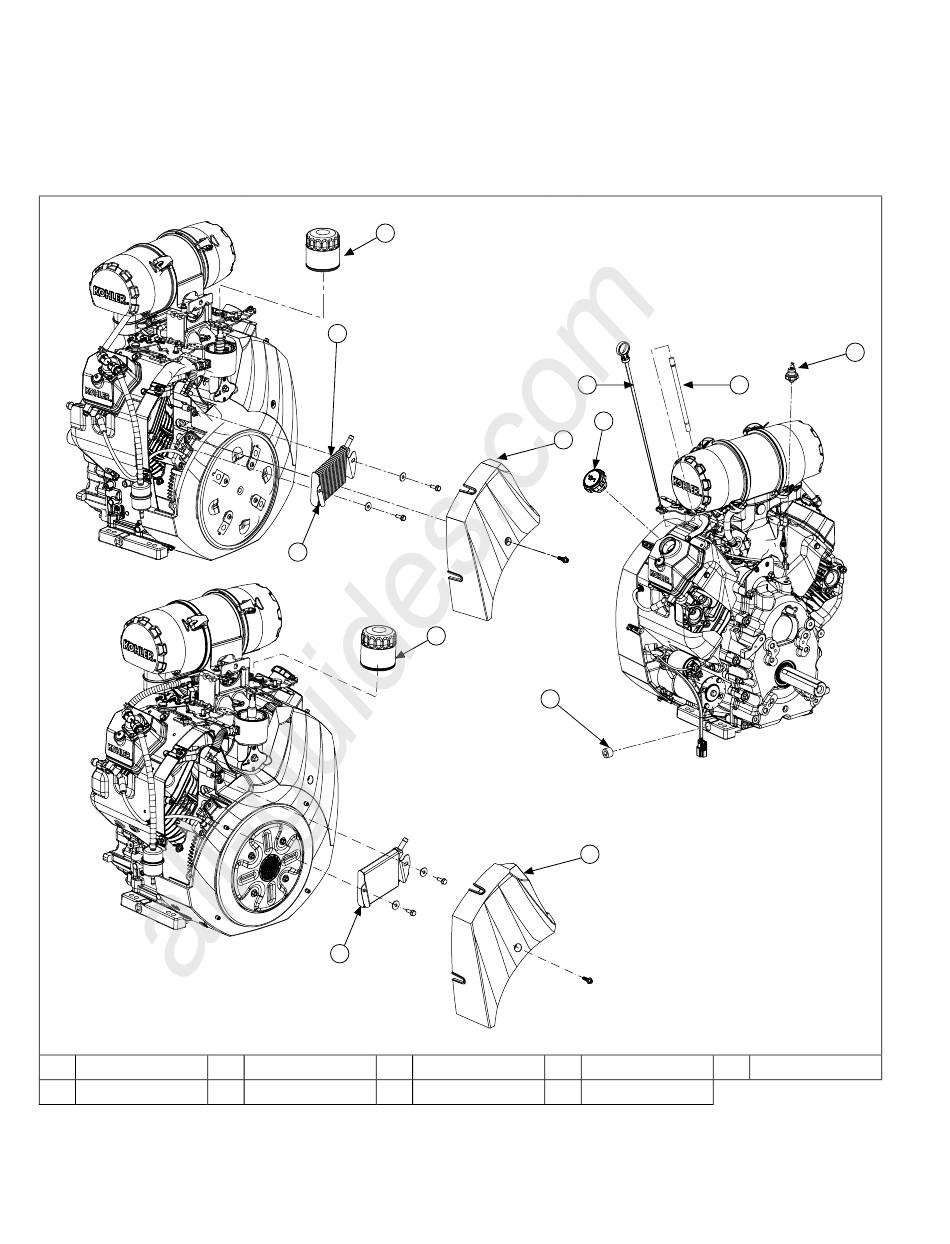

Lubrication Components
A Oil Filter
F Oil Fill Cap
36
All manuals and user guides at all-guides.com
A
B
C
C
B Back Side C
G Dipstick Tube H
KohlerEngines.com
I
F
D
A
E
D
Oil Cooler D Cylinder Shroud
Pressure Switch I
G
E Oil Drain Plug
Dipstick
62 690 01 Rev. J
H
