Reassembly

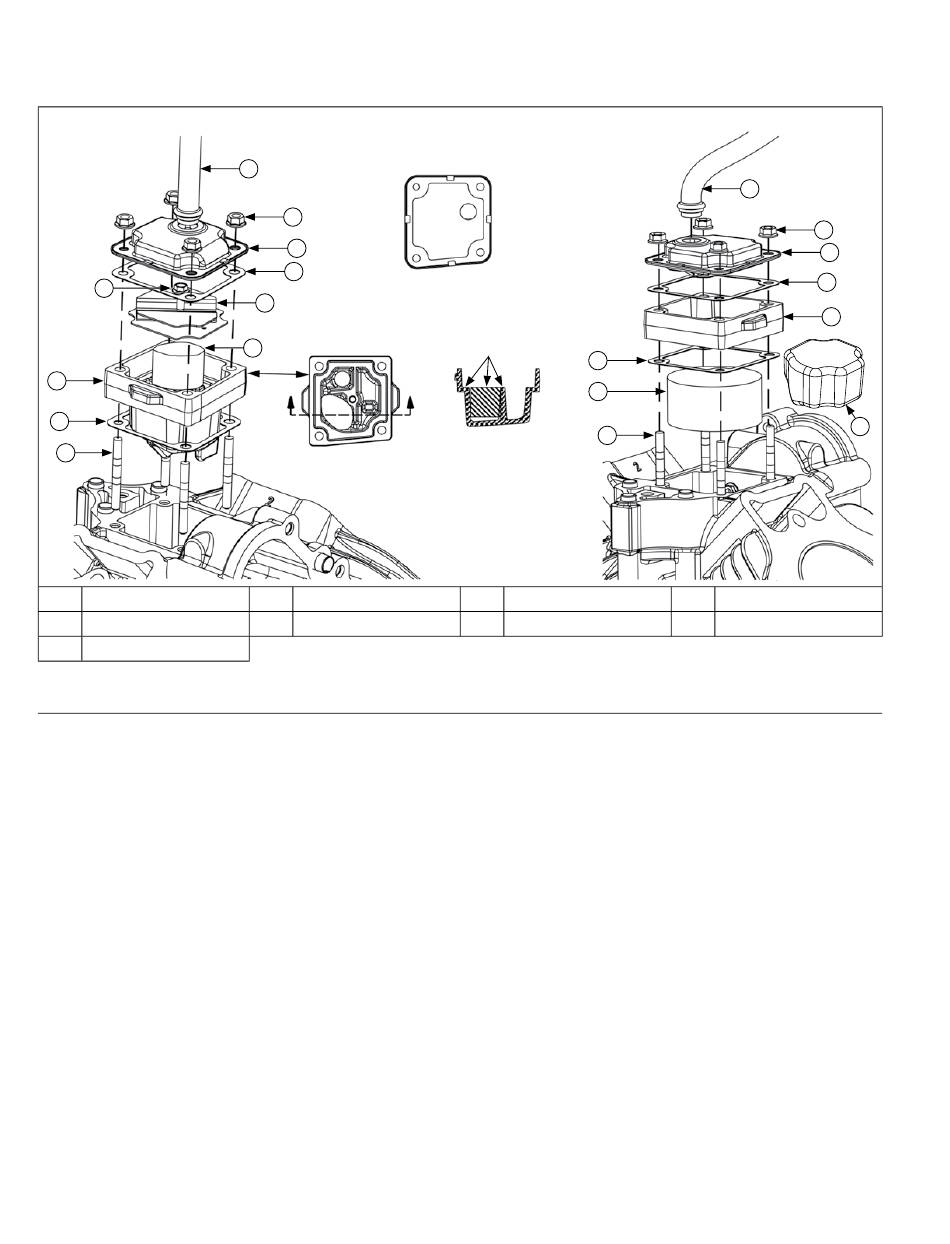

Breather Components
Used on Serial No. 37070xxxxx and Below
E
H
D
I
A Breather Hose
E Screw
I Studs
Install Breather Assembly
1. Make sure sealing surfaces of crankcase and breather cover are clean and free of any nicks or burrs. Do not
scrape surfaces, as this could result in leakage. Install breather mounting studs into crankcase if removed during
disassembly.
2. Install breather chamber gasket as shown. Assemble and install breather assembly components as illustrated.
Make sure filter does not extend above top surface and all parts are properly aligned.
3. Install M5 nuts onto studs, then torque using sequence shown to 12.4 N·m (110 in. lb.).
4. Lightly oil lower end of breather hose and install into hole in breather assembly. Cover should be situated between
2 raised rings of hose.
74
All manuals and user guides at all-guides.com
Breather Fastener
Torque Sequence
A
1
B
C
4
D
F
Filter must Not Extend
G
A A
B Flange Nuts
F Baffle
KohlerEngines.com
Used on Serial No. 37071xxxxx and Higher
3
2
Above Casting
D
G
I
SECTION A-A
C Breather
G Filter
A
B
C
D
H
G
D Gasket
H Adapter
