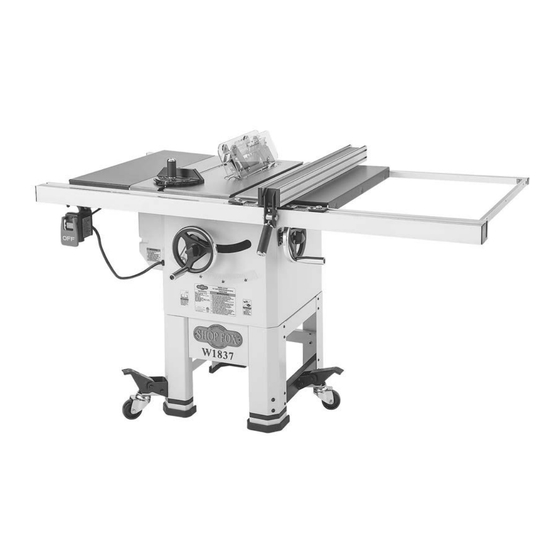

10" 2 hp open-stand hybrid table saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
READ THIS FIRST
Model W1837
***IMPORTANT UPDATE***
Applies to Models Mfd. Since 01/15
and Owner's Manual Revised 06/24
Phone #: (360) 647-0802 • Tech Support: techsupport@shopfoxtools.com • Web: www.shopfoxtools.com
The following change was recently made since the owner's manual was printed:
•
Information on using dado blades has been updated.
Aside from the information contained in this update, all other content in the owner's manual is
applicable and MUST be read and understood for your own safety.
IMPORTANT: Keep this update with the owner's manual for future reference. If you have any further
questions, contact our Technical Support.
Revised Specifications
Main Specifications
Main Information
Maximum Dado Blade Diameter ...................................................................... 8 in.
Revised Inventory
Box 1 Contents
Qty
C. Dado Insert (For 8" Blades Only) .................................................................................. 1
Revised Non-Through Cuts
A non-through cut is a sawing operation where the blade
Fence
does not protrude above the top face of the wood stock,
Saw Blade
as shown in the Figure 1.
Workpiece
Examples of non-through cuts include dadoes and rabbets.
Non-through cuts have a higher risk of injury from kickback
because the blade guard must be removed. However, when
making these cuts with a standard blade, the riving knife
MUST be installed because it still provides some protection.
IMPORTANT: When making non-through cuts with a dado

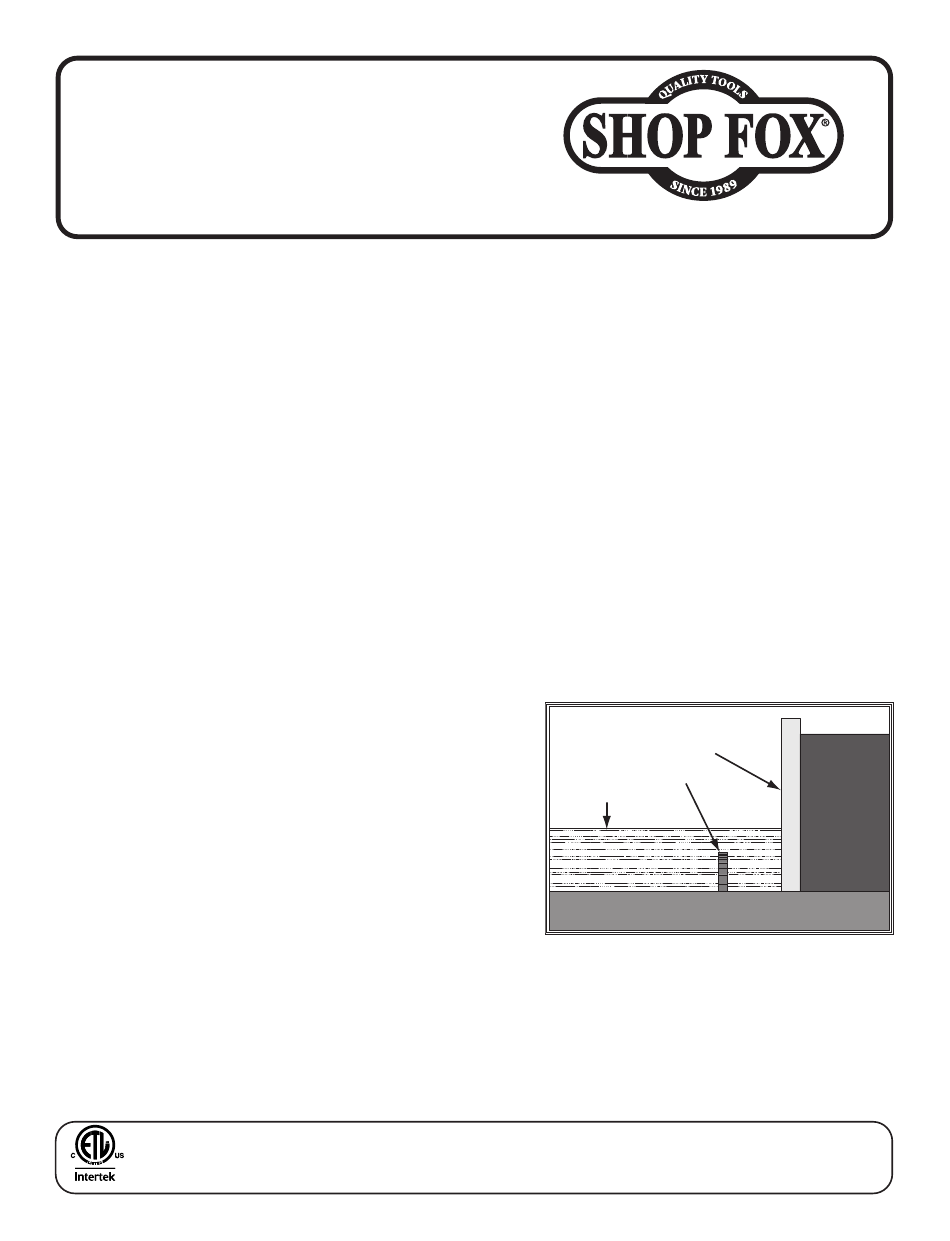

Figure 1. Example of a non-through cut.
blade, the riving knife MUST be removed. Do not attempt
to cut the full depth in one pass. Instead, take multiple
light passes to reduce the load on the blade.
COPYRIGHT © JULY, 2024 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#23308MN
Printed in Taiwan
5012917
