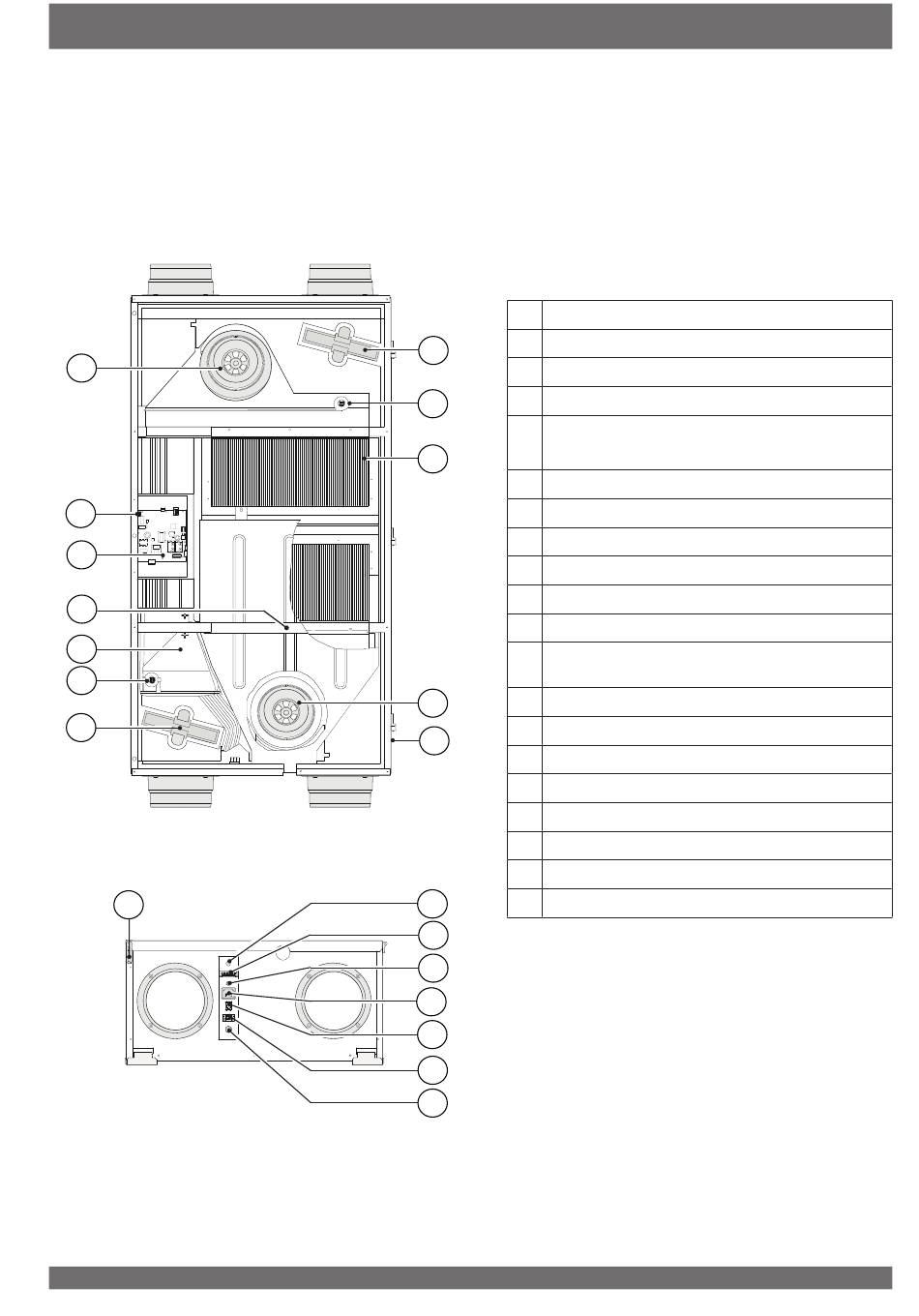

3.4 Exploded view
11
10
9
20
8
7
6
19
Chapter 3
1
2
3
4
5
12
13
14
15
16
17
18
Renovent Sky 300 (Plus) Enthalpy 617605-A
Version
1 Extract air filter
2 Indoor temperature sensor
3 Enthalpy heat exchanger
4 Extract fan
Locking screw front panel
5
(mounted in front panel)
6 Supply air filter
7 Outdoor temperature sensor
8 Bypass
9 Control board
10 Connector X14
11 Supply fan
Sleeve cable 230 V. postheater or extra
12
preheater
13 9-pole connector (only for Plus version)
14 Service connector
15 Connection 230V preheater
16 Modular connector multiple switch
17 Connector eBus
18 Mains cable 230 V.
19 Fall protection front panel
20 Mounting strip
