Summary of Contents for Brink Renovent Excellent 450

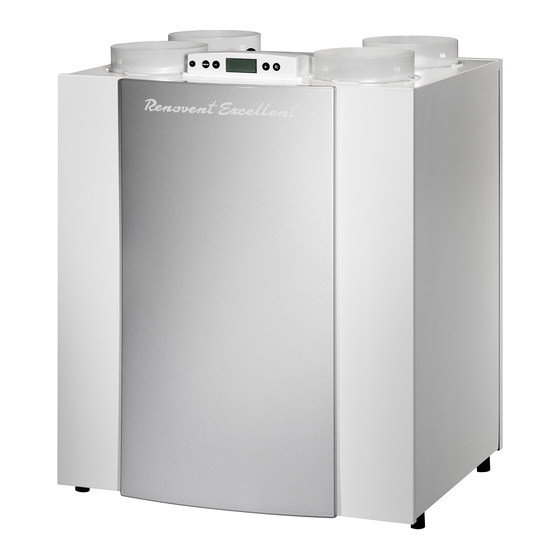

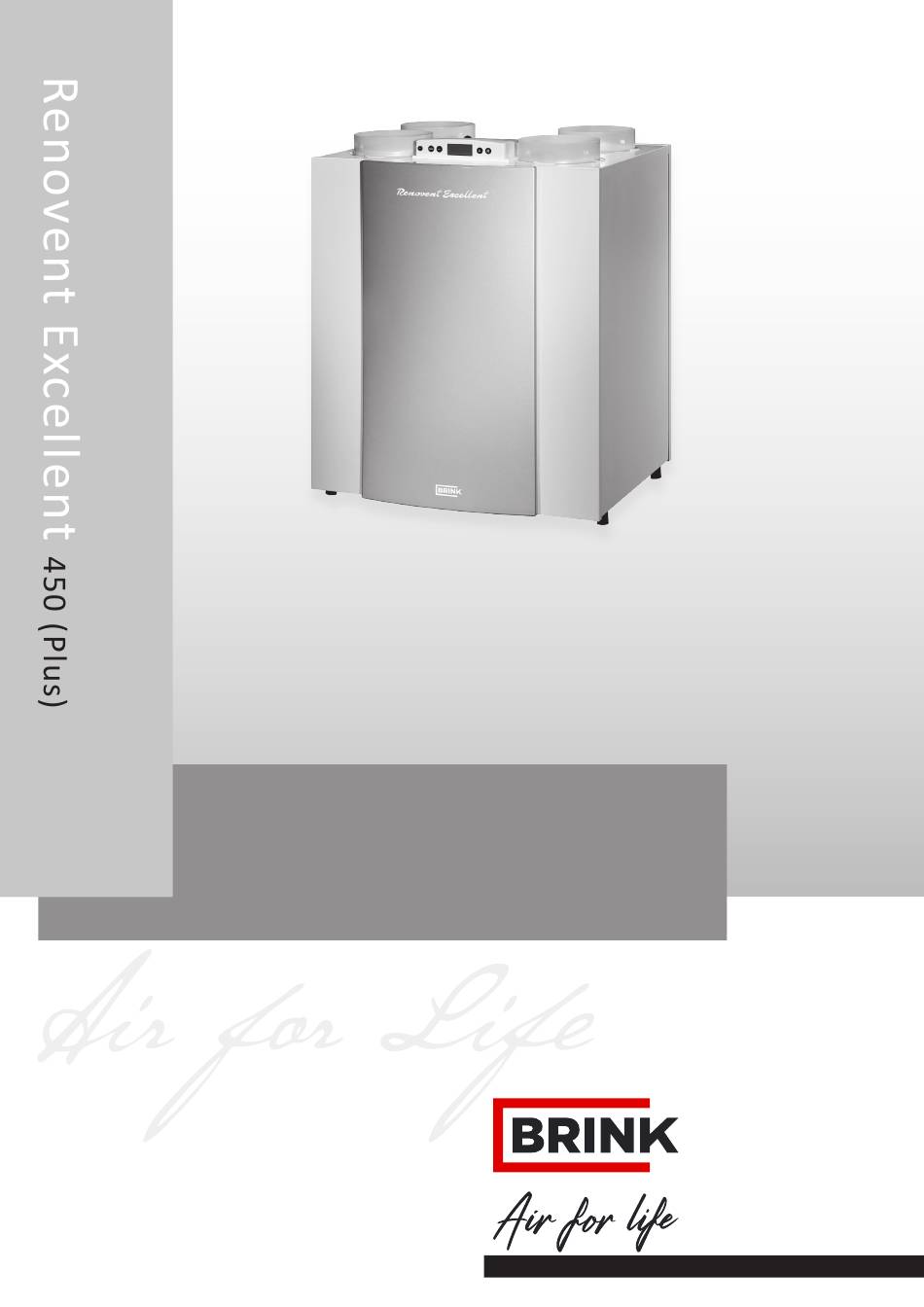

  • Page 1 INSTALLATION INSTRUCTIONS (English) WWW.BRINKAIRFORLIFE.NL 614784-F...
  • Page 3 Children may not play with the appliance. If you need a new power cable, always order the replacement from Brink Climate Systems B.V. To prevent dangerous situations, a damaged mains connection must...
  • Page 4: Table Of Contents

    Readout menu ..........Declaration of conformity ......Service menu..........ErP-values ............ Putting into operation ........... Setting the air quantity ........Other settings installer ........Factory setting ..........Fault ............... Trouble shooting ..........Display codes ..........Renovent Excellent 450 614784-F...
  • Page 5: Delivery

    Before starting installation of the heat recovery unit, check that it has been supplied complete and undamaged. The scope of delivery of the heat recovery unit Renovent Excellent includes the following components: Heat recovery appliance type Renovent Excellent Wall mounting bracket kit containing: PVC condensate discharge connection containing: Documentation set consisting: Renovent Excellent 450 614784-F...
  • Page 6: Accessories Renovent Excellent

    Kit wireless remote control 4 positions (1 transmitter & 1 receiver) 532174 540214 Delivered with insert plate and cover frame 540262 Delivered with insert plate and cover frame Brink Air Control 510498 Electric postheater Excellent 450 Ø 180mm 310650 Electric (extra) preheater Excellent 450 Ø 180mm...
  • Page 7 Chapter 1 Delivery Article description Article code 531771 Filterset 1x ISO Coarse 45% (G3) & 531773 1x ISO ePM 1 50% (F7) (2 stuks) RH-sensor 310657 Mounting support Excellent 450 217035 Enthalpie heat exchanger 532059 Servicetool 531961...
  • Page 9: Application

    Chapter 2 Application The Brink Renovent Excellent is a ventilation unit with heat re- Compared to the Renovent Excellent, the Renovent Excellent Plus has a more extensive control board which increases the of 450 m /h and low-energy fans. connection options.
  • Page 10: Version

    In practice, the value may deviate 1 dB(A) as a result of measuring tolerances Note: The value stated in the circle is the capacity per fan (in Watt) 100 125 150 175 200 225 250 275 300 325 350 375 400 425 450 475 Flow rate [m Fan graph Renovent Excellent 450...
  • Page 11: Connections And Dimensions

    5 = Electric connections 6 = Connection condensate discharge 7 = Wall mounting bracket (note the correct position of the rubber strip, washers and caps) Renovent Excellent 450 Right-handed 4/0 10 mm Mounting wall suspension kit Renovent Excellent 450 left-handed 4/0...
  • Page 12: Exploded View Appliance

    Chapter 3 Version Rear view display cover (Plus version) 1 Service connector Computer connection for service purposes. 2 Display and 4 control buttons Interface between user and control electronics. 3 Control board Contains the control electronics for the basic functions. 5 Preheater Heats up the outdoor air when there is a risk of freezing for the heat exchanger 6 Heat exchanger...
  • Page 13: Operation

    That makes it possible to feed a 230 volt cable, which may be connected to connector X14, two outside the appliance. See § 11.1 for more information on the connection possibilities of connectors X14 and X15. Renovent Excellent 450 614784-F...
  • Page 14: Installation

    5.3 Connecting the condensate discharge The condensate discharge line for the Brink Renovent HR is fed through the lower panel. The condensate must be discharged through a drainpipe. The condensate discharge comes separately with the appliance and the installer must screw it into the underside of the appliance.
  • Page 15 Chapter 5 Installation 60 mm 1 = Renovent Excellent 450 left-handed 4/0 (place level) 6 = Preferred location extract ventilation air; use Brink insu- 2 = Preferred ventilation air supply lated ventilation roof sleeve. 3 = Ventilation air supply under the tiles...
  • Page 16: Electric Connections

    Chapter 5 Installation 5.5 Electric connections 5.5.1 Connecting the power plug The appliance can be connected to an easily accessible, Warning earthed wall socket with the plug that is mounted to the ap- The fans and control board carry a high volt- pliance.
  • Page 17: Display

    (such as a blocking fault) the display will show the the display backlight without changing anything in the menu. operating mode (see § 6.2). A = LCD B = 4 control keys C = service connector Function key Menu Scroll; modify value Renovent Excellent 450 614784-F...
  • Page 18: Operating Mode

    Chapter 6 Display 6.2 Operating mode In operating mode the display may simultaneously show 4 dif- ferent situations/values. = Status fan situation, image coupled appliances (see § 6.2.1) (see § 6.2.2) nal switch contact etc. (see § 6.2.3) = Fault symbol (see § 8.1 and § 8.2) 6.2.1 Status system fan This part of the display shows a fan together with a number.
  • Page 19: Message Text For Operating Mode

    Chapter 6 Display This part of the display may show a message text. The other message texts. The following message text may appear during operating mode. Description on display FILTER cleaned or replaced; for detailed information, see § 9.1 Slave 1, For coupled appliances the mes- Slave 2 etc.
  • Page 20: Settings Menu

    Warning: appliance, changes of settings not described here require consultation with Brink. Use keys ‘ ‘ and ‘+’ key to modify selected set value. Modifying the set value in the settings menu: 1. In operating mode, press the ‘MENU’ key.
  • Page 21: Readout Menu

    Chapter 6 Display 6.4 Readout menu The readout menu can be used to call up a number of 3. Activate the readout menu. current sensor values to obtain more information on the appliance's performance. Modifying values of set- tings is not possible in the readout menu. The readout menu can be displayed as follows.
  • Page 22: Service Menu

    Chapter 6 Display 6.5 Service menu The service menu shows the most recent 10 fault messages. Use the ‘+’ and the ‘ ’ key to scroll through the messages in the service menu. In the event of a locking fault, the settings menu and the readout menu are blocked and only the service menu can be opened;...
  • Page 23: Putting Into Operation

    1. Switching on through software Warning When working on the appliance, always take The appliance can be switched on by pressing the key ‘-’ during 5 seconds. the power plug. > 5 sec. Renovent Excellent 450 614784-F...
  • Page 24: Setting The Air Quantity

    Chapter 7 Putting into operation Proper ventilation contributes to healthy air in the home, opti- to 50, 100, 200 and 300 m The performance and the energy consumption of the Renovent Excellent depend on the pressure drop in the duct system as Important: Mode : Holiday mode...
  • Page 25: Fault

    (if applicable) will be blinking. Contact the installer to remedy this fault. A locking fault cannot be remedied by taking Warning When working on the appliance, always take the voltage from the appliance by pulling the power plug. Renovent Excellent 450 614784-F...
  • Page 26 Chapter 8 Fault Fault Cause Action appliance Action installer code Take the voltage from the appliance. Pressure sensor supply fan - Switches to constant rpm control. E100 defective. Check the red pressure hoses (and - The preheater switches on at outdoor Red pressure hoses blocked (non-locking pressure tubes) for fouling, kinking...
  • Page 27 - Switch on the appliance by pressing the key ‘-’ during 5 seconds. > 5 sec. > 5 sec. taken out. “R The text “FILTER have been reset. Also when the message “FILTER 5 sec. FILTER operating mode. Renovent Excellent 450 614784-F...
  • Page 28 Chapter 9 Maintenance 9.2 Maintenance Remove the heat exchanger. Be careful not to damage the Installer maintenance includes cleaning the heat exchanger foam parts in the appliance. and fans. Dependent on the conditions, this must done about once every three years. >...
  • Page 29 Chapter 9 Maintenance Remove 4 pressure hoses and 3 connectors from the 11 Clean the fans with a soft brush. board. Slide the fan assembly out of the appliance. 12 Replace the separated part of the fan assembly and recon- nect the loose pressure hoses to the pressure tubes.
  • Page 30 J = Service connector T = Input 0-10 V (or make contact) (Plus version) K = Valve motor bypass U = Make contact or input 0-10 V)(Plus version) L = Renovent Plus version Z = RH-sensor (option) M = Brink Air control (option)
  • Page 31 Conn. 24 volt , 4.5 VA maximum (5 = ground , 6 = +) 7 & 8 Connection postheater sensor or and outdoor Control signal valve 0 or 10 V ( 9 = + , 5 = ground) Renovent Excellent 450 614784-F...
  • Page 32 Chapter 11 Electric connections accessories A multiple switch can be connected to the modular connector X2 of the Renovent Excellent. This modular connector X2 is directly 230 V 50 Hz Wire colours C1 - C6 may vary dependent on the type of modular cable used. mounted facing the mark on the modular cable.
  • Page 33 Chapter 11 Electric connections accessories 11.3 Couple through eBus contact; Important: Because of polarity sensitivity, always connect contacts X1-1 to X1-1 and contacts X1-2 to X1-2. Never connect X1-1 and X1-2. A maximum of 10 appliances (1 Master + 9 Slave max.) 230V 230V 230V...
  • Page 34 Chapter 11 Electric connections accessories ditional temperature sensor that must be wired to connector X15. Please refer to the mounting instructions that came with the heater for more extensive information regarding installation of the postheater or the extra preheater. Postheater 230V 50Hz 230V...
  • Page 35 Chapter 11 Electric connections accessories A geo heat exchanger can be connected to the Renovent Excellent Plus. 30°C A geo heat exchanger can be connected to connec- tion no. 5 (GND) and no. 9 (+) of 9-pole connector X15; this 9-pole connector is directly accessible at the rear of the top without having to dismount the display cover.
  • Page 36 Chapter 11 Electric connections accessories An external switch contact (e.g. switch or relay contact) can be connected to the Renovent Excellent Plus. This external switch contact can be connected to connections no. 1 and no. 2 of 9-pole connector X15; this 9-pole connector is directly accessible at the rear of the top without having to dismount the display cover (see also §11.1).
  • Page 37 Chapter 11 Electric connections accessories The Renovent Excellent Plus can be equipped with an external provision with 0-10 volt control) (e.g. humidity sensor or CO sensor). This external provision can be connected to pins no. 3 and no. 4 of 9-pole connector X15; this 9-pole connector is directly accessible at the rear of the top without having to dismount the display cover (see also §11.1).
  • Page 38 When ordering parts, in addition to the article code number (see exploded view), please state the type of the heat recovery Appliance type : Renovent Excellent 450 4/0 R appliance, the serial number, the year of production and the name of the part:...
  • Page 39 Door closing (2 pcs) 531297 EPS bottom plate (3 pcs) incl. condensate outlet connection 531798 Filter door left 531934 Filter door right 531935 The mains cable has a print connector. When replacing it, always order a replacement mains cable Brink without prior notice.
  • Page 40 Chapter 13 Setting values STEP FACTORY DISPLAY TEXT + DESCRIPTION ADJUSTING RANGE STEP SETTING SYMBOLS 50 m /h or 50 m 100 m 50 m /h - 450 m 200 m 50 m /h - 450 m 300 m 50 m /h - 450 m 05 Bypass temperature 24,0 °C...
  • Page 41 Chapter 13 Setting values STEP FACTORY SETTINGS DISPLAY TEXT + DESCRIPTION ADJUSTING RANGE STEP REN. EXC. PLUS SYMBOLS 2 (= Flow rate mode 1) Extract fan mode 3 (= Flow rate mode 2) 4 (= Flow rate mode 3) switching input 1 5 (= Multiple switch) 7 (= no fan activation) 0 (= normally open contact)
  • Page 42 Max. PPM eBus CO -sensor 4 1200 Flow correction 100% 90% - 110% Default position switch 0 - 1 STEP NO. DESCRIPTION FACTORY SETTING ADJUSTING RANGE STEP Brink Connect function (ex- tern, Brink Connect no RHT Brink Connect sensor) Brink Connect (intern )
  • Page 43 Chapter 14 Declaration of conformity DECLARATION OF CONFORMITY This declaration of conformity is issued under the sole responsibility of the manufacturer. Manufacturers: Brink Climate Systems B.V. Address: The Netherlands Product Plus The product described above complies with following directives: The product described above has been tested according to the following standards: Staphorst, 11-10-21 A.
  • Page 44 Chapter 14 ERP-values Supplier: Brink Climate Systems B.V. Model: The annual electricity The annual heating saved Energyclass Climate zone Type of control consumption (AHS) in kWh/m²/a (SEC) (AEC) in kWh in kWh Manual -34,69 4391 Clock -34,35 4416 Average 1 Sensor (RH/CO...
  • Page 46 BRINK CLIMATE SYSTEMS B.V. P.O.Box 11 NL-7950 AA Staphorst The Netherlands Wethouder Wassebaliestraat 8 NL-7951 SN Staphorst The Netherlands T. +31 (0) 522 46 99 44 F. +31 (0) 522 46 94 00 info@brinkclimatesystems.nl www.brinkclimatesystems.nl...
