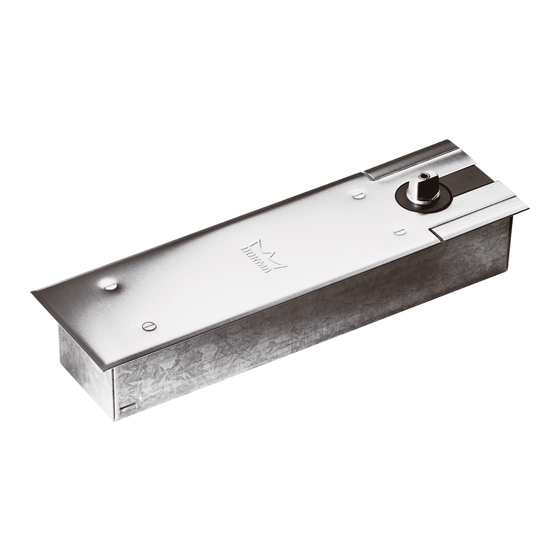

- Page 1 BTS75V/P, 80/P x 75520 Pocket Pivot BTS75V/PF, 80/PF x 75523 Pocket Pivot Package P & PF Surface applied track and 3-hour rated Installation instructions 08083293 – 02-2021 | EN |...
-
Page 2: Table Of Contents
BTS75V/P, 80/P x 75520 Pocket Pivot Table of Contents BTS75V/PF, 80/PF x 75523 Pocket Pivot Installation Instructions Table of contents Installation Attach spindle and install closer Install slide block to arm Install slide arm (7451) into track and install... -
Page 3: Installation
BTS75V/P, 80/P x 75520 Pocket Pivot Spindle BTS75V/PF, 80/PF x 75523 Pocket Pivot Installation Instructions Closer Slide block Installation 1.1 Attach spindle and install closer Fig.1 Door Door 1.1.1 Slide washer over tapered Spindle screw 3° offset spindle square end of spindle until fully seated in groove. -
Page 4: Install Slide Arm (7451) Into Track And Install Track
BTS75V/P, 80/P x 75520 Pocket Pivot Track BTS75V/PF, 80/PF x 75523 Pocket Pivot Installation Instructions 1.3 Install slide arm (7451) into track and install track Fig.3 1.3.1 Slide arm assembly into track. 1.3.2 Install track to door with screws passing through end Track blocks. -
Page 5: Templates
BTS75V/P, 80/P x 75520 Pocket Pivot Templates BTS75V/PF, 80/PF x 75523 Pocket Pivot Installation Instructions Templates 2.1 Closer template Fig.5 1-3/4" THICK ONLY TRACK (25) (25) SPINDLE C C OF DOOR 2-1/8 FOR 1/4-20 MACHINE SCREWS USE No.7 DRILL & TAP (54) FOR WOOD SCREWS PROVIDED USE 5/32"... - Page 6 BTS75V/P, 80/P x 75520 Pocket Pivot Templates BTS75V/PF, 80/PF x 75523 Pocket Pivot Installation Instructions 2.2 Closer template (continued) Fig.6 C OF DOOR DIRECTION OF 25/32 DOOR OPENING 1-1/4 (20) (32) SEE NOTE 5 (25) 74003 SPINDLE FINISHED FLOOR...
-
Page 7: Adjustments
BTS75V/P, 80/P x 75520 Pocket Pivot Adjustments: closing speeds BTS75V/PF, 80/PF x 75523 Pocket Pivot Installation Instructions Adjustments 3.1 Adjust closing speeds Fig.7 BTS75V Valve “D” Controls closing speed from 90° to 70° Valve “E” Controls closing speed from approximately 70°-0°... -
Page 8: Adjust Spring Tension (If Necessary)
BTS75V/P, 80/P x 75520 Pocket Pivot Adjustments: spring tension BTS75V/PF, 80/PF x 75523 Pocket Pivot Installation Instructions Sealing compound Covers 3.2 Adjust spring tension (if necessary) Fig.8 Spring tension Door width Full turns Interior Exterior 2’-6” [762] BTS75V 3’ [914] 2’-6”... - Page 9 DORMA USA, Inc. T: 800-523-8483 www.dormakaba.us...
