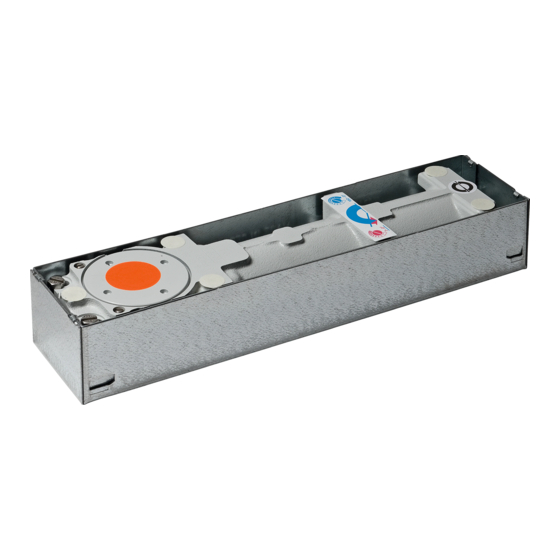

Dormakaba BTS80 Installation Instructions Manual
Hide thumbs
Also See for BTS80:
- Installation instructions manual (10 pages) ,
- Installation instructions manual (10 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Dormakaba BTS80
Summary of Contents for Dormakaba BTS80
- Page 1 BTS80, 80F Installation instructions 08076346 – 12-2019 | EN |...
-
Page 2: Table Of Contents
BTS80, 80F Installation Instructions Table of Contents Table of contents Installation Attach spindle and install closer Install door Templates Closer template Adjustments Adjust door clearances (if necessary) Adjust closing speeds Sealing compound (optional) Covers Install cover BTS80 Closers 08076346... -
Page 3: Installation
BTS80, 80F Installation Instructions Spindle and closer Install door Installation 1.1 Attach spindle and install closer Fig.1 Spindle screw 1.1.1 Slide washer over tapered square end of spindle until fully seated in groove. Spindle 1.1.2 Fasten spindle with spindle screw provided. -
Page 4: Templates
BTS80, 80F Installation Instructions Templates Templates 2.1 Closer template Fig.3 2-1/8” + 1/8” [54 + 3] 1. Do not scale drawing. 2. Dimensions are in inches (mm). 13-7/16” [341] BTS80 BTS80F A - Fastening screws A - Fastening screws... -
Page 5: Adjustments
BTS80, 80F Installation Instructions Adjustments: clearances Adjustments: closing speeds Adjustments 3.1 Adjust door clearances (if necessary) Fig.4 3.1.1 Closer can be raised approximately 5/32” within the cement case. 3.1.2 Loosen fastening screws “A”. 3.1.3 Turn height adjustment screws “B” CW until desired height is obtained. -
Page 6: Sealing Compound (Optional)
BTS80, 80F Installation Instructions Sealing compound Covers 3.3 Sealing compound (optional) Fig.6 Sealing compound is recommended for exterior doors or areas with excessive moisture. Make all final adjustments before adding compound. Refer to instructions packed with compound for full details. - Page 7 DORMA USA, Inc. T: 800-523-8483 www.dormakaba.us...
