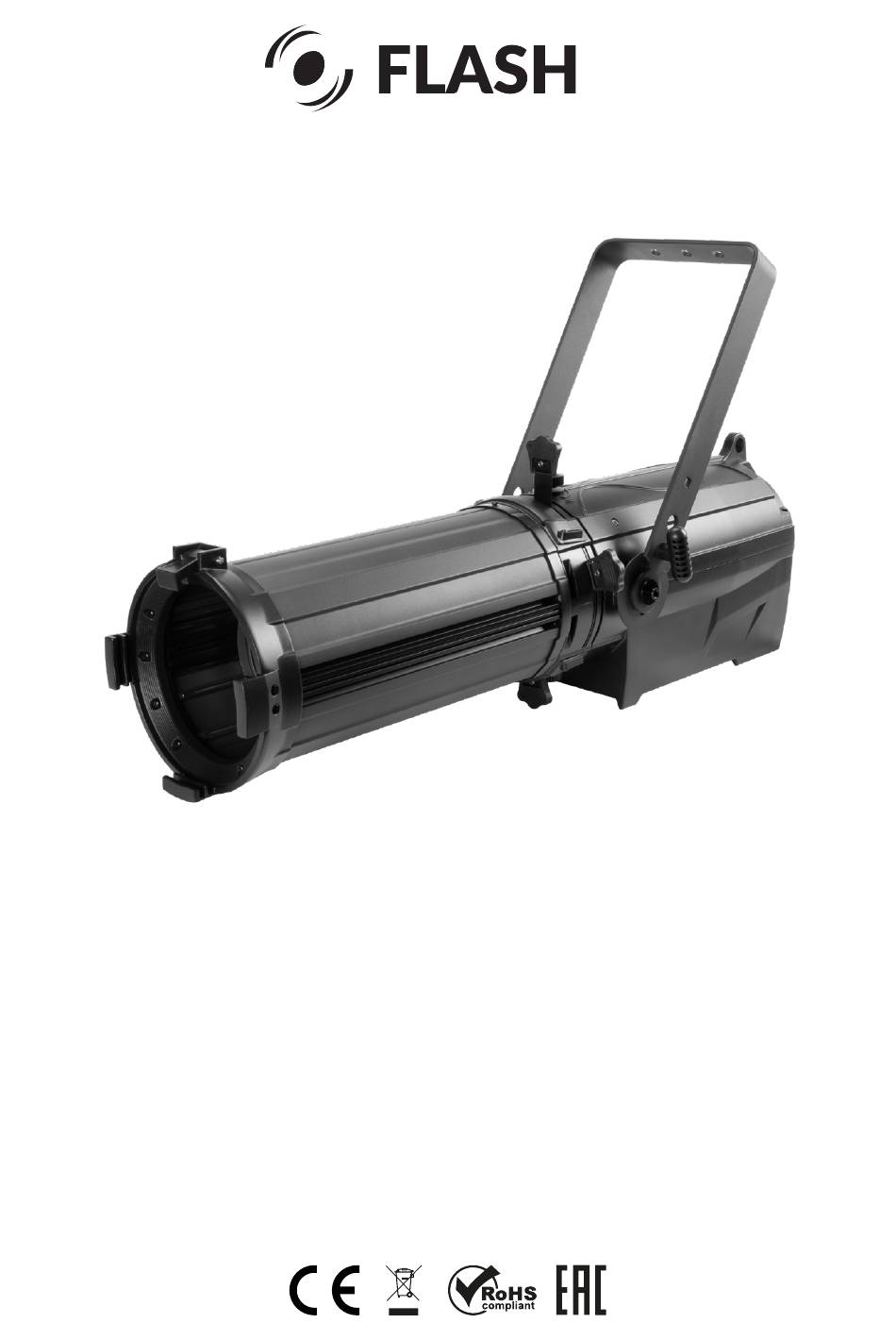

- Page 1 SPOTLIGHT PROFILE 200W RGBW 12o-30o MANUAL User Manual EAN [5905358808610] Art No F2000364...
-
Page 2: Table Of Contents
Pages: 2-9 C O N T E N T S INTRODUCTION SAFETY INFORMATION PRODUCT INFORMATION INSTALLATION CONNECTION DMX CHART WARNING! Use clamp to rig the fixture. WARNING! When clamping the fixture to a truss or other structure at any other angle than with the yoke hanging vertically downwards, use two clamps of half-coupler type. -
Page 3: Introduction
I N T R O D U C T I O N THANK YOU FOR PURCHASING SPOTLIGHT. FOR SAFETY RE- ASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CARE- FULLY READ THE INSTRUCTIONS. S A F E T Y I N F O R M AT I O N Please keep this User Manual In the event of serious ope- for future consultation. -
Page 4: Product Information
P R O D U C T I N F O R M AT I O N Light Source: DMX channel mode 9 CH RGBW 4in1 LED IP Rating: IP25 Power consumption: 200W Housing made: Aluminium Power supply voltage: Cooling: Active 100-240V, 50/60Hz AC ... -
Page 5: Connection
The package includes: User ❹ Manual ❶ ❶ - SPOTLIGHT (1 pc) ❷ - Power cable type powerCON (1 pc) ❸ - powerCON out plug (without cable) - (1 pc) ❹ - User Manual (1 pc) ❷ ❺ - DMX cable (1 pc) ❺... - Page 6 Diagram of connection of devices by DMX cable. Controller DMX 512 DMX 512 120Ω IMPORTANT! The maximum number of devices connected in series via power cable is 8 pcs. The connection is performed using power cable with powerCON con- nector (included). The device must be operated by qualified personnel. CAUTION! In the case of cable damage do not attempt to repair.
- Page 7 Color screen display window comparison table D I S P L AY 1 DMX-Addr 001 0-255 Green 0-255 2 Key-ADJ Blue 0-255 White 0-255 Dodge 0-255 Auto 3 Auto-ADJ Auto-Sound Speed 0-100 4 Screen Rotate ON/OFF Comparison table of background display window in English (To enter the MENU, long press ENTER) DISPLAY The initial value...
-
Page 8: Dmx Chart
D M X C H A R T FUNCTION DESCRIPTIONS R, G, B, W Total dimming, linear dimming, Dimming from dark to light Total Strobo R, G, B, W Total strobo, from dark to light R Dimming R, dimming, from dark to light G Dimming G, dimming, from dark to light B Dimming... - Page 9 After power-on, turn on the console power supply. When the signal of DMX512 console is not recived, the DMX indicator does not turn on. When the signal of DMX512 console is received, the DMX indicator lights up, which is controlled by the console signal. In the address code state, if there is no console after multi-computer connection, the master-slave online function can be realized.
