DJ
SERIES:

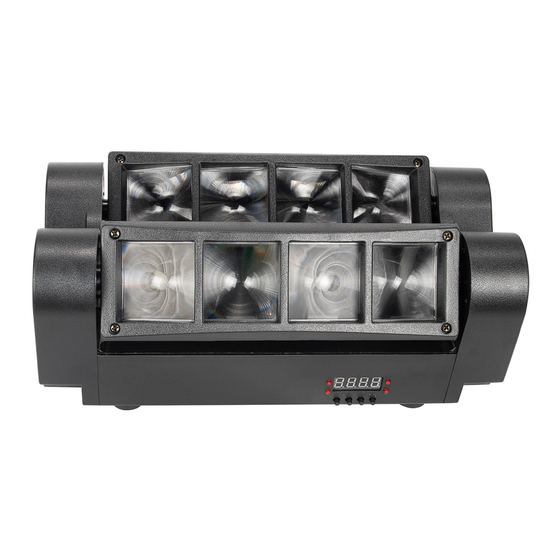

LED SPIDER MINI
RGBW
User Manual
Instrukcja Obsługi
EAN [5905358808740]
Art No F7300259

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DJ LED SPIDER MINI RGBW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Flash DJ LED SPIDER MINI RGBW

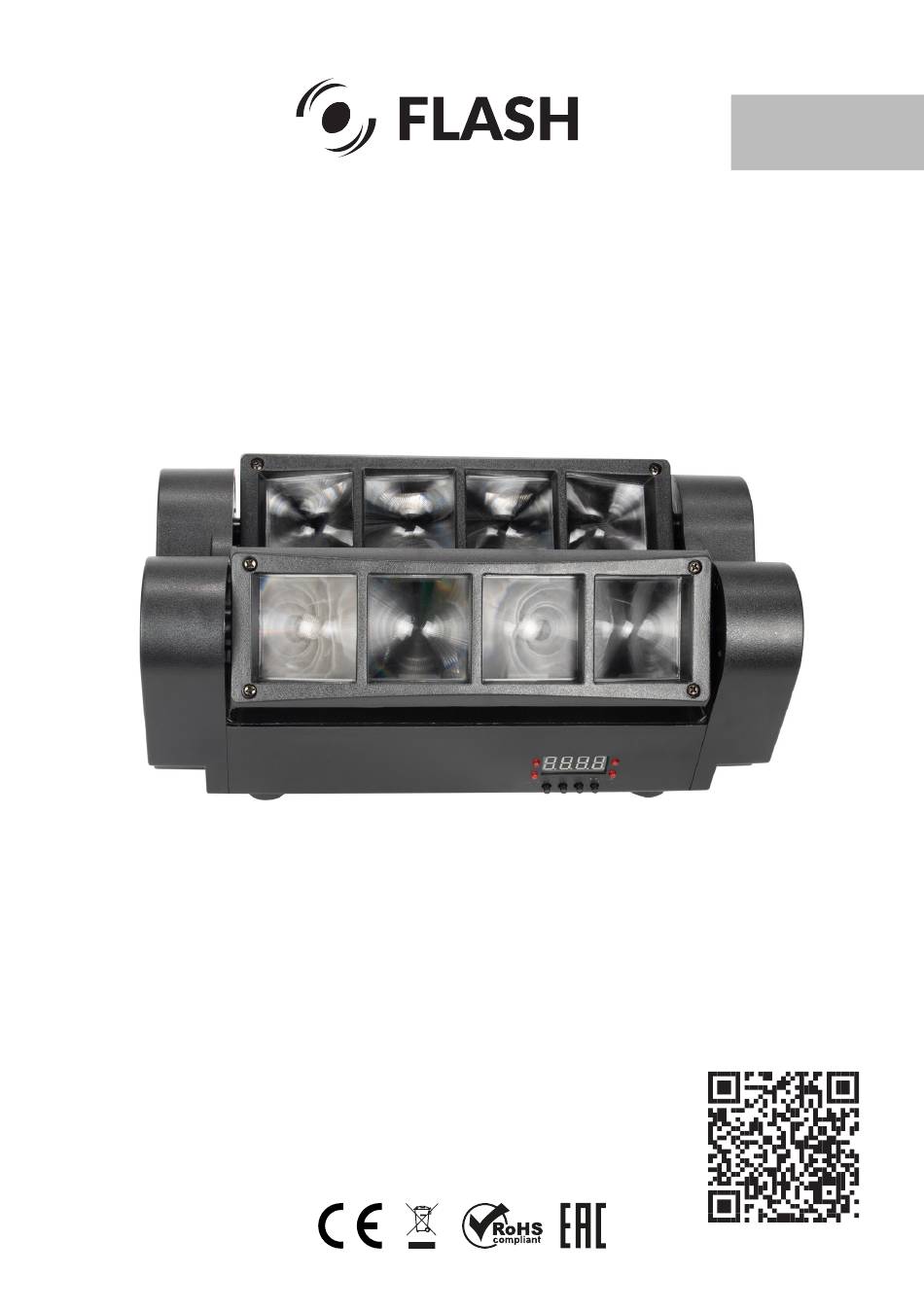

  • Page 1 SERIES: LED SPIDER MINI RGBW User Manual Instrukcja Obsługi EAN [5905358808740] Art No F7300259...
  • Page 2: Table Of Contents

    Pages: 2-11 Strony: 12-20 C O N T E N T S INTRODUCTION SAFETY INFORMATION PRODUCT INFORMATION INSTALLATION CONNECTION DMX CHART WARNING! Use clamp to rig the fixture. WARNING! When clamping the fixture to a truss or other structure at any other angle than with the yoke hanging vertically downwards, use two clamps of half-coupler type.
  • Page 3: Introduction

    I N T R O D U C T I O N THANK YOU FOR PURCHASING LED SPIDER. FOR SAFETY RE- ASONS AND TO ENSURE THE TROUBLE-FREE OPERATION, CARE- FULLY READ THE INSTRUCTIONS. S A F E T Y I N F O R M AT I O N Please keep this User Manual In the event of serious ope- for future consultation.
  • Page 4: Product Information

    P R O D U C T I N F O R M AT I O N Light Source: 8x3W high DMX Channels: 7CH/15CH power RGBW LEDs Dimmer: 0-100% linear dimmer (R:2, G:2, W:2) Beam angle: 4.5° Each LED singly controlled Lighting angle: 120°...
  • Page 5: Connection

    The package includes: ❶ - LED SPIDER (1 pc) ❶ ❷ - Power cable type IEC C13 (1 pc) ❸ - Mounting bracket and two screws ❸ ❹ - User Manual (1 pc) ❷ User Manual ❹ C O N N E C T I O N The device is equipped with the following interfaces: 1.
  • Page 6 Diagram of connection of devices by DMX cable. Controller DMX 512 DMX 512 120Ω The connection is performed using power cable with IEC C13 connec- tor (included). The device must be operated by qualified personnel. CAUTION! In the case of cable damage do not attempt to repair. Repla- cement or repair can be made only on the manufacturer or by a person with appropriate permissions Using lamp, the change rate of power voltage should be within ±10%,...
  • Page 7 Display Function Menu Addr A001-A512 Address Setting CHNd 7 Channel option 15CH 15 Channel option SLnd NASt Master option SLAu Slave option SoUn Sound control selected Effect selected Sh24 auto effect; SPed SP01-08 SHnd Sh1 -- sh24 speed from slow to fast SoUd ON, OFF Sound control Switch...
  • Page 8 D M X C H A R T 7 Channel Mode Channel Function Value Instruction Motor1 route 0-255 0º-135º Motor2 route 0-255 0º-135º Sum Dimmer 0-255 0º-135% Strobe No strobe 10-255 Strobe speed from slow to fast Effect No effect 8-17 Effect 1 18-27...
  • Page 9 Channel Function Value Instruction 247-255 Effect 25 Sound Effect speed 0-255 From fast to slow Reset 241-250 For 5 seconds to resset 15 Channel Mode Channel Function Value Instruction Motor1 route 0-255 60º-150º Motor2 route 0-255 60º-150º Sum Dimmer 0-255 0-100% Strobe No Strobe...
  • Page 10 Channel Function Value Instruction 128-136 Effect 13 137-146 Effect 14 147-156 Effect 15 157-166 Effect 16 167-176 Effect 17 177-186 Effect 18 187-196 Effect 19 197-206 Effect 20 207-216 Effect 21 217-226 Effect 22 227-236 Effect 23 237-246 Effect 24 247-255 Effect 25 Effect speed 0-255...
  • Page 12 S P I S T R E Ś C I WPROWADZENIE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA INFORMACJE O PRODUKCIE INSTALACJA POŁĄCZENIE TABLICA DMX OSTRZEŻENIE! Do zamocowania urządzenia należy użyć zacisku. OSTRZEŻENIE! Podczas mocowania urządzenia do kratownicy lub innej konstrukcji pod innym kątem niż z jarzmem zwisającym pionowo w dół, na- leży użyć...
  • Page 13 W P R O W A D Z E N I E DZIĘKUJEMY ZA ZAKUP LED SPIDER. ZE WZGLĘDÓW BEZPIE- CZEŃSTWA I W CELU ZAPEWNIENIA BEZAWARYJNEJ PRACY NA- LEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ. INFORMACJE DOTYC ZĄCE BEZ PIEC Z EŃST WA Niniejszą...
  • Page 14 I N F O R M A C J A O P R O D U K C I E Źródło światła: 8x3W wysokiej Kanały DMX: 7CH/15CH diody LED RGBW o dużej mocy Dimmer: Liniowy 0-100% (R:2, G:2, W:2) Kąt wiązki: 4.5° Każda dioda LED sterowana Kąt oświetlenia: 120°...
  • Page 15 Opakowanie zawiera: ❶ - LED SPIDER (1 szt.) ❷ - Kabel zasilający typu ❶ IEC C13 (1 szt.) ❸ - Wspornik montażowy i dwie śruby ❸ ❷ ❹ - Instrukcja Obsługi (1 szt.) User Instrukcja Manual Obsługi ❹ P O Ł A C Z E N I E Urządzenie wyposażone jest w następujące interfejsy: 1.
  • Page 16 Schemat połączenia urządzeń kablem DMX. Controller DMX 512 DMX 512 120Ω Podłączenie odbywa się za pomocą kabla zasilającego ze złączem IEC C13 (w zestawie). Urządzenie musi być obsługiwane przez wykwa- lifikowany personel. UWAGA! W przypadku uszkodzenia kabla nie należy podejmować prób naprawy.
  • Page 17 Menu funkcji wyświetlacza Addr A001-A512 Address Setting CHNd 7 Channel option 15CH 15 Channel option SLnd NASt Master option SLAu Slave option SoUn Sound control selected Effect selected Sh24 auto effect; SPed SP01-08 SHnd Sh1 -- sh24 speed from slow to fast SoUd ON, OFF Sound control Switch...
  • Page 18 TA B L I C A D M X Tryb 7 Channel Channel Function Value Instruction Motor1 route 0-255 0º-135º Motor2 route 0-255 0º-135º Sum Dimmer 0-255 0º-135% Strobe No strobe 10-255 Strobe speed from slow to fast Effect No effect 8-17 Effect 1 18-27...
  • Page 19 Channel Function Value Instruction 247-255 Effect 25 Sound Effect speed 0-255 From fast to slow Reset 241-250 For 5 seconds to resset Tryb 15 Channel Channel Function Value Instruction Motor1 route 0-255 60º-150º Motor2 route 0-255 60º-150º Sum Dimmer 0-255 0-100% Strobe No Strobe...
  • Page 20 197-206 Effect 20 207-216 Effect 21 217-226 Effect 22 227-236 Effect 23 237-246 Effect 24 247-255 Effect 25 Effect speed 0-255 From slow to fast Reset 241-250 For 5 seconds to resets FLASH-BUTRYM Sp.j. Skarbimierzyce 18 · 72-002 Dołuje · POLAND WWW.FLASH-BUTRYM.PL...
