Danfoss VLT FC 102 Installation Manual page 88

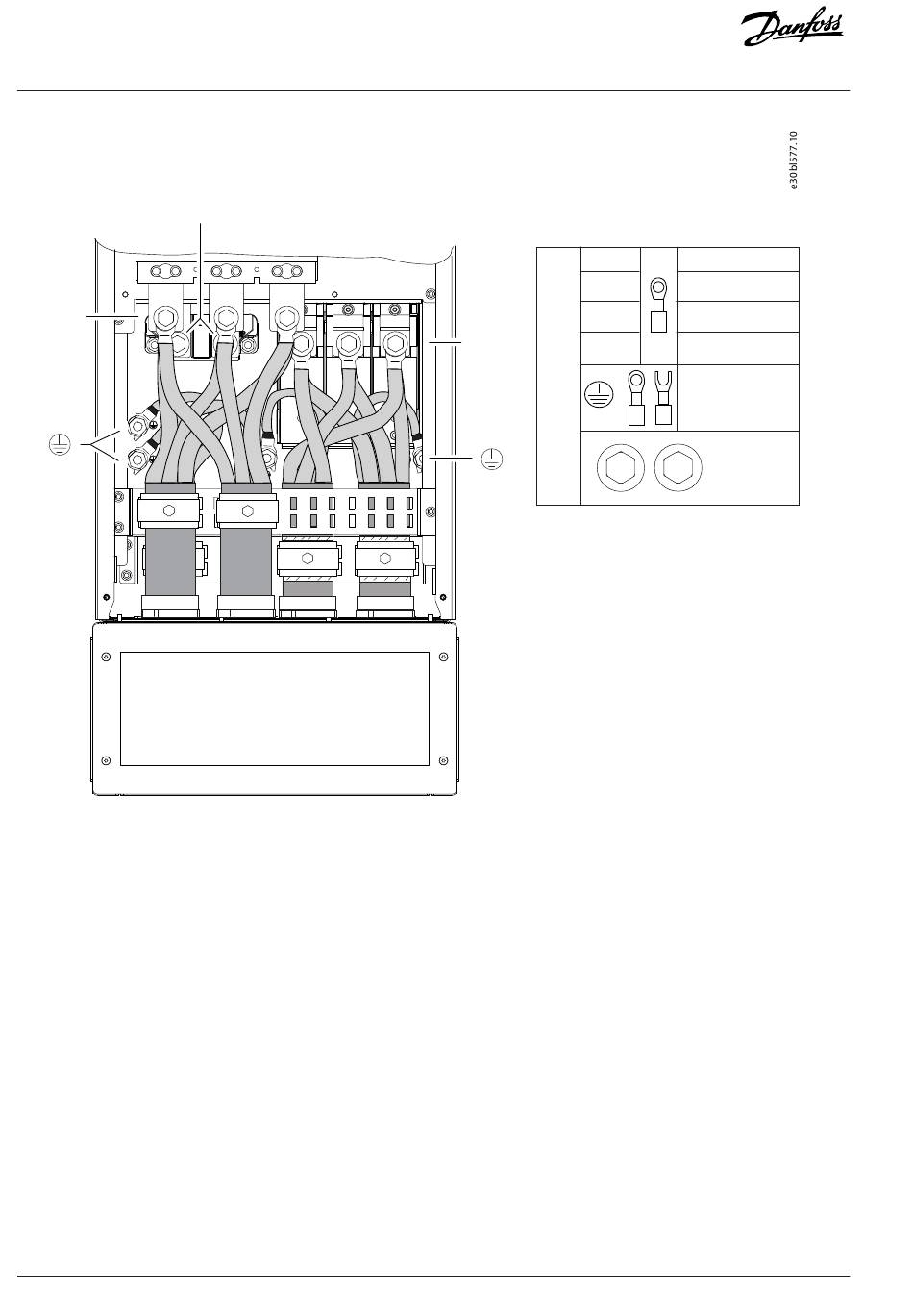

VLT® Frequency Converters, 90–400 kW
D8h
+R, –R /+Regen, –Regen
L1, L2, L3
| Danfoss A/S © 2024.06
88
L1, L2, L3
D8h
U, V, W
+R
–R
U, V, W
+Regen
–Regen
17
mm
AN41701949085203-000201 / 130R1277
M10 [19 Nm (168 in-lb)]
M10 [19 Nm (168 in-lb)]
M10 [19 Nm (168 in-lb)]
M10 [19 Nm (168 in-lb)]
M8 [9.6 Nm (84 in-lb)]
13
mm
