Alpha Technologies GDI User And Programming Manual

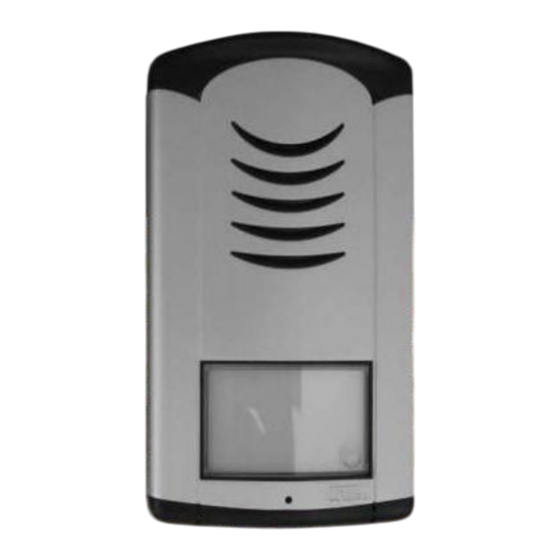

Gsm door intercom
Hide thumbs

Advertisement

Quick Links

Download this manual
G
S
M
D O O R
I N T E R C O M
GDI
User and programming manual V 2.7

Advertisement

loading
Need help?

Need help?

Do you have a question about the GDI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alpha Technologies GDI

Summary of Contents for Alpha Technologies GDI

  • Page 1 D O O R I N T E R C O M User and programming manual V 2.7...

  • Page 2: Basic Features

    Basic technical parameters: Power supply: 12 (9-24) V AC/DC, 500mA (optionally integrated ACU 2000mAh for cca 48h of operation) GSM: 850/900/1800/1900 MHz dimension: 185 mm x 99 mm x 40 mm buttons: 1 or 2 up selected casing (for every button max. 7 phone numbers dialed progressively) relay: 2x relay with switching contact...
  • Page 3 2. Incoming call: up settings will be incoming call picked up either for all calls or for saved numbers on SIM card only. (connection for saved numbers only). GDI might also reject incoming calls (see later in relay function). Before picks up might GDI alert by preprogrammed melody (adjustable).
  • Page 4 When is voice signaling presented during a call it is hearable on both sides of connection (for example „open“) Detection of start / restart. GDI indicates the start device (power) switch relay1 on 7s. This function can be used for...
  • Page 5 Installation Assembly of front panel CAUTION! During assembly of front panel you might connect/disconnect speaker connector (via schematics) Assembly of cards backlighting...
  • Page 6 GDI Wall mounting Wall mounting assembly you make by attached screws (5mm).
  • Page 7 Replacing backlighting cards after wall mounting Cards inserting (name cards Every button has individual card hold by plastic flag. (via picture).
  • Page 8 Control elements and connection Switch for backup battery SIM reader For operation put to For operation position ON insert the SIM Backup battery Restart button LED bad antenna connector polarity of backup battery Setting of speaker loudness Loudness is also possible setup by parameter input...
  • Page 9 Basic connection - 2 electrical locks and possibility control 2 doors (gates) 2x PSU – possibility to use 2x independent PSU. One for GDI and second for electrical locks. The electrical lock 2 is connected inversely (fire emergency doors). External camera or lighting activation.
  • Page 10 Start 1. connect antenna and insert the SIM We recommend use SIM without PIN. When you need PIN setup PIN 1234. Release the SIM holder (1). Move it up (2). Insert the SIM in correct position (3) to the holder. Close the SIM holder (4).
  • Page 11 4. On the SIM save phone number which should be dial after pressing button 1 (A), under name „ABUTTON1“. 5. When you have GDI with 2 numbers – save on the SIM also phone number which will be dial after pressing button 2 (B), under name „BBUTTON1“.
  • Page 12 CAUTION: antenna must be also connected. Then connect speaker connector and connect PSU. The RED LED lights on and after a while yellow LED start flashing (via table). The GDI signaling by tones or by voice SIM reading, GSM network registration and ready for operation (via table).
  • Page 13 By editor of SMS messages change at received SMS word READ to WRITE as same as adjust parameters up your needs. Such adjusted SMS send back to GDI as reply. The parameters will be setup. A) Setting by PC through USB via GDIset (optional) 1.
  • Page 14 2. Remove front cover of GDI and insert connector of programing module into GDI (via picture). On programming module must light on red LED (It is flashing same way like yellow LED on GDI) 3. Run GDIset program and setup appropriate port.
  • Page 15 GDI operation (when operation is not stopped by button STOP) Record savings from monitor to file (for service purposes – record sending) Programming mode After button press STOP program sends to GDI command for stop and wait for GDI response (via) Waiting for GDI response...
  • Page 16 PC Reading of all programmed parameters including numbers from PC GDIset version and fw GDI SIM number of position GSM provider where Field to program up to 7 phone numbers is GDI registrated for second button...
  • Page 17 Item Phone Book Phone book of authorized numbers for ringing opening as same as automatic call receiving. Position for name Position for phone number Add line above cursor Delete line with cursor Find inserted name...

  • Page 18: Item Setting

    - reject (opening by ringing) - automatically picked up calls from numbers at list only - pick up all calls Signalization - Informing GDI tones - Ringing during incoming call - Voice signalling Waiting Call Waiting to dial the next number on...
  • Page 19 Item relay Parametres setting for relay 1 Parametres setting for relay 2 Relay mode: - camera - light - button - control by SMS Relay control by ringing only from SIM phone numbers Relay control by ringing from all phone numbers DTMF code for relay activation during a call Relay time of activation...
  • Page 20 Item SMS Number where will be sent SMS „ALARM ON” when input is activated Number where will be sent SMS „ALARM OFF” when input is deactivated Input mode: - Input deactivated - Tones when input is activated during a call (open signal) - sending SMS Sending SMS to ADMIN1 with list of numbers which activated...
  • Page 21 Item ADMIN numbers setting Field to save up to 7 ADMIN numbers...
  • Page 22 Item Service It is designed for upgrade of firmware and voice messages in GDI. CAUTION! Unauthorized manipulation can block the unit. List of files you want record to GDI (manually editable) Reading of list from PC List erasing Start of files saving from list to GDI.
  • Page 23 Return from programming mode to monitor mode (restart of GDI) To return to monitor mode (run GDI) click on button „Run“. Programs detects GDI runs the same way like stop: GDI behavior after restart is the same like during power supply connection (tones, eventually voice messages).
  • Page 24 Table of SMS commands command ( SMS) Functionality READ STAT Reading of GDI status (firmware, time, relays status etc.) READ PAR Reading of all setup parameters READ JMENO Reading of phone number for NAME CLR JMENO Erasing phone number for NAME INIT ADMIN1 +420cc…c...
  • Page 25 WRITE PAR TMGSM:x Time setup up GSM network x: 0 – OFF 1 - ON WRITE PAR TONE:x Setting of acoustic signalization x: 0 – switch OFF 1 – signaling by service tones 2 – ringing of incoming call is ON 4 –...
  • Page 26 WRITE PAR RL1TMON:yy Relay1 activation time after ringing in or by code yy seconds yy= 00-99 WRITE PAR RL1RING:x Relay1 activation by ringing in x=0 – OFF x=1 - ON WRITE PAR RL2COD:y Code for relay2 activation during call y=0-9 WRITE PAR RL2MOD:x Relay 2 modes x=0 –...
  • Page 27 CAL AT+CPBR=x Info about number saved on position x CAL AT+CCLK=“<time>“ Setup time in GDI <time> Format <time>= yy/MM/dd,hh:mm:ss±zz yy – year (00-99) MM – month (01-12) dd – day (01-31) hh – hours (00-23) mm – minutes (00 – 59) ss –...
  • Page 28 - relay1 or relay2 activated by ringing in - calls are automatically received from this number - to this number GDI call when down button is pressed (version with 2 BBUTTON1 buttons)
  • Page 29 - calls are automatically received from this number BBUTTON7 - to this number is called from GDI when number under BBUTTON6 is busy, unreachable, not picked up a call for certain time - relay1 or relay2 activated by ringing in...
  • Page 30 - to this number is send SMS „ALARM OFF“ when input is ALARMOFF deactivated - firmware version in GDI - just info – do not adjust! - GDI parameters PARGDI A#B#C#D#E#F#G#H (default 4#4#0#0#1#5#0#2) A – microphone sensitivity [1-7] B –...
  • Page 31 1 – when input is grounded beeps into call (signaling of opened door) 2 – SMS when input is activated/deactivated H - waiting to dial the next number on the list [1-9] value is in dozens of seconds - parameters for relay 1 PARRL1 A#B#CC#D (default 5#1#03#1)
  • Page 32 ALARMON, ALARMOFF, PARGDI, PARRL1, PARRL2 must be written by big letters. Between names and numbers is not a space GDI response for SMS „READ STAT“ READ STATUS: VER: 101 BATTERY:4030mV TIME: "00/01/01,00:01:55" OPER: T-Mobile CZ INP:1 RL1:0 RL1:0 GDI response for SMS „READ PAR“...
  • Page 33 GDI tones Except ordinary tones and signaling of GSM communication (ringing tone, busy tone, different provider´s messages) the GDI has own signaling of operation (via setting possibilities). High tone – Alerting      Medium level tone – verify action ...

  • Page 34: Led Signalling

    LED signalling  Permanent light    Red LED Not light  Not light   Flashing space and light same    duration  Yellow LED Short flashing with frequency 2 sec. ▌ ▌ ▌   Permanent light ...
  • Page 35 GDI with backup battery If you have already GDI with a backup battery in the delivery, pull out before operation insulating tape. Do not store the device with a battery pack without insulating tape! Self-discharge can damage the battery, not covered by the manufacturer's warranty.
  • Page 36 Inserting the backup battery: • Use only batteries approved by the manufacturer: Li-Ion 18650 2000-2600mAh • Observe the polarity (+ cap is insulated from the housing). Never insert the battery upside down! The device may be damaged. After inserting the battery, the red LED next to the switch must not light up (incorrect polarity)! Nejdříve na...

  • Page 37: Technical Parameters

    Technical parameters: Dimension 185 mm x 99 mm x 40 mm Operating position various temperature: -20 to + 50°C Operating condition humidity: 10% ÷ 80% from 30° C Power supply 12 (9-24) V AC/DC, 500mA (optionally integrated ACU 2000mAh for cca 48h of operation Buttons 1 or 2 up casing (for each button max 7 numbers...
  • Page 38 Alphatech spol. s r.o. Jeremenkova 88 140 00 Praha 4 tel. 244 461 016 e-mail: info@alphatech.cz internet: http://www.alphatech.cz naše souřadnice GPS (WGS 84) N 500235.5 E 142542.0 2.2.2024...
