5 DSP

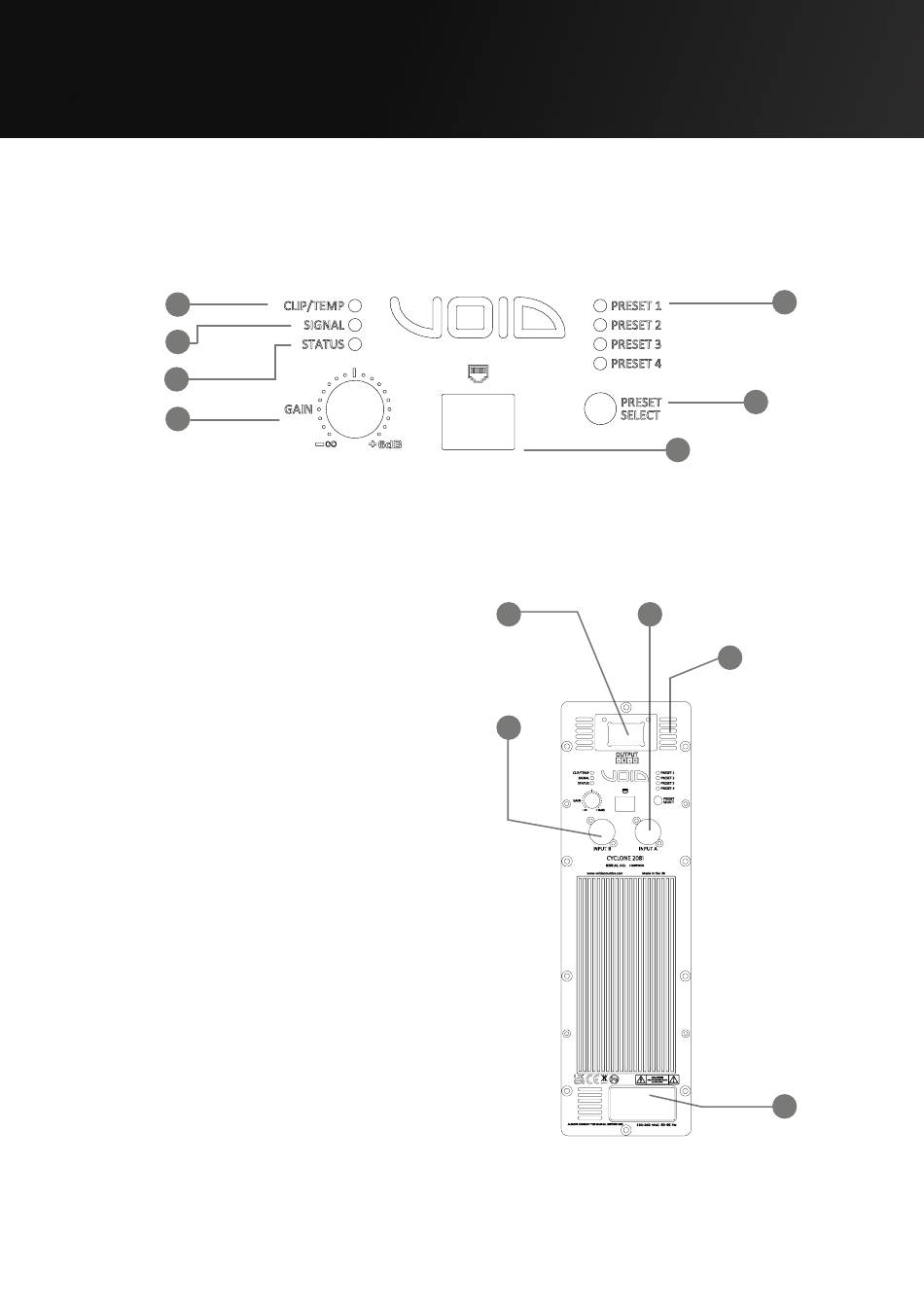

5.1 Cyclone 208i components
2
3
4
5
1. Preset LEDs
2. Signal clipping LED
3. Signal presence/limiting
LED
4. Status LED
5. Volume potentiometer
6. Ethernet connector
7. Preset select
8. Phoenix connector output
9. Combi Jack - XLR input
signal connector input A
10. Combi Jack - XLR input
signal connector input B
11. Air vent
12. IEC C13 power input
UG10916-1.0 - Cyclone 208i User Guide
Figure 5.1: LED panel
8
10
Figure 5.2: Rear panel
1
7
6
9
11
12
